X317-K4
X317-K4
- 4 AWG Amp Installation Kit for Select Can-Am® Maverick X3 Models (Gen-3)
- System features a plug and play design, does not require any cutting or drilling of vehicle, step by step install videos available.
PLEASE CALL FOR PRICING.
General Features
- Includes amplifier bracket
- Designed for use with 2-seat and 4-seat models
- 4 AWG wiring harness
- Designed for use with M5-1500X5 amplifier
- Pre-cut and loomed power/ground and speaker wire harnesses included
- 1 Year Warranty
- No drilling or cutting required
Technologies
Element Ready™ | Motorsports
All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.
IPX6 Water Intrusion Rating
Water projected in powerful jets from any direction shall have no harmful effects.
Adjust your own bright, wide, and limitless lighting experience with the Rockford Fosgate Color Optix™ plug-and-play controller and App (sold separately.)
Specifications
- Shipping Weight
- TBA Lbs (TBA Kg)

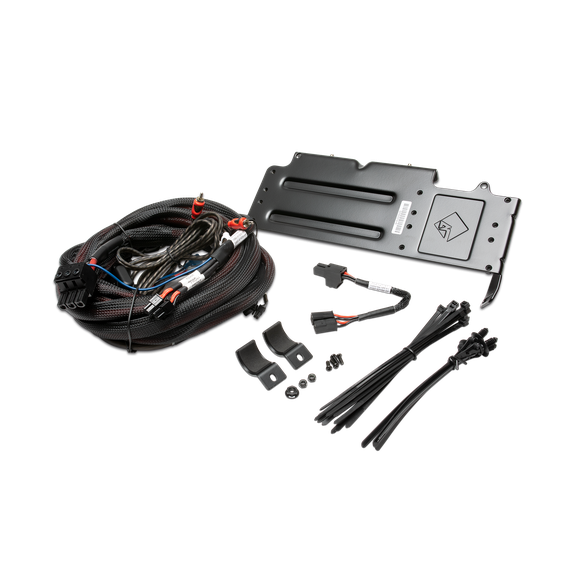

- Included In The Box
- (1) 8AWG Power and Ground Harness with included waterproof fuse
- (1) 17 thru current amp mounting plate
- (4) Amp mounting screws
- (4) Zip ties
Compatibility
LEGEND
YES Can-Am model IS compatible with kit |
NO Can-Am model NOT compatible with kit |
NOT AVAILABLE Can-Am model not produced this year |
|---|
FITMENT
YES  2-Seat |
YES 4-Seat |
YES Hi/Low Seat Level |
COMPATIBLE Front Window (remove to install speakers) |
POSSIBLE Rear Window (mount cans externally) |
POSSIBLE Snorkel (mount cans externally) |
|---|
MAVERICK X3 (2-SEAT)
| MODEL |
 2017 |
2018 |
2019 |
2020 |
2021 |
2022 |
|---|---|---|---|---|---|---|
| X3 900 HO [64] | — | ✔ | — | — | — | — |
| X3 Turbo [64] | — | ✔ | ✔ | ✔ | — | — |
| X3 Turbo R [64] | ✔ | ✔ | ✔ | — | — | — |
| X3 ds Turbo [64] | — | — | — | — | ✔ | ✔ |
| X3 ds Turbo R [64] | — | — | — | ✔ | ✔ | — |
| X3 ds Turbo RR 64 | — | — | — | — | — | ✔ |
| X3 rs Turbo R [72] | — | — | — | ✔ | — | — |
| X3 rs Turbo RR 72 | — | — | — | — | — | ✔ |
| X3 X ds Turbo R [64] | ✔ | ✔ | ✔ | — | — | — |
| X3 X ds Turbo RR [64] | — | — | — | ✔ | ✔ | ✔ |
| X3 X mr Turbo [64] ¹ | — | ✔¹ ³ | ✔¹ ³ | ✔¹ | ✔¹ | — |
| X3 X mr Turbo R [72] ¹ | — | ✔¹ ³ | ✔¹ ³ | — | — | — |
| X3 X mr Turbo RR 64 | — | — | — | — | — | ✔ |
| X3 X mr Turbo RR [72] | — | — | — | — | ✔ | ✔ |
| X3 X mr Turbo RR [72] ¹ | — | — | — | ✔¹ | ✔¹ | — |
| X3 X rc Turbo [64] | — | ✔ | ✔³ | ✔ | ✔ | — |
| X3 X rc Turbo R [72] ² | — | X² | X² | — | — | — |
| X3 X rc Turbo RR 64 | — | — | — | — | — | ✔ |
| X3 X rc Turbo RR [72] ² | — | — | — | X² | X² | X² |
| X3 X rs Turbo R [72] | ✔ | ✔ | ✔³ | — | — | — |
| X3 X rs Turbo RR [72] | — | — | — | ✔ | — | ✔ |
| X3 X rs Turbo RR Smart-Shox [72] | — | — | — | — | ✔ | ✔ |
MAVERICK X3 MAX (4-SEAT)
| MODEL |
2017 |
2018 |
2019 |
2020 |
2021 |
2022 |
|---|---|---|---|---|---|---|
| Maverick X3 MAX Turbo [64] | — | ✔ | ✔ | ✔ | — | — |
| Maverick X3 MAX Turbo R [64] | ✔ | ✔ | ✔ | — | — | — |
| Maverick X3 MAX ds Turbo [64] | — | — | — | — | ✔ | ✔ |
| Maverick X3 MAX ds Turbo R [64] | — | — | — | ✔ | ✔ | — |
| Maverick X3 MAX ds Turbo RR 64 | — | — | — | — | — | ✔ |
| Maverick X3 MAX rs Turbo R [72] | — | — | — | ✔ | ✔ | — |
| Maverick X3 MAX rs Tubro RR 72 | — | — | — | — | — | ✔ |
| Maverick X3 MAX X ds Turbo R [64] | ✔ | ✔ | ✔³ | — | — | — |
| Maverick X3 MAX X ds Turbo RR [64] | — | — | — | ✔ | ✔ | ✔ |
| Maverick X3 MAX X mr Turbo RR [72] ¹ | — | — | — | ✔¹ | ✔¹ | ✔¹ |
| Maverick X3 MAX X rs Turbo R [72] | ✔ | ✔ | ✔³ | — | — | — |
| Maverick X3 MAX X rs Turbo RR [72] | — | — | — | ✔ | ✔ | ✔ |
| Maverick X3 MAX X rs Turbo RR Smart-Shox [72] | — | — | — | — | ✔ | ✔ |
Charts contain newer naming convention — started in 2022 — featuring 64" and 72" width models. Older models denote [width] in name to clarify make/model/year progression.
1 Snorkel
prevents stages with rear moto-cans from being installed inside roll-cage, must be installed outside roll-cage.
2 Intrusion Bar
introduced in 2018, causes (FSE) front speaker clearance issue.
3 Smart-Lok™
introduced in 2018, requires 2nd (RFX317-FSE) or 3rd generation (X317-FSE) front speaker panels.
