TS-WX400DA

Store / Pioneer / Powered Subwoofer
C$399.99
In stock
Product Details

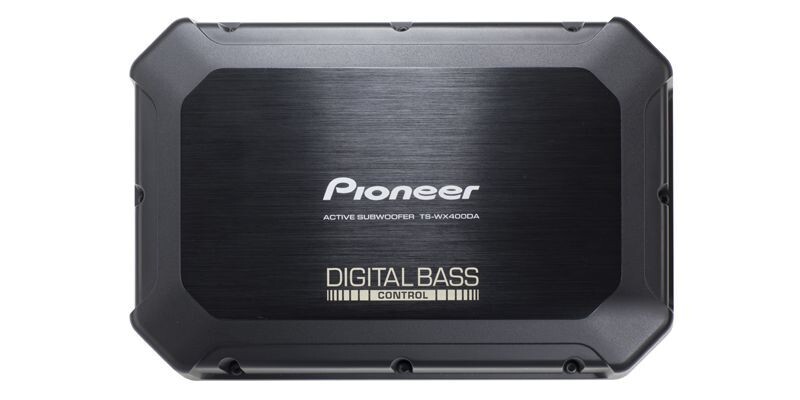

TS-WX400DA

  • 9" x 5-1/2" - 250w Max Power, Built-in Class-D Amplifier - Compact Active Subwoofer
    • 250 Watts Max Power
    • 100 Watts Nominal
    • High Power Built-in Class-D Amplifier
    • Selectable Bass Modes: DEEP and DYNAMIC
    • Compact Design
What’s in the Box
    • Powered subwoofer

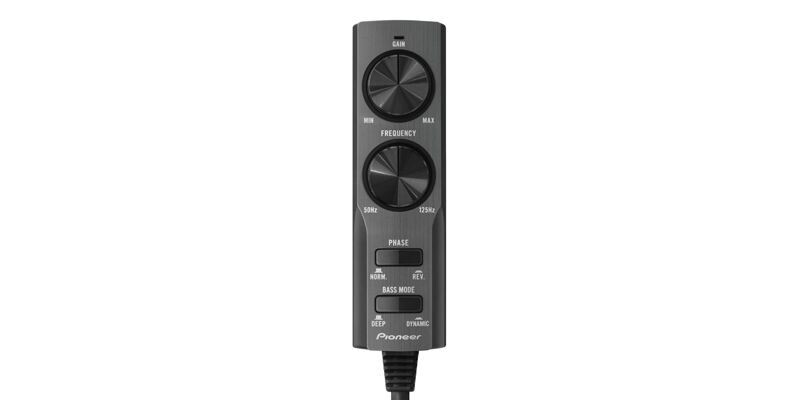

    • Wired remote control with attached 16.25' cable
    • 16.5' Power harness w/ inline 10A mini fuse (62" ground lead / 8" RCA input plugs)
    • 2 Mounting plates
    • 1 Cable strain-relief bar
    • Two 3/4" screws
    • Two 1/2" screws
    • Two 1/4" screws
    • 1-1/2" Hook-and-loop fastener pad
    • Instruction manual
    • Warranty sheet
Specifications

KEY FEATURES

System Type Powered
Frequency Range DEEP: 20 Hz to 100 Hz, DYNAMIC: 20 Hz to 100 Hz
Warranty 1 Year
Maximum Peak Power Handling - Watts 250 Watts
Amp Max Power Output 250 Watts
Input Level (@ Gain Max) RCA DEEP 85 mV+85 mV/22 kOhm, DYNAMIC 75 mV+75 mV/22kOhm
Power Source DC 14.4V
Amp Grounding Negative
Sensitivity (1W/1m) DEEP:72 dB, DYNAMIC:73 dB
CTA-2031 Compliant Yes

100 Watts
Built In Amp Yes
Amp RMS Output 100 Watts
Input Level (@ Gain Max) Speaker Line DEEP 1.9 V+1.9 V/5 kOhm, DYNAMIC 1.7 V+1.7 V/5kOhm
Amp Max Current Consumption 9.4 A


BUILD

Shape Special
Cone Material IMPP - Composite
Surround Material Urethane
Basket Material Stamped Metal
Magnet Weight 26.8 oz
Voice Coil Bobbin Kapton
Voice Coil wire Aramid
Size
 9" x 5-1/2"
Drive Cone Material ABS
Surround Type Rolled
Magnet Material Ferrite
Voice Coil Type Single Voice
Voice Coil Special Feature Copper


KNOWLEDGEBASE

Pioneer Self-Powered Subwoofer Lineup 2020
