TS-WX140DA

Store / Pioneer / Powered Subwoofer
C$379.99
In stock
Product Details

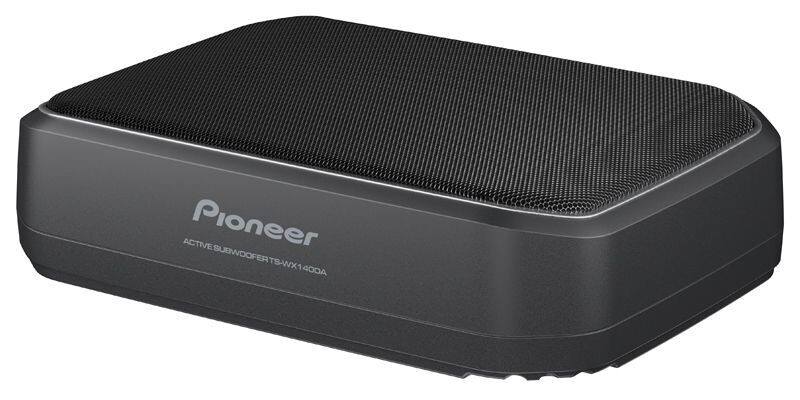

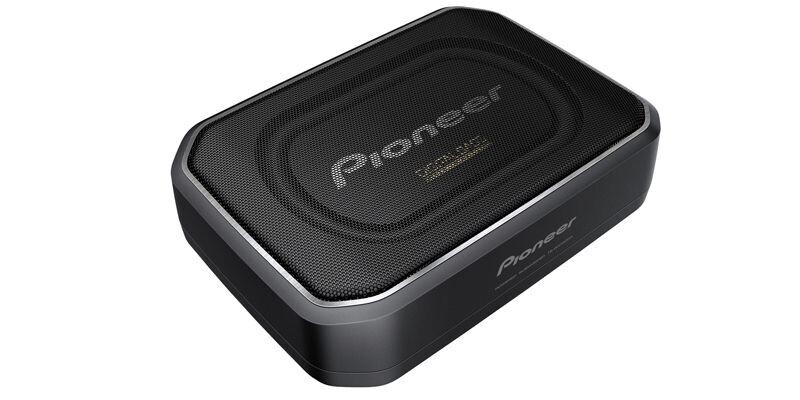

TS-WX140DA

  • 8" x 5-1/4" - Built-in 170w Output Class-D Amplifier - Compact Active Subwoofer
    • Aluminum Cone Designed for Compact Body
    • Built-In 170 Watts Output Class-D Amplifier
    • Digital Bass Control (Selectable Bass Mode: Deep, Dynamic, or Natural)
    • Wired Remote Control (Gain, LPF, Phase, Bass Mode)
What’s in the Box
    • Powered subwoofer
    • 10.5" RCA input harness (4-pin Molex plug/2 female RCAs)
    • Power harness with 16.5' power and remote turn-on leads and 6' ground wire (3-pin Molex plug)
    • 10A ATO fuse in fuse holder (installed on power wire)

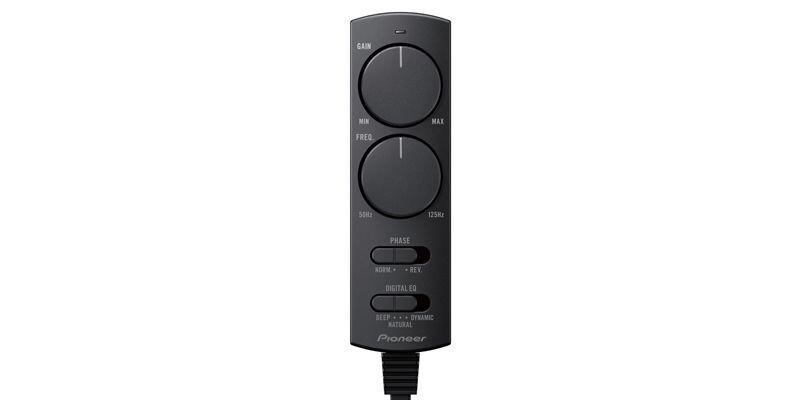

    • Wired Digital Bass Control with attached 16.25' cable (RJ-45 plug)
    • 2 Mounting feet
    • Cable clamp
    • 2 Self-tapping screws (M5 x 18mm)
    • 2 Machine screws (M5 x 14mm)
    • 2 Machine screws (M3 x 8mm)
    • Adhesive backed hook-and-loop pad
    • Instruction Manual
    • Warranty sheet
Specifications


KEY FEATURES

System Type Powered
Frequency Range DEEP: 20 Hz to 200 Hz / DYNAMIC: 40 Hz to 160 Hz / NATURAL 40 HZ to 200 Hz

50 Watts

Fully Covered Steel Mesh Grille
Amp Max Power Output 250 Watts

DEEP: 95 dB / DYNAMIC: 100 dB / NATURAL 98 dB
Warranty 1 Year
Maximum Peak Power Handling - Watts 170 Watts
Built In Amp Yes
Amp RMS Output 50 Watts


SUBWOOFER DESIGN

Shape Oval
Cone Material Cellulose fiber
Surround Material Urethane
Basket Material Iron Plate Press
Magnet Weight 17.2 oz
Voice Coil Bobbin Glass imide
Damper Aramid
Size
 8" x 5-1/4"
Drive Cone Material Aluminum
Surround Type Rolled
Magnet Material Ferrite
Voice Coil Type Single Voice
Voice Coil Special Feature Copper



Show More
