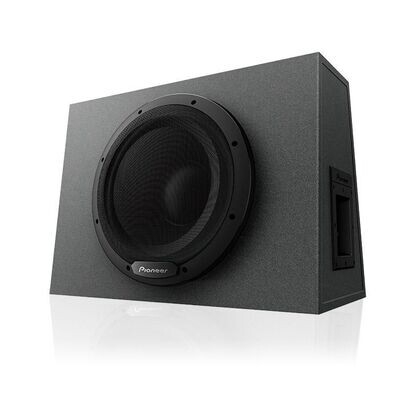

TS-WX1210A
+2

TS-WX1210A

Store / Pioneer / Powered Subwoofer
C$327.99
In stock
Product Details

TS-WX1210A

  • 12" - 1200w Max Power, Built-In 350w Output Amplifier - Sealed Subwoofer
    • 1,300 Watts Max Power. (350 Watts Nom.)
    • Built-In 350 Watts Output Class-D Amplifier
    • Variable Bass Boost (0 to +12 dB, 40Hz to 100Hz)
    • Wired Remote Bass Control & Gain Control at Side Panel
What’s in the Box
    • TS-WX1010LA Sealed Active Subwoofer
    • 2 Mounting Brackets
    • 8 (M5 x 25mm) screws
    • 1 Wired Remote Bass Controller Knob
    • 1 Power Terminal Connector
    • 1 20A ATO fuse in holder (installed on power wire)
    • Installation Manual
    • Warranty Sheet
Specifications

KEY FEATURES

System Type Powered
Frequency Range 20 Hz to 125 Hz

350 Watts

Fully Covered Steel Mesh Grille
Bass Boost Level 0 to +12 dB

300 Watts

100mV+100mV/22kOhm
Power Source DS 14.4 V
Amp Grounding Negative
Sensitivity (1W/1m) 114 dB

1 Year

1300 Watts
Bass Boost Frequency 40Hz to 100Hz
Built In Amp Yes
Amp RMS Output 150 Watts
Input Level (@ Gain Max) Speaker Line 2V+3V/5kOhm
Amp Max Current Consumption 13 A


BUILD

Shape Round
Cone Material Cellulose fiber
Surround Material Urethane
Basket Material Stamped Metal
Magnet Weight 33.5 oz
Voice Coil Bobbin Polyimide
Damper Aramid
Size
 12"
Center Cap Material PP

Rolled
Magnet Material Ferrite
Voice Coil Type Single Voice
Voice Coil wire Copper
Gasket ABS
