T2S1-13
T2S1-13

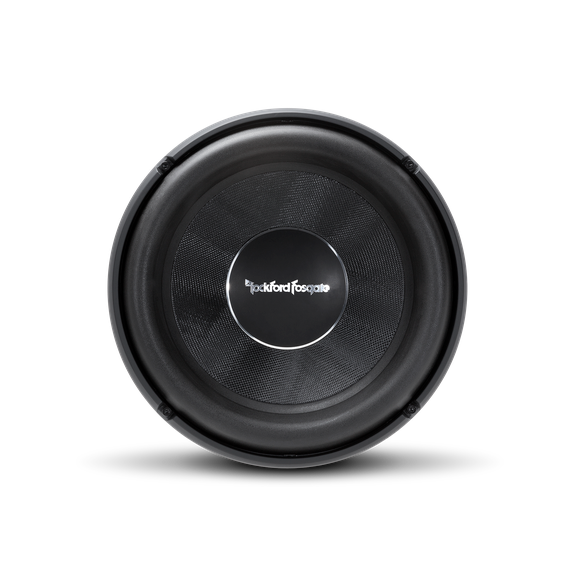

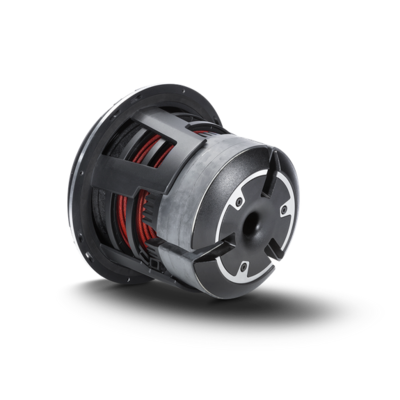

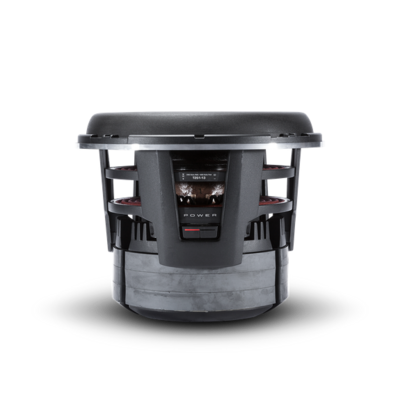

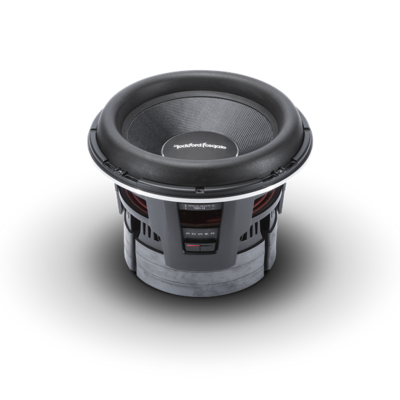

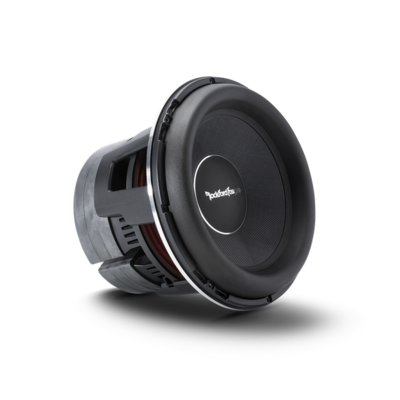

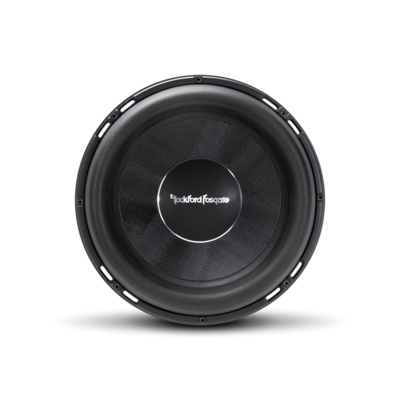

- Power 13" T2 Single 1-Ohm Subwoofer
- This subwoofer is not just another made with off-the-shelf parts, we wanted something better, and we knew our fanatics demand this as well. Since the original Power T2 subwoofer was designed by one of the leading loudspeaker engineers in the world, there were some lofty goals that had to be reached. Work was done from the ground-up to out-perform it's previous family members, while incorporating valuable feedback from our great network of Rockford Fosgate dealers. They wanted it bigger and badder with dual everything, and we feel that goal was crushed.
Why 13-inches? Well, this is a combination of the cone and surround assembly described as the "total effective radiating area". Since this model is so massive, we incorporated dual spiders for exceptional travel of the cone assembly. The motor structure operates very linear for exceptional sonic quality and the IDHS heat-sink gives the subwoofer impressive power handling capacity. Top it off with proprietary input terminals for large gauge cables to efficiently deliver the needed voltage, and this subwoofer is ready to drop the doom!
WARNING: Use caution when installing this subwoofer. It's heavier than Atlas holding a globe on his shoulders.
- This subwoofer is not just another made with off-the-shelf parts, we wanted something better, and we knew our fanatics demand this as well. Since the original Power T2 subwoofer was designed by one of the leading loudspeaker engineers in the world, there were some lofty goals that had to be reached. Work was done from the ground-up to out-perform it's previous family members, while incorporating valuable feedback from our great network of Rockford Fosgate dealers. They wanted it bigger and badder with dual everything, and we feel that goal was crushed.
PLEASE CALL FOR PRICING.
General Features
- Three layer glass fiber/Aramid honeycomb/Glass fiber cone
- Aluminum dustcap
- Dual Nomex progressive spiders with integrated lead wires
- Injection molded foam surround with VAST™
- Detachable die cast aluminum trim ring
- Vented pole piece
- Integrated aluminum heat sinking shorting ring (IDHS)
- Proprietary surround mechanical clamping ring
- Custom push spring insulated 8 AWG terminals
- Aluminum diecast frame with integrated heat sink fins
- Single layer edge wound aluminum 4" voice coil
- 1 Year Warranty
- Triple stack segmented ferrite motor structure
Technologies
CEA-2031
Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.
Inductive Damping Heat Sink
Secures directly to the top of magnet structure to improve system efficiency by reducing both distortion and back EMF (Electo-Magnetic force). Also radiates heat to reduce voice coil temperature.
Klippel Verified
Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.
VAST Surround - Subs
The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%.
FlexFit Basket - Subwoofer
The slot mounted frame pattern allows fine-tuning of the subwoofer's mounting position.
Anodized Aluminum Voice Coil Former
Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide superior heat dissipation (up to 100° at full power levels). Unlike traditional plastic substitutions, aluminum acts like a heat-sink to quickly dissipate thermal build-up on the voice coil. This keeps subwoofers cool during high SPL conditions.
Improved reliability and performance by reducing fatigue and possible shorting.
Specifications
- Power Handling (Watts RMS)
- 2000 Watts RMS
- 4000 Watts Max
- Size
- 13"
- CEA-2031 Compliant
- Nominal Impedance
- 1-Ohm
- Subwoofer Type
- Standard
- Voice Coil Diameter
- 3.96" (100 mm)
- Speaker Connector
- 8 AWG slot loaded
- Voice Coil Type
- Single Voice Coil
- Vas (Liters)
- 69.3
- Fs (Hz)
- 25
- Qms
- 2.93
- Qes
- 0.39
- Qts
- 0.34
- Re (Ohms)
- 0.9
- Le (mH)
- 0.53
- Sd (cm2)
- 707
- SPL (dB @ 1w/1m)
- 87
- SPL (dB @ 2.8v/1m)
- 90
- Xmax (mm)
- 34
- Magnet Weight (oz)
- 528 oz. (14.97 Kg)
- Cutout Diameter
- 12.28 in. (312 mm)
- Mounting Depth
- 9.70 in. (246 mm)
- Woofer Displacement
- 0.250 cu. ft. (7.08 Liters)
- Sealed Box Volume (Vb)
- 1.85 cu. ft. (52.3 Liters)
- Vented Box Volume (Vb)
- 4.0 cu. ft. (113 Liters)
- Shipping Weight
- 93.70 Lbs. (42.5 Kg.)
Support
Return Authorization
Contact the Authorized Rockford Fosgate Dealer you purchased this product from. If you need further assistance, call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.
Wiring Wizard
Available Wiring Diagrams
Please consult your amplifier owner's manual for lowest recommended impedance.
Wiring Diagram #1
Wiring Diagram #2
Wiring Diagram #3
Wiring Diagram #4
Wiring Diagram #5
Wiring Diagram #6
Wiring Diagram #7
Speaker Polarity
Your woofer may use one of the following to identify (+/-) terminals.
Positive +
Red Post
Purple (4Ω)
Red (8Ω)
Negative -
Black Post
No Dot
No Dot
