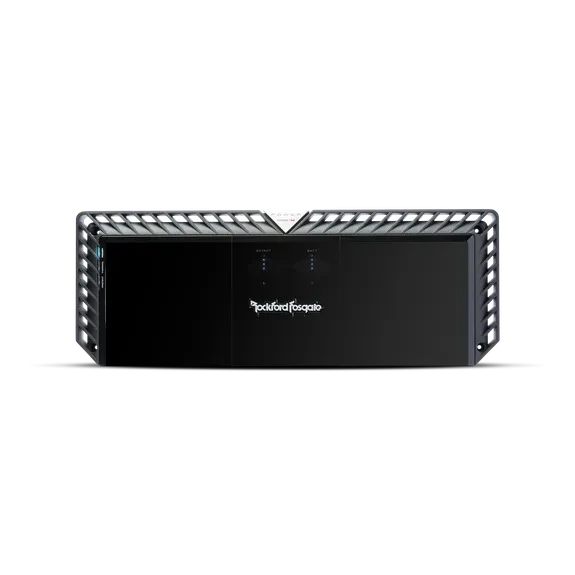

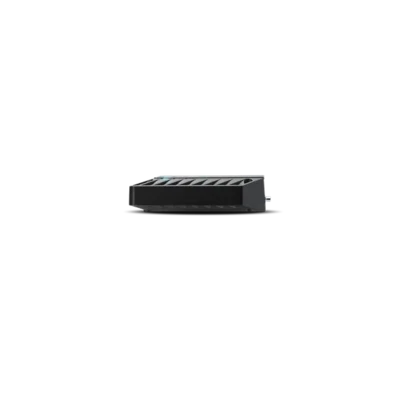

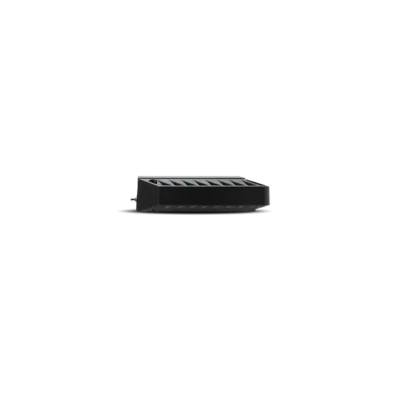

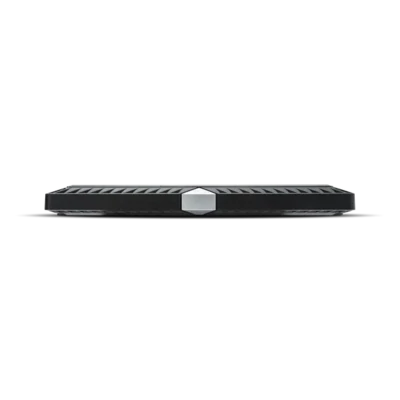

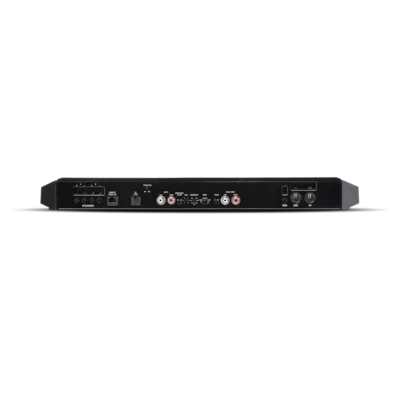

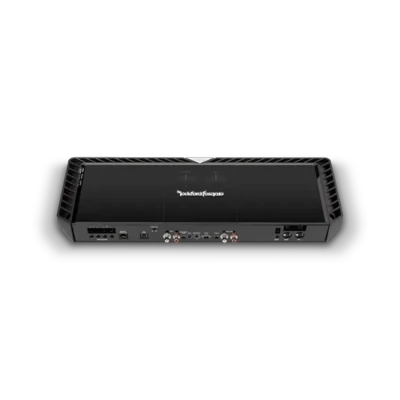

T2500-1BDCP
T2500-1BDCP
- Power 2500 Watt Class-bd Constant Power Amplifier
- The T2500-1bdCP is based on the legendary T2500-1bd amplifier design with a proprietary "Constant Power" configuration that delivers up to 25% more power (Watts) across all impedance loads. The result is a listening experience cleaner, louder and more impressive than ever before. This T2500-1bdCP amplifier pumps out 2,500 watts, easily driving any array of woofers wired to a 1-ohm load. Use two amps in Power-Sync mode for a whopping 5,000 watt power horse!
-
PLEASE CALL FOR PRICING.
General Features
- MOSFET power supply
- Audiophile grade speaker connections
- 24dB/octave crossover
- 1/0 AWG power/ground connectors
- RCA pass-thru outputs
- Infrasonic filter
- MOSFET output stage
- PowerSync - allows 2 amplifiers to be "strapped" together
- 0°/180° Phase Switch
- Blue L.E.D. Simulated VU Signal/Power Meters
- MasterSync - allows 1 amplifier to control an array of amplifiers
- 2-Year Warranty
Specifications
- Cta-2006 Compliant
- Number of Channels
- 1
- Total Power (Sum of Rated Power)
- 2500 Watts RMS
- Rated Power (RMS Continuous Power)
- 1500 Watts x 1 @ 4-Ohm
- 2500 Watts x 1 @ 2-Ohm
- 2500 Watts x 1 @ 1-Ohm
- Two amplifiers in bdSYNC: 5000 Watts x 1 @ 2-Ohm
- Dynamic Power (PVC/PowerCube®)
- 1823 Watts x 1 @ 4-Ohm
- 2940 Watts x 1 @ 2-Ohm
- 2980 Watts x 1 @ 1-Ohm
- Bridgeable
- Yes (two amps can be "strapped" together using bd-Sync2 cable to create one monster amplifier)
- Frequency Response
- 20Hz to 250Hz +/-0.5dB
- Input Sensitivity
- 150 mV to 4 V
- Circuit Topology Class
- Class BD
- Efficiency (average)
- 81.9% @ 4-Ohm
- 77.7% @ 2-Ohm
- 64.5% @ 1-Ohm
- Total Harmonic Distortion (THD+Noise)
- 4-Ohm: <1.0%
- 2-Ohm: <1.0%
- 1-Ohm: <1.0%
- Signal Input
- 1 RCA pair
- Signal Output
- 1 RCA pair
- Tone Controls
- Bass: 0dB to +18dB @ 45Hz
- Crossover Control
- Low-Pass (LP): 35Hz-250Hz @ 24dB/octave Butterworth
- Infrasonic: 12dB/octave Butterworth, -3dB @ 28Hz
- Remote Controls
- Optional Remote PEQ (overrides built-in Punch Bass)
- Visual Indicators
- Power (Blue LED)
- Thermal (Red LED)
- Protect (Yellow LED)
- Output -00dB to +2dB @ 11 steps (Blue LEDs)
- Battery 9VDC to 16VDC @ 11 steps (Blue LEDs)
- Power Wire Gauge
- 1/0 AWG
- Power Input Connector
- Block
- Speaker Wire Gauge
- 8 AWG to 16 AWG
- Speaker Output Connector
- Block
- Cooling
- Convection
- Heatsink
- Operating Voltage
- 9 - 16 VDC
- Recommended Fuse (not included)
- 300 A
- Average Current Draw (13.8V Music)
- 175 A
- Max. Current Draw (13.8V Sinewave)
- 350 A
- Suggested Alternator
- 200 A
- Dimensions (H x W x D)
- 2.14 x 8.14 x 21.875 (in)
- 5.44 x 20.68 x 55.66 (cm)
- Shipping Weight
- 21.7 Lbs. (9.84 Kg.)
Support
Knowledge Base Articles
- RFI2SW & RFIF2SW Speaker Line To RCA Adapter - product advisory
- 2010 Power Mono Amps (Constant Power) - owner's manual
Show all Knowledge Base topics
Ask Our Experts
Return Authorization
Contact the Authorized Rockford Fosgate Dealer you purchased this product from. If you need further assistance, call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.
Wiring Wizard
Please consult your amplifier owner's manual for lowest recommended impedance.
The below diagrams optimize this amp for optimum power into a MONO load.
Wiring Diagram #1
Wiring Diagram #2
Wiring Diagram #3
Wiring Diagram #4
Wiring Diagram #5
Wiring Diagram #6
Wiring Diagram #7
Wiring Diagram #8
Wiring Diagram #9
Wiring Diagram #10
Wiring Diagram #11
Speaker Polarity
Your woofer may use one of the following to identify (+/-) terminals.
Positive +
Red Post
Purple (4Ω)
Red (8Ω)
Negative -
Black Post
No Dot
No Dot
Technologies
Power ratings on Rockford Fosgate amplifiers conform to CTA-2006 industry standards. These guidelines mean your amplifier's ...
Class-BD amplifiers have 75-80% efficiency ratings vs. 20-60% efficiency ratings of traditional Class-A/B amplifiers.
Constant Power is a patented circuit topology that provides instantaneous delivery of output power over varying ...
Differential inputs eliminate noise picked up by signal cables.
DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and ...
MEHSA3 reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.
Onboard equalizer with up to +18dB @ 45Hz.
These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered ...
(left-OLD | right-NEW)
Rockford Fosgate amps use custom TO-247 MOSFETs. These have 60% more ...
