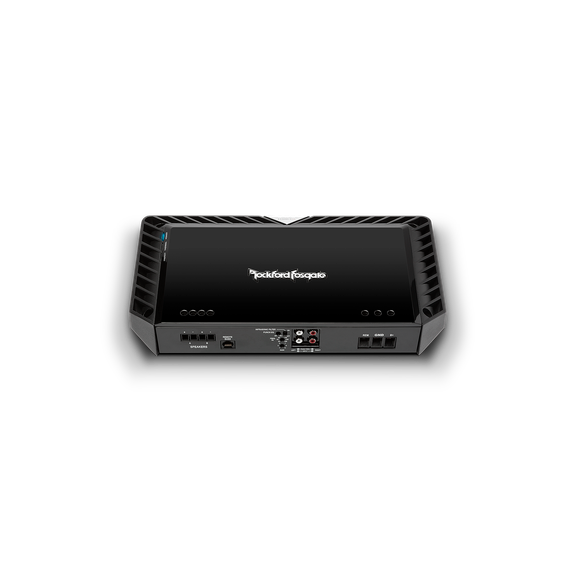

T1500-1bdCP
T1500-1BDCP
- Power 1,500 Watt Class-bd Constant Power Amplifier
- The new Constant Power amplifiers are the most powerful amplifiers on the market PERIOD! The T1500-1bdCP is an amplifier for subwoofers based on the legendary T1500-1bd amplifier design with a proprietary "Constant Power" configuration delivering up to 25% more power (Watts) across all impedance loads. The listening experience is cleaner, louder and more impressive than ever before. At 1,500 watts, this monster will run any demo vehicle competing in Sound Pressure Level.
PLEASE CALL FOR PRICING.
General Features
- MOSFET output stage
- Audiophile grade speaker connections
- 4 Gauge power/ground connectors
- 24dB/octave crossover
- Infrasonic filter
- MOSFET power supply
- RCA pass-thru outputs
- 2-Year Warranty
Technologies
CTA-2006 Compliant
Power ratings on Rockford Fosgate amplifiers conform to CTA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
Class-BD
Class-BD amplifiers have 75-80% efficiency ratings vs. 20-60% efficiency ratings of traditional Class-A/B amplifiers.
Constant Power
Constant Power is a patented circuit topology that provides instantaneous delivery of output power over varying impedance loads.
Balanced Differential Inputs
Differential inputs eliminate noise picked up by signal cables.
DSM
DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.
MEHSA3
MEHSA3 reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.
Punch Bass EQ
Onboard equalizer with up to +18dB @ 45Hz.
TO-247 MOSFETs
(left-OLD | right-NEW)
Rockford Fosgate amps use custom TO-247 MOSFETs. These have 60% more metal tab area for more power capacity, lower impedance and improved heat dissipation over traditional TO-220 MOSFETs found in competitor amps.
Engineered In The USA
These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.
Specifications
- Cta-2006 Compliant
- Number of Channels
- 1
- Total Power (Sum of Rated Power)
- 1500 Watts RMS
- Rated Power (RMS Continuous Power)
- 1000 Watts x 1 @ 4-Ohm
- 1500 Watts x 1 @ 2-Ohm
- 1500 Watts x 1 @ 1-Ohm
- Dynamic Power (PVC/PowerCube®)
- 1045 Watts x 1 @ 4-Ohms
- 1549 Watts x 1 @ 2-Ohms
- 1715 Watts x 1 @ 1-Ohm
- Bridgeable
- No
- Frequency Response
- 20Hz to 250Hz +/- 0.5dB
- Input Sensitivity
- 150 mV to 4 V
- Circuit Topology Class
- Class BD
- Efficiency (average)
- 86.2% @ 4-Ohm
- 74.6% @ 2-Ohm
- 63.0% @ 1-Ohm
- Total Harmonic Distortion (THD+Noise)
- 4-Ohm: <1.0%
- 2-Ohm: <1.0%
- 1-Ohm: <1.0%
- Signal Input
- Low level: 1 RCA pair
- Signal Output
- Low Level: 1 RCA pair
- Tone Controls
- Bass: 0dB to +18dB @ 45Hz
- Infrasonic Filter: -3dB @ 28Hz 12dB/Octave
- Crossover Controls
- Low-Pass (LP): 35-250Hz 24dB/octave Butterworth
- Remote Controls
- Optional Remote Punch Bass EQ (overrides built-in Punch Bass EQ)
- Visual Indicators
- Power
- Thermal
- Protect
- Power Wire Gauge
- 4 AWG
- Power Input Connector
- Block
- Speaker Wire Gauge
- 8 AWG to 18 AWG
- Speaker Output Connector
- Screw terminal barrier strip
- Cooling
- Convection
- Heatsink
- Operating Voltage
- 9 - 16 VDC
- Recommended Fuse (not included)
- 200 A
- Average Current Draw (13.8V Music)
- 100 A
- Max. Current Draw (13.8V Sinewave)
- 200 A
- Suggested Alternator
- 100 A
- Included In The Box
- Dimensions (H x W x D)
- 2.14 x 8.14 x 14.91 (in)
- 5.42 x 20.68 x 37.86 (cm)
- Shipping Weight
- 14.35 Lbs. (6.50 Kg.)
Support
Knowledge Base Articles
- RFI2SW & RFIF2SW Speaker Line To RCA Adapter - product advisory
- 2010 Power Mono Amps (Constant Power) - owner's manual
Show all Knowledge Base topics
Ask Our Experts
Return Authorization
Contact the Authorized Rockford Fosgate Dealer you purchased this product from. If you need further assistance, call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.
Wiring Wizard
Please consult your amplifier owner's manual for lowest recommended impedance.
This amplifier produces the same output power into a 2-Ohm load or 1-Ohm load.
Wiring Diagram #1
Wiring Diagram #2
Wiring Diagram #3
Wiring Diagram #4
Wiring Diagram #5
Wiring Diagram #6
Wiring Diagram #7
Wiring Diagram #8
Wiring Diagram #9
Wiring Diagram #10
Wiring Diagram #11
Speaker Polarity
Your woofer may use one of the following to identify (+/-) terminals.
Positive +
Red Post
Purple (4Ω)
Red (8Ω)
Negative -
Black Post
No Dot
No Dot
