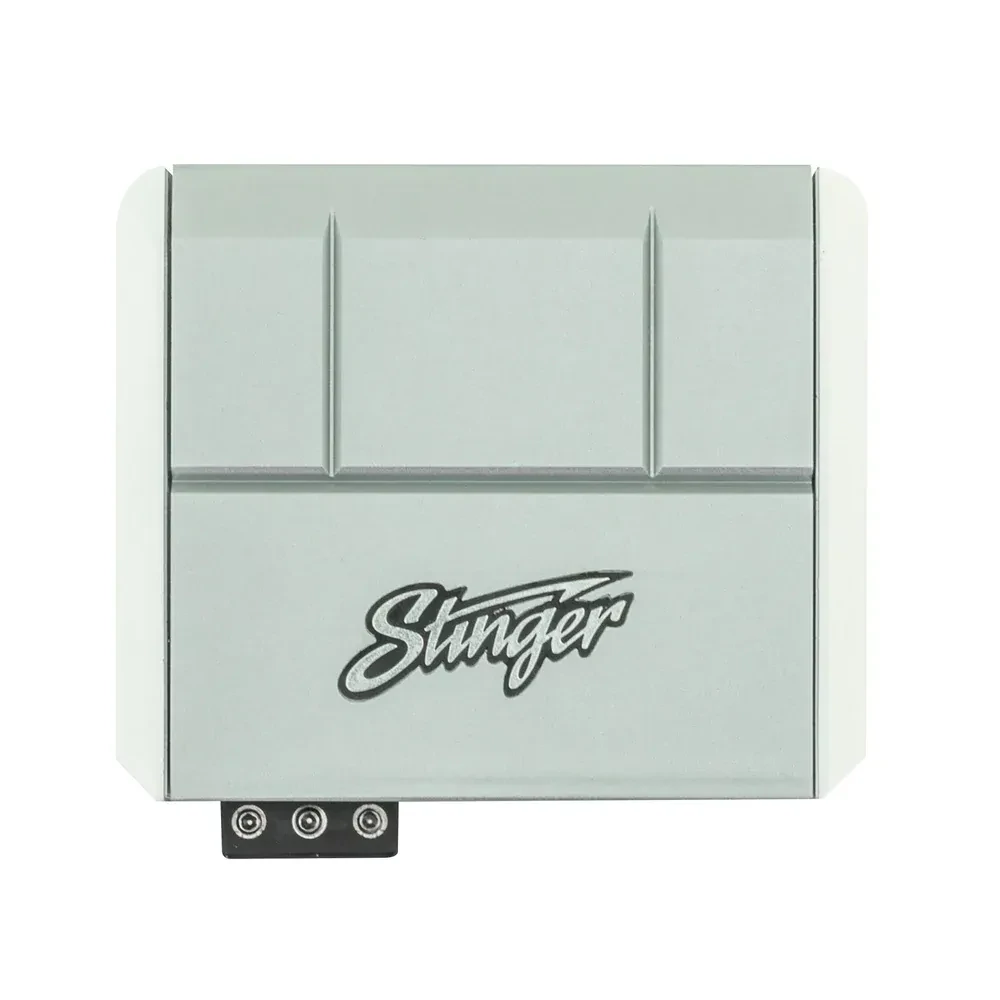

STINGER - SPX350X2
- MICRO 2 CHANNEL 350 WATT POWERSPORTS AMPLIFIER
General Features
Compact weather-resistant amplifier delivers massive power with minimal size, extreme durability built to withstand the harsh environments you'll meet on the sea, lake, or wherever your water adventure takes you.
- Target Voltage: 8-16 Volts
- 350x1 at 4 Ohm 175x2 at 2 Ohm 125x2 at 4 Ohm
- Perfect for motorcycles, ATV, marine and mobile applications
- Small footprint with a low profile
- IPX-4/5 weather-resistant design
- Full range Class D
- Unregulated power supply
- Aux RCA output (to link to additional amplifiers)
- Diecast endcaps with removable mounting feet
- Volume control with mute function
- Stream Bluetooth directly to the amplifier with a ISBT23 Weather Proof BT receiver with 4v output
- Robust 16 gauge Marine Grade harness with quick connectors for seamless installation
RMS Power (14.4Vdc ≤1% THD):
125 x 2 @ 4 ohm Stereo
175 x 2 @ 2 ohm Stereo
350 x 1 @ 4 ohm Bridged
Lowest Recommended Load: 4 ohm Bridged or 2 ohm Stereo
Specifications
Frequency Response: ± 1dB from 20Hz to 20kHz
Signal to Noise Ratio: >110dB
High and Low Pass Crossovers: 12dB per Octave
Low Pass Crossover Range: 40Hz to 400Hz
High Pass Crossover Range: 40Hz to 400Hz
Input Range: 200 millivolts to 12 volts
Typical Efficiency: 80%
Damping Factor: Greater than 200
Recommended Fuse Size: 30 amp
Power/Ground Wire Size: 8 Gauge
Dimensions: 141mm L x 120mm W x 41mm
H 5.56” L x 4.73” W x 1.6” H
Manual
