SOUNDSTREAM - RN1.5000D Amplifier
SOUNDSTREAM - RN1.5000D Amplifier
- Rubicon Nano Series Class D Monoblock Amplifier
PLEASE CALL FOR PRICING.
Description

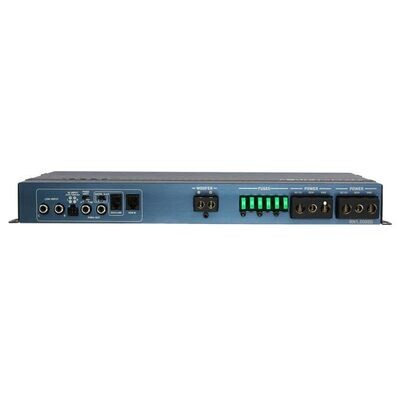

We’ve adopted the most optimum Class D performance, reliability, and smaller footprint platform for the Rubicon Nano series amplifiers and present to you Rubicon Nano. At first glance, you’ll notice several key improvements; Rubicon Nano’s signal inputs, power/ground, and speaker connections are all relocated to the leading edge of the chassis for an easier, more attractive install. All pre-amp & crossover options are appropriately located on the top surface, making adjustments after installation conceivable. You might not notice embellishments to the circuit board, including increased power supply & output stage components & Monoblock bridging capability.
Are you using an original or factory radio? No problem, these amplifiers are equipped with an Automatic Hi-Level Signal Sensing Turn-On. There is no need to run a remote wire turn on; this amplifier will automatically detect the sound signal and turn on and off the amplifier. (Hi-Level Input only)
Specifications
| SPECIFICATIONS | RN1.5000D |
|---|---|
| Max Power | 5,000 Watts |
| RMS Power @ 4Ω | 1,000W x 1 |
| RMS Power @ 2Ω | 1,500W x 1 |
| RMS Power @ 1Ω | 2,500W x 1 |

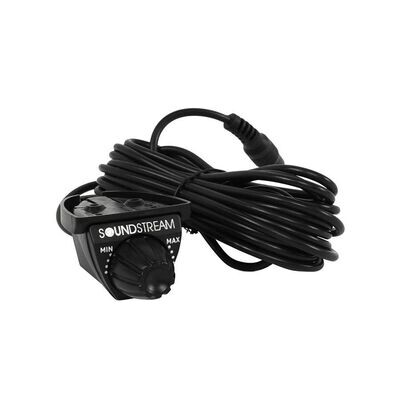

| Remote Gain Control | Included |
| Low Pass Filter | 50Hz-500Hz |
| High Pass Filter | N/A |
| Bass Boost | 0-12dB |
| Bass Boost Frequency | 45Hz |
| Subsonic Filter | 20Hz-50Hz |
| Frequency Response | 20Hz-50Hz |
| S/N | 104dB |
| Input Sensitivity | 200Mv-6V |
| THD | <0.1% |
| Operation Voltage | 9V-16V DC |
| Fuse Rating | 30A x 6 |
| Dimensions (8.25″W x 2.75″H) |
17.75″ L |
Support
Rubicon Nano Owners Manual [PDF]
