ROCKFORD FOSGATE - TMS57
ROCKFORD FOSGATE - TMS57

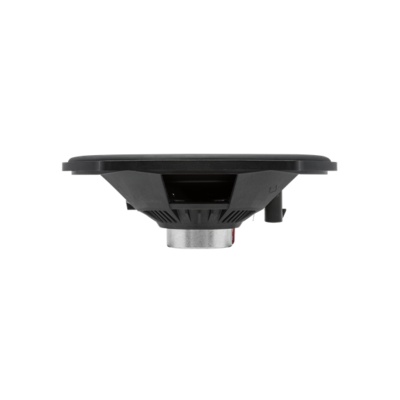

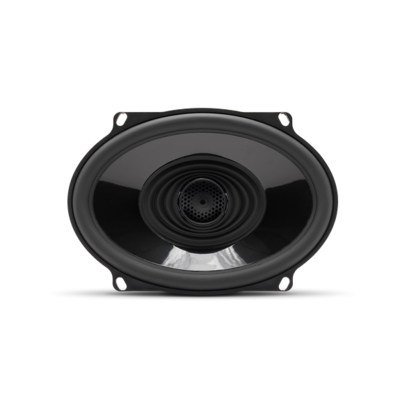

- Power 5"X7" Harley® Replacement Bag Lid Speakers

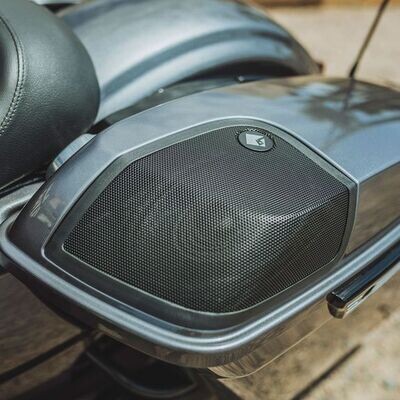

- Power 5"x7" Harley® Replacement Bag Lid Speakers The TMS57 full range coaxial speaker is designed to replace existing 5"x7" speakers in factory equipped Harley-Davidson® BOOM!™ Audio and BOOM!™ Audio Stage-I bag lids. See Specifications tab for motorcycle compatibility.
General Features
- Element Ready design that is weather and water resistant
- Carbon Fiber Reinforced Polypropylene Cone
- Poly‐Cotton Spider
- Santoprene Front Isolation Spider
- Ultra‐Efficient Neodymium Dual Magnet Motor Structure
- Santoprene VAST Surround
- Co‐Molded Cone and Surround
- High Power 35mm Voice Coil
- Integrated 6dB Crossover with High Power Polyester Capacitor

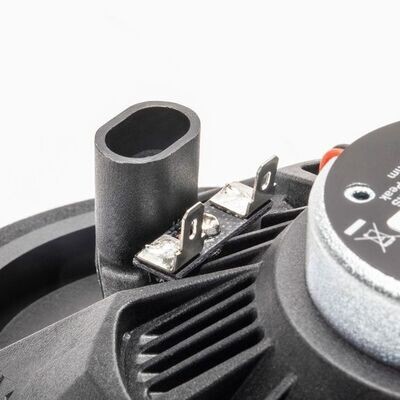

- Integrated Spade Terminals
- Ultra‐High Temperature Glass Reinforced Polymer Frame
- Ultra-Efficient 25mm Proprietary Film Dome Tweeter
- Neodymium Tweeter with Integrated Phase Plug and ASA Grill
- Low Profile Coaxial Tweeter Design
- Factory H-D® connector for plug-n-play operation
- Includes Self-Adhesive Aluminum Diamond-R Badges
- Discreet (Hidden) Tweeter Wire
- 2-Year Warranty
Technologies
Element Ready™ | Motorcycle
All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.
CEA-2031 (speakers)
Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.
The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%.
Specifications
- CEA-2031
- Midrange Size (Nominal Diameter)
- 5" x 7"
- Speaker Type
- 2-Way
- Midrange Mounting Depth
- 2.2" (55 mm)
- Impedance
- 4Ω
- Frequency Response
- 61 Hz - 20 kHz
- Power Handling
- 100 Watts RMS
- Sensitivity
- 89 dB (1w/1m)
- 92 dB (2.8V @ 1m)
- Grille/Trim Ring Included
- No
- Mounting Hardware
- Yes

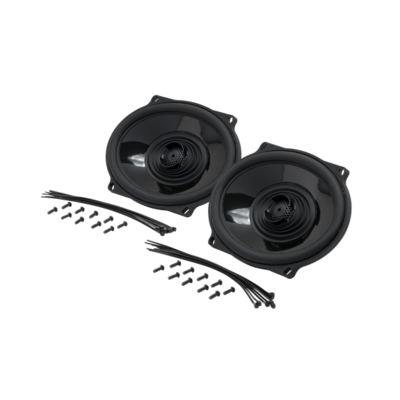

- Included In The Box
- (2) TMS57
- (2) Aluminum Diamond-R Badges
- Shipping Weight
- 2.95 Lbs. (1.34 Kg)
Compatibility
| YEAR | MAKE | MODEL | OPTION |
|---|---|---|---|
| 2014 - Current | Harley-Davidson® | Electra Glide | Boom!™ Audio Stage-I Saddlebag Speaker |
| 2014 - Current | Harley-Davidson® | Ultra Limited | Boom!™ Audio Stage-I Saddlebag Speaker |
| 2014 - Current | Harley-Davidson® | Street Glide | Boom!™ Audio Stage-I Saddlebag Speaker |
| 2014 - Current | Harley-Davidson® | Road Glide | Boom!™ Audio Stage-I Saddlebag Speaker |
| 2006 - 2013 | Harley-Davidson® | Road King | Boom!™ Audio Saddlebag Speaker |
| 2006 - 2013 | Harley-Davidson® | Electra Glide | Boom!™ Audio Saddlebag Speaker |
| 2006 - 2013 | Harley-Davidson® | Street Glide | Boom!™ Audio Saddlebag Speaker |
| 2006 - 2013 | Harley-Davidson® | Road Glide | Boom!™ Audio Saddlebag Speaker |
* NOTE: This is NOT compatible with Boom!™ Audio Stage-II systems.
