ROCKFORD FOSGATE - TMS5
ROCKFORD FOSGATE - TMS5
- 1998 - 2013 Tour-Pak 5.25” 2-Way Speaker W/ Tweeter

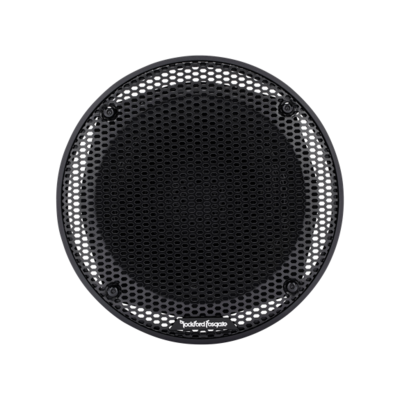

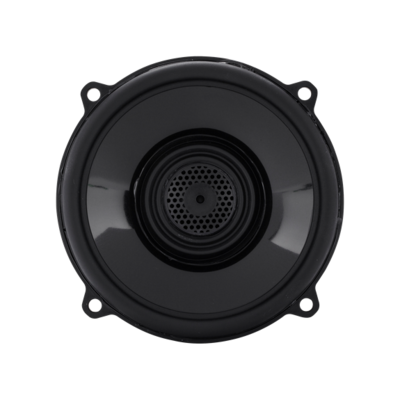

- The TMS5 full range coaxial speaker is designed for direct fitment applications in 1998-2013 Harley-Davidson® motorcycles in the Tour-Pak locations. This speaker directly replaces the existing factory speakers using the factory mounting hardware and speaker connectors.It features a compact Neodymium motor structure driving a co-molded, reinforced polypropylene cone with Santoprene surround This ensures that you get maximum frequency response and output in both the mid and low frequency range. It also features an ultra-efficient 25mm dome tweeter with integrated phase plug for crisp clear highs even at highway cruising speeds.It is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker requires no modification of the factory location and comes with new grille assemblies.Harley-Davidson® is a registered trademark of Harley-Davidson Motor Company
-
General Features
- Neodymium Tweeter with Integrated Phase Plug and ASA Grill
- Carbon Fiber Reinforced Polypropylene Cone
- Element Ready design that is weather and water resistant
- Santoprene VAST Surround
- Ultra-Efficient 25mm Proprietary Film Dome Tweeter
- Co‐Molded Cone and Surround
- Santoprene Front Isolation Spider
- Ultra‐Efficient Neodymium Ring Magnet Motor
- High Power 35mm Voice Coil
- Poly‐Cotton Spider
- Ultra‐High Temperature Glass Reinforced Polymer Frame
- Integrated 6dB Crossover with High Power Polyester Capacitor
- Integrated Spade Terminals
- Discreet (Hidden) Tweeter Wire
- Low Profile Coaxial Tweeter Design

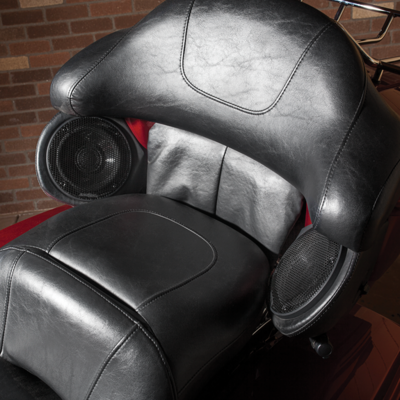

- Designed for 1998‐2013 Harley-Davidson® Rear Tour-Pak® Locations
- 2-Year Warranty
- NOTE: Installation on CVO™ and Screaming Eagle™ models are not plug-n-play and will require modification
Technologies
Element Ready™ | Motorcycle
All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.
Klippel Verified
Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.
CEA-2031 (speakers)
Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.
VAST Surround (speakers)
The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%.
Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide superior heat dissipation (up to 100° at full power levels). Unlike traditional plastic substitutions, aluminum acts like a heat-sink to quickly dissipate thermal build-up on the voice coil. This keeps subwoofers cool during high SPL conditions.
Specifications
- Midrange Size (Nominal Diameter)
- 5.25"
- CEA-2031 Compliant
- Nominal Impedance (Ohms)
- 4-Ohm
- Speaker Type
- 2-Way Coax
- Power Handling (MAX)
- 130 Watts MAX
- Frequency Response (Hz)
- 64 Hz - 20 kHz
- Power Handling (RMS)
- 65 Watts RMS
- Voice Coil Diameter (in/mm)
- 1.40"
- (35.6 mm)
- Tweeter Mounting Depth
- N/A
- Grille/Trim Ring Included
- Yes
- Mounting Hardware
- Yes
- Sensitivity (dB @ 2.83V/1M)
- 94 dB
- Crossover
- Built-in tweeter crossover
- Sensitivity (dB @ 1W/1M)
- 91 dB

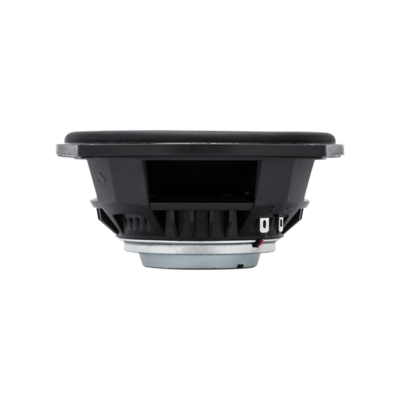

- Midrange Mounting Depth
- 2.05"
- (52.0mm)
- Included In The Box
- (2) Speakers
- (2) Speaker Grilles
- (1) Hardware Pack
Compatibility
| YEAR | MAKE | CHASSIS | MODEL | FAIRING |
|---|---|---|---|---|
| 2006–2013 | Harley-Davidson® | FLHX | Street Glide® | Bat Wing |
| 1998–2013 | Harley-Davidson® | FLHTI | Electra Glide® Standard | Bat Wing |
