ROCKFORD FOSGATE - PMX-HD9813
ROCKFORD FOSGATE - PMX-HD9813
- Digital Media Receiver for Select 1998-2013 Harley-Davidson Models
General Features

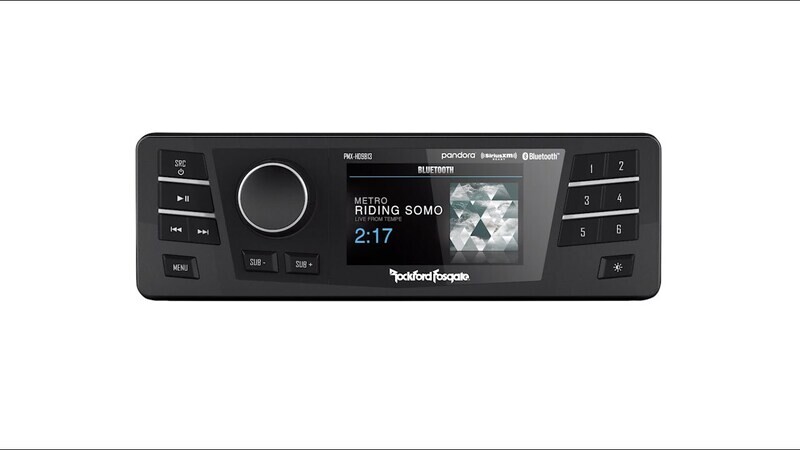

Digital Media Receiver for 1998-2013 Harley-Davidson PMX-HD9813
Direct replacement digital media receiver for select 1998 - 2013 Harley-Davidson® motorcycles. Features 3-inch full color, ultra-bright display with day/night modes and oversized buttons for easy control. Engineered for the ultimate in performance and sound quality featuring 4-Volt pre-amp outputs that don't clip! Plug and play installation with OEM electrical system requires no additional wiring or cutting of existing factory harnesses or components. Retains factory thumb controls
Plug and play installation requires factory wiring harness and connectors in order to retain functionality. Systems requiring rear speaker-line outputs will require additional harness (sold separately.) PMX source unit not compatible with factory equipped CB, Headset, or Satellite radio systems.
• 1998-2013 Harley-Davison® direct replacement Media Receiver
• A2DP and AVRCP Bluetooth® Wireless Streaming
• Pandora® Internet Radio Control
• SiriusXM® Ready (requires SiriusXM® SXV300 tuner)
• Digital AM / FM Tuner
• USB Input with 1.5A USB Charging
• AUX Input
• 3" Full Color TFT Display with Day/Night Mode
• Retains Factory Handle Bar Audio Controls
• Voltage gauge with Low voltage Warning
• 7-Band Graphic EQ + PEQ
• Plug and Play Installation with OEM electrical connectors
• Independent Subwoofer Level Control
• Comptable with PMX-BTUR Remote control
• Multi Region Radio Frequencies
• Selectable HP/LP/AP Crossover with Selectable 12/24 dB/Octave Slope
• Software updatable via USB
• 1 Year Warranty
• *Antenna not included
Technologies
Element Ready™ | Motorcycle
All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.
Made for iPod/iPhone
This device supports the Apple "Made for iPod/iPhone" protocol.
Pandora®
Pandora® (also known as Pandora Internet Radio) is a music streaming and automated music recommendation service.
Bluetooth™ Audio Streaming
Wirelessly stream audio to your unit with any compatible Bluetooth® device.
USB Playback
This source unit supports playback from a USB device.
SiriusXM Ready™
This radio is ready to accept SiriusXM programming.
ASTM D4329 UV Certified
Marine Grade standards ensure resistance to extreme environments.
IPX4 Water Intrusion Rating
Protects from splashing water, no matter the direction.
IPX6 Water Intrusion Rated
Water projected in powerful jets from any direction shall have no harmful effects.
CISPR 25 Class 3 EMI Compliant
Vehicles, boats and internal combustion engines – Radio disturbance characteristics – Limits and methods of measurement for the protection of on-board receivers.
Specifications
- Output Impedance
- < 500 Ohms
- Operating Voltage
- 9.5 - 16 VDC
- Output Power
- CEA-2006 Power Rating
- 25W x 4 @ 4Ω RMS
- 50W x 4 @ 2Ω MAX
- ≤1.0% THD+N
- Idle Current
- < 2 Amps
- Frequency Response
- RCA: 20Hz - 20 kHz
- High-Level: 20Hz - 20 kHz
- THD+N
- 4-Ohms: < 1.0 %
- Crossover
- Sub-Out variable from 60 Hz - 120 Hz
- RCA Output Voltage
- Front: 4 V Max
- Rear: 4 V Max
- Sub: 4 V Max
- Channel Separation
- RCA: > 50 dB
- High-Level: > 50 dB
- Signal-to-Noise Ratio
- RCA 2V: > 85 dB
- High Level (CEA-2006): > 75 dB
- Max Wrms: > 80 dB
- AM Tuner
- Range: 530 - 1710 kHz
- Sensitivity: 40 dB
- Frequency Response: 45 to 2.4 kHz
- FM Tuner
- Range: 87.9 - 107.9 MHz
- Sensitivity: 8 dB
- Frequency Response: 20 - 15 kHz
- Bluetooth®
- 3.0+EDR
- A2DP 1.3
- USB Version
- 2.0
- Supported Media Formats
- MP3
- WMA
- USB Output Current
- 1.5A
- Clock
- Yes
- USB Capacity
- 32 Gb max
- 255 Folders max
- 999 Songs max
- Format Win USB as FAT32
- Format Mac USB as MS-DOS (FAT)
- Display Size:
- Nominal Size: 3" Color TFT
- Resolution: 960 x 240
- Brightness: 380 nits
- Contrast: 400
- Pixels: 320 x 240
- View Angle: 120
- Made for iPhone Models
- iPhone XS Max
- iPhone XR
- iPhone 8 Plus
- iPhone 7 Plus
- iPhone SE
- iPhone 6s
- iPhone 6
- iPhone 5c
- iPhone XS
- iPhone X
- iPhone 8
- iPhone 7
- iPhone 6s Plus
- iPhone 6 Plus
- iPhone 5s
- iPhone 5
- Shipping Weight
- 4.75 Lbs. (2.15 Kg)
- Made for iPod Models
- iPod touch (5th generation)
- iPod touch (6th generation)
- Dimensions (HxWxD)
- Faceplate: 2.7" x 8.4" x 0.7" (68.4 mm x 213 mm x 17.1 mm)
- Chassis: 2.5" x 8.2" x 7.5" (63.5 mm x 209.3 mm x 191 mm)
Compatibility
Plug and play installation requires factory wiring harness and connectors in order to retain functionality. Systems requiring rear speaker-line outputs will require additional harness available in the RFK-HD9813
or separately with the 1130-72997-01.
1 Not compatible with factory amplified systems, CB, Intercom, rear volume controls, rear speakers on 1998-2005 Ultra’s, and factory equipped satellite radio systems.
| YEAR | MAKE | MODEL |
|---|---|---|
| 2006-2013 | Harley Davidson® | Street Glide®1 |
| 1998-2013 | Harley Davidson® | Road Glide®1 |
| 1998-2013 | Harley Davidson® | Electra Glide®1 |
