RNGR18-K8
RNGR18-K8
- 8 AWG 800 Watt Amp Installation Kit for Select 2018+ Ranger Models (Gen-2)
- Rockford Fosgate audio systems for select 2018+ RANGER models are 100% Element Ready™, providing the ability to take your off-road vehicle into any environment. The system features a plug and play design, requires minimal drilling for some components, and includes step-by-step installation videos.
PLEASE CALL FOR PRICING.
General Features
- No drilling or cutting required
- Direct bolt into vehicle using OEM mounting holes
- 8 AWG wiring harness
- Pre-cut and loomed power/ground and speaker wire harnesses included
- Designed for use with M5-800X4 amplifier
- Designed for use with 2-seat and 4-seat models
- 1 Year Warranty
Technologies
Color Optix™ Control
Adjust your own bright, wide, and limitless lighting experience with the Rockford Fosgate Color Optix™ plug-and-play controller and App (sold separately.)
Specifications
- Shipping Weight
- 6 Lbs (2.72 Kg)
- Included In The Box

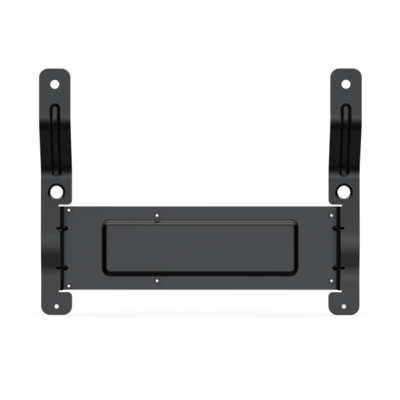

- (1) 1415-71316-01 Amp Bracket K4/K8
- (1) 1560-72413-01 Wiring Harness, M5-800X4 3580mm, 8/16/20 AWG Wires, 9 Connector
- (1) 1560-72412-01 Wiring Harness, M5-1500X5, 900mm, 6 Wire, 6 Connector
- 1130-75483-01 Accessory Pack:
- (9) 1125-61095 Cable Tie 0.17 x 8 in.
- (4) 1125-61447-01 Screw M4 x 0.7 10mm
- (3) 1125-61602-01 Tree Cable Tie 7.3 x 162
Compatibility
YES Ranger model IS compatible with kit |
NO Ranger model NOT compatible with kit |
NOT AVAILABLE Ranger model not produced this year |
|---|
COMPATIBLE  Polaris Tip-Out Full Windshield(drill hole for receiver) |
COMPATIBLE Polaris Ranger HVAC System |
|---|
MID-SIZE (2-SEAT)
| MODEL |
 2018 |
2019 |
2020 |
2021 |
2022 |
|---|---|---|---|---|---|
| Ranger 500 | ✕ | ✕ | ✕ | ✕ | ✕ |
| Ranger 570 | ✕ | ✕ | ✕ | — | — |
| Ranger 570 EPS | ✕ | ✕ | ✕ | — | — |
| Ranger SP 570 | — | — | — | ✕ | ✕ |
| Ranger SP 570 Premium | — | — | — | ✕ | ✕ |
| Ranger SP 570 NorthStar Edition | — | — | — | ✕ | ✕ |
| Ranger EV | ✕ | ✕ | ✕ | ✕ | ✕ |
FULL-SIZE (3-SEAT)
| MODEL |
 2018 |
2019 |
2020 |
2021 |
2022 |
|---|---|---|---|---|---|
| Ranger 570 Full-Size | ✕ | ✕ | ✕ | ✕ | ✕ |
| Ranger Diesel | ✕ | — | — | — | — |
| Ranger 1000 | — | — | ✔ | ✔ | ✔ |
| Ranger 1000 EPS | — | — | ✔ | ✔ | ✔ |
| Ranger 1000 Premium | — | — | ✔ | ✔ | ✔ |
| Ranger 1000 Premium + Winter Prep Package | — | — | — | ✔ | ✔ |
| Ranger XP 900 | ✕ | ✕ | — | — | — |
| Ranger XP 900 EPS | — | — | — | — | — |
| Ranger XP 1000 Big Game Edition | ✕ | ✕ | — | ✔ | ✔ |
| Ranger XP 1000 Texas Edition | — | — | ✔ | ✔ | — |
| Ranger XP 1000 Trail Boss | — | — | — | ✔ | ✔ |
| Ranger XP 1000 Waterfowl Edition | — | — | — | ✔ | ✔ |
| Ranger XP 1000 NorthStar Big Game Edition | — | — | — | — | ✔ |
| Ranger XP 1000 NorthStar [Edition] Ultimate | — | — | ✔ | ✔ | ✔ |
| Ranger XP 1000 NorthStar [Edition] Premium | — | — | ✔ | ✔ | ✔ |
| Ranger XP 1000 NorthStar Edition Trail Boss | — | — | — | ✔ | ✔ |
| Ranger XP 1000 EPS | ✔ | ✔ | — | — | — |
| Ranger XP 1000 [EPS] Premium | — | ✔ | ✔ | ✔ | ✔ |
| Ranger XP 1000 [EPS] High Lifter Edition | ✔ | ✔ | ✔ | ✔ | ✔ |
| Ranger XP 1000 EPS NorthStar [HVAC] Edition | ✔ | ✔ | — | — | — |
| Ranger XP 1000 EPS Back Country Limited Edition | — | ✔ | — | — | — |
* [ ] brackets indicate nomenclature used on earlier 2018/2019/2020 models and inherited on later 2021/2022 models.
RANGER CREW (4-SEAT)
| MODEL |
 2018 |
2019 |
2020 |
2021 |
2022 |
|---|---|---|---|---|---|
| Ranger Crew 570[-4] | ✕ | ✕ | ✕ | ✕ | — |
| Ranger Crew 570-4 EPS | ✕ | ✕ | — | — | — |
| Ranger Crew 570[-4] Premium | — | — | ✕ | ✕ | — |
| Ranger Crew SP 570 | — | — | — | ✕ | ✕ |
| Ranger Crew SP 570 Premium | — | — | — | — | ✕ |
| Ranger Crew SP 570 NorthStar Edition | — | — | — | ✕ | ✕ |
* [ ] brackets indicate nomenclature used on earlier 2018/2019/2020 models and inherited on later 2021/2022 models.
RANGER CREW (6-SEAT)
| MODEL |
 2018 |
2019 |
2020 |
2021 |
2022 |
|---|---|---|---|---|---|
| Ranger Crew 570-6 | ✕ | ✕ | ✕ | — | — |
| Ranger Crew 570 Full-Size | — | — | — | ✕ | ✕ |
| Ranger Crew Diesel | ✕ | — | — | — | — |
| Ranger Crew 1000 | — | — | ✔ | ✔ | ✔ |
| Ranger Crew 1000 EPS | — | — | ✔ | — | — |
| Ranger Crew 1000 Premium | — | — | ✔ | ✔ | ✔ |
| Ranger Crew 1000 Premium + Winter Prep Package | — | — | — | — | ✔ |
| Ranger Crew XP 900 EPS | ✕ | ✕ | — | — | — |
| Ranger Crew XP 900 | ✕ | ✕ | — | — | — |
| Ranger Crew XP 1000 Big Game Edition | — | — | — | ✔ | ✔ |
| Ranger Crew XP 1000 Premium | — | — | ✔ | ✔ | ✔ |
| Ranger Crew XP 1000 Texas Edition | — | — | ✔ | ✔ | ✔ |
| Ranger Crew XP 1000 Trail Boss | — | — | — | ✔ | ✔ |
| Ranger Crew XP 1000 Waterfowl Edition | — | — | — | ✔ | ✔ |
| Ranger Crew XP 1000 NorthStar [Edition] Premium | — | — | ✔ | ✔ | ✔ |
| Ranger Crew XP 1000 NorthStar [Edition] Ultimate | — | — | ✔ | ✔ | ✔ |
| Ranger Crew XP 1000 NorthStar Edition Trail Boss | — | — | — | ✔ | ✔ |
| Ranger Crew XP 1000 EPS | ✔ | ✔ | — | — | — |
| Ranger Crew XP 1000 [EPS] High Lifter Edition | ✔ | ✔ | ✔ | ✔ | ✔ |
| Ranger Crew XP 1000 EPS NorthStar [HVAC] Edition | ✔ | ✔ | — | — | — |
| Ranger Crew XP 1000 EPS Back Country Edition | — | ✔ | — | — | — |
* [ ] brackets indicate nomenclature used on some models and inherited on other models.
YOUTH
| MODEL |
 2018 |
2019 |
2020 |
2021 |
2022 |
|---|---|---|---|---|---|
| Ranger 150 EFI | ✕ | ✕ | ✕ | ✕ | ✕ |
Support
Return Authorization
Contact the Authorized Rockford Fosgate Dealer you purchased this product from. If you need further assistance, call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.
