RFPEQU
RFPEQU
- Universal PEQ Remote & Line Driver

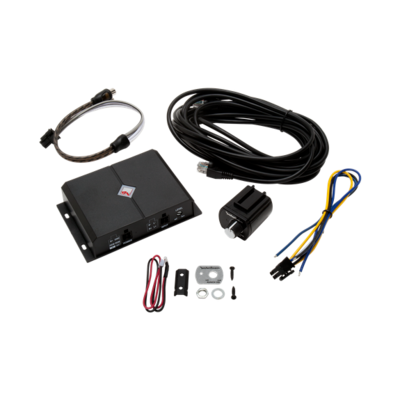

- The RFPEQU universal Punch EQ is a remote control bass knob compatible with any branded aftermarket audio system. Adapter features a high-level signal input with auto turn-on capability and adjustable sensitivity to match any audio source. The 2-channel RCA outputs with built-in line driver allow the signal to connect to any amplifier’s input jacks and overcome any noise. Included cable allows remote bass knob to be conveniently installed near driver/passenger for quick and easy adjustment of bass level.
PLEASE CALL FOR PRICING.
General Features
- High voltage line driver
- Independent gain control
- Speaker level to RCA line level converter
- Aux. remote turn-on output
- Low distortion, low noise operation
- Line driver with OEM integration capabilities
- PEQ remote included
- "Auto-Sense" turn-on with remote out (high level in)
- Discrete surface mount technology
- 1 Year Warranty
Technologies
Punch EQ2
Onboard equalizer with up to +18dB @ 45Hz and/or up to +12dB boost at 12.5kHz.
DSM
DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.
This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).
Specifications
- Processor Type
- Analog Processor
- Output Impedance
- 500 Ohms
- Shipping Weight
- 1.4 Lbs.
- (0.63 Kg.)
- Dimensions (H x W x D)
- 1.1" x 3.15" x 4.72"
- 28 mm x 80 mm x 120 mm
- Signal Input
- High-Level: 2-channel (left/right)
- THD+N
- 0.005%
- Mounting
- Behind Dash (install as close to source unit as possible)
- EQ Frequency Controls
- Bass: 0dB to +18dB @ 45Hz
- Treble 0dB to +12dB @ 12.5kHz
- Input Voltage
- 650mV to 10V RMS
- Frequency Response
- 20Hz - 20kHz ±1dB
- Operating Voltage
- 9-16 VDC @ 200 mA
- Mounting
- Behind Dash (install as close to source unit as possible)
- EQ Frequency Controls
- Bass: 0dB to +18dB @ 45Hz
- Treble 0dB to +12dB @ 12.5kHz
- Signal Output
- Low-Level: 2 RCA (left/right)
- Output Voltage
- 10V RMS
- Input Impedance
- 20k Ohms
