Store
0
R2-SB12V
+3

R2-SB12V

00344
C$0.00
Pre-order
1
Product Details

R2-SB12V

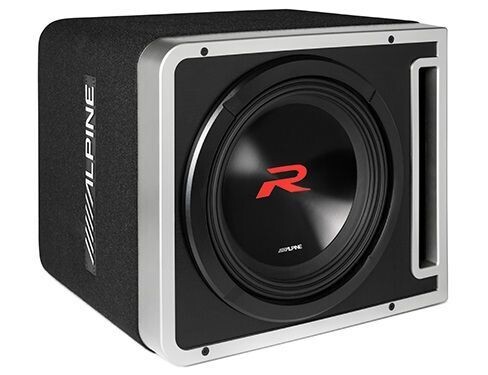

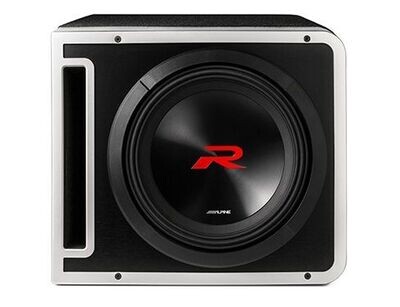

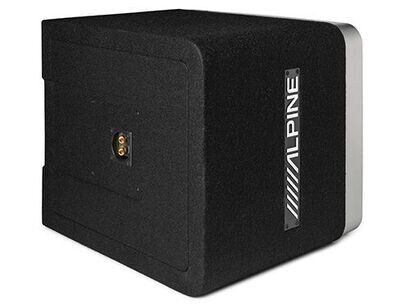

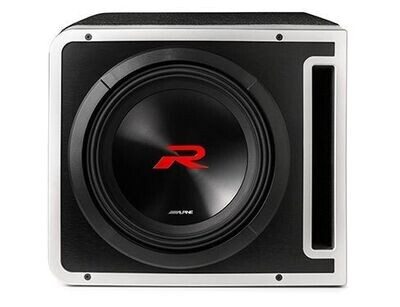

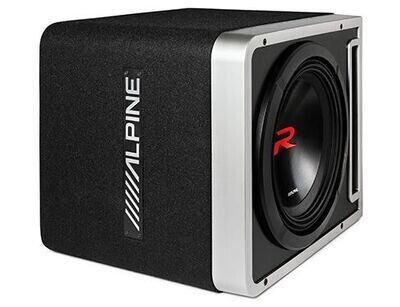

  • Next-Generation 12-inch R-Series Alpine Halo Preloaded Subwoofer Enclosure with ProLink™

PLEASE CALL FOR PRICING.

General Features
Features:
  • Groundbreaking Alpine Halo Design
  • ProLink™ ported enclosure design
  • Polypropylene/Ceramic Composite Dust Cap
  • Kevlar Reinforced Pulp Cone High-Performance subwoofers
  • High-Amplitude Multi-Roll (H.A.M.R.) Surround
  • Large Double-Stacked Magnets
  • CARB compliant 3/4-inch MDF construction
  • Premium black carpet
  • Silver Alpine embossed side logo badge
  • Brushed aluminum finished metallic front baffle
  • Threaded Subwoofer Mounting Inserts (for reversible subwoofer orientation)

What's in the Box:
  • Vented Cabinet with preloaded R2-W12D4 10” R-Series subwoofer
  • Warranty Information
  • Online product registration information
Specifications
Dimensions: 17” W x 14.625” H x 15” D
  • 750W RMS
  • 2250W Peak Power Handling
  • Frequency Response: 24Hz-200Hz
  • Sensitivity (1W/1m): 85dB
  • Dual 4Ω Voice Coils Wired in Parallel for a 2Ω Load (Compatible with R-A75M)
  • Voice Coil: 65.5mm 
  • X-Max: 20mm
  • Magnet Weight: 144oz
  • 12 Gauge OFC Speaker Box Wire
  • CTA-2031 Compliant

Owner's Manual

Owner's Manual
