Product Details

PSS-24WRA

  • 300-Watt Complete Sound System Upgrade Package for the 2018-23 Jeep® Wrangler and 2020-23 Jeep® Gladiator


PLEASE CALL FOR PRICING.

General Features

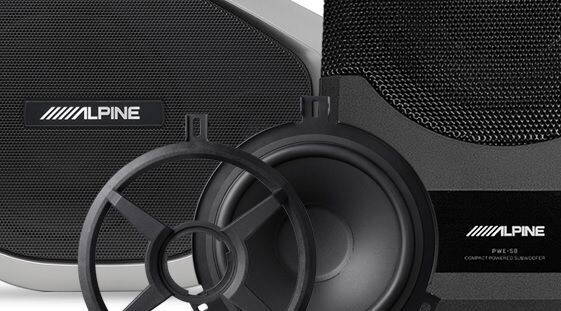

  • Complete, five-channel powered sound system upgrade package
  • Compatible with four-door, non-amplified 2018-23 Jeep® Wrangler and non-amplified 2020-23 Jeep® Gladiator
  • Also compatible with two-door, non-scissor front seats in 2019-23 Jeep® Wrangler
  • Includes Alpine’s SPV-65X-WRA, SPV-65-JLT, PWE-S8, and KTP-445U
  • 180W, 4-channel Power Pack amplifier
  • 120W, 8” powered subwoofer
  • (2x) 6.5” weather-resistant mid-bass drivers
  • (2x) 1” weather-resistant teteron dome tweeters with vehicle-specific connectors and crossovers
  • Vehicle-specific front speaker pods with vehicle-specific connectors
  • Tweeter adapter plates allow for the use of the original factory tweeter locations

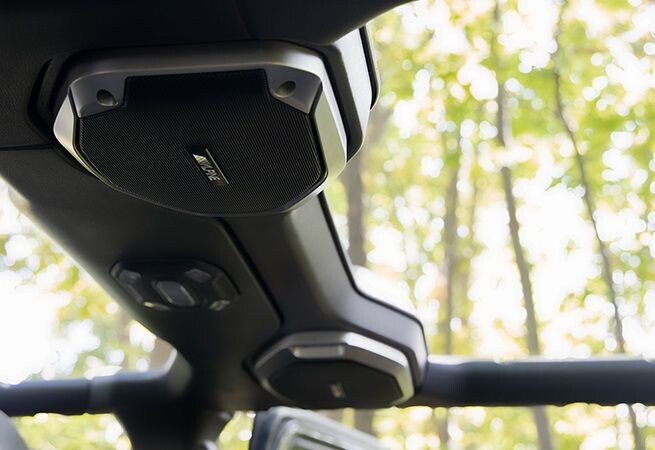

  • SPV-65-JLT weather-resistant rear soundbar speaker system
  • Rugged, premium grills designed to emulate the factory look and appeal
  • Vehicle-specific connectors for plug-and-play speaker installation 
  • Utilizes factory bolt locations
  • Durable stamped, steel frame speaker basket design
  • Includes template for mounting
  • Vehicle-specific T-harness for installation with OEM radio into compatible 2018-23 Jeep® Wrangler and 2020-23 Jeep® Gladiator vehicles
  • Vehicle-specific mounting brackets allow for the powered sub and amp to be secured under the passenger seat without drilling
What's in the Box:
  • KTP-445U Universal 4-Channel Power Amplifier
  • PWE-S8 8" Compact Powered Subwoofer
  • SPV-65X-WRA Front Component Speakers
  • SPV-65-JLT Rear Sound Bar Speakers
  • ALP-POD-JLT Front Speaker Pod
  • PSU-BKT-JL-R PWE Right Bracket JL
  • PSU-BKT-JL-L PWE Left Bracket JL
  • ALP-HRN-PSU300 PSU Power Harness
  • ALP-THRN-CH2 Chrysler T-Harness
  • CT6 6" Cable Ties
  • PHPSM412 Pan Head Phillips Screw M4x12
  • SLWM4 M4 Split Lock Washers
  • PHSCR832 8-32 Pan Head Phillips screws
  • PSS-WRA-IM Installation Manual
Specifications
Front (SPV-65X-WRA):
• Power handling: 75 watts RMS (225 watts peak)
• Frequency response: 65kHz – 22kHz
• Nominal impedance: 4 ohms
• Weather-resistant: IP55
Rear (SPV-65-JLT):
• Power handling: 90 watts RMS (270 watts peak)
• Frequency response: 50kHz – 22kHz
• Nominal impedance: 4 ohms
• Weather-resistant: IP55
Powered Subwoofer (PWE-S8):
• 120 watts RMS (240 watts peak)
• Frequency response: 32 - 150Hz
• Variable low-pass crossover (80-200 Hz)
• Variable phase control (0-180 degrees)
• preamp- and speaker-level inputs

Four Channel Power Pack Amplifier (KTP-445U):
• 45 watts RMS x 4 at 4 or 2 ohms
• 90 watts RMS x 2 bridged at 4 ohms
• Selectable high-pass filters (60, 80, or 120 Hz at 12 dB/octave)
• Switchable RCA or speaker-level inputs

Dimensions:
• 27” L x 18.5” W x 19.5” H
• 40lbs

Estimated Installation Time: 8 Hours
(Professional Installation Recommended)
*Cutting Required
Owner's Manual

Install Manual
