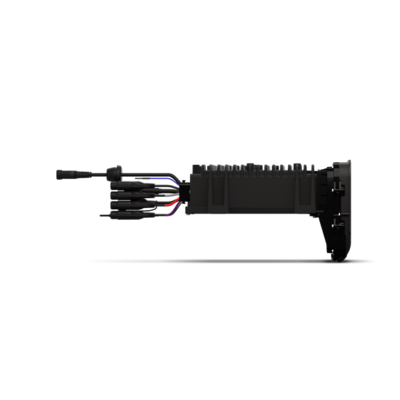

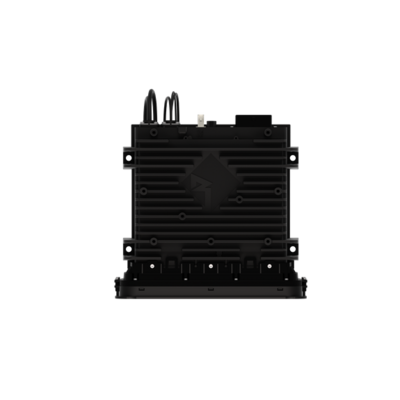

PMX-HD14
PMX-HD14

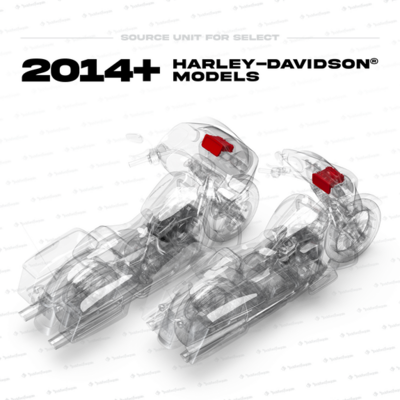

- Infotainment Source Unit for Select 2014+ Harley-Davidson Models
- The PMX-HD14 source unit was purpose built to deliver iconic performance. With class leading features like Apple Car Play®, plug-and-play installation, CB wireless headset connectivity as well as Street Party Mode™ which allows you to pair and stream the same music across multiple radios simultaneously.The PMX-HD14 includes these accessory trim bezels:• (1) Batwing Trim Bezel (Street Glide)• (1) Sharknose Trim Bezel (Road Glide)Refer to our COMPATIBILITY chart to verify fitment before purchasing.
-
PLEASE CALL FOR PRICING.
General Features
- 2014+ Harley-Davidson® direct replacement digital media receiver

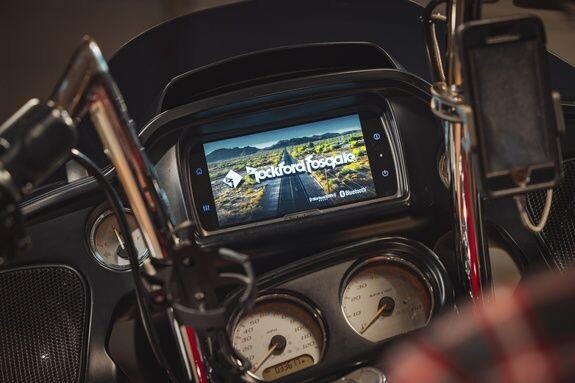

- 7" full color, glove friendly, capacitive multi-touch screen

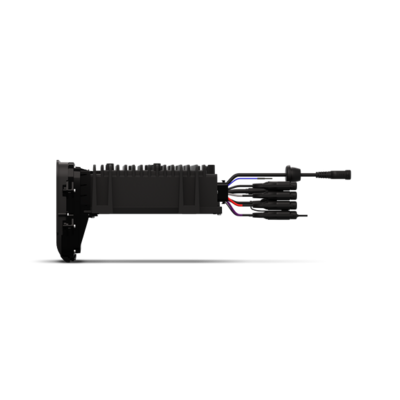

- Plug and Play Installation with OEM electrical connectors
- No need to flash your bike
- Works with wireless headsets and OEM CB (WHIM & CB modules required)
- Retains factory thumb control functionality with no additional parts
- Glove friendly touch controls
- Bluetooth® connectivity with A2DP wireless audio streaming

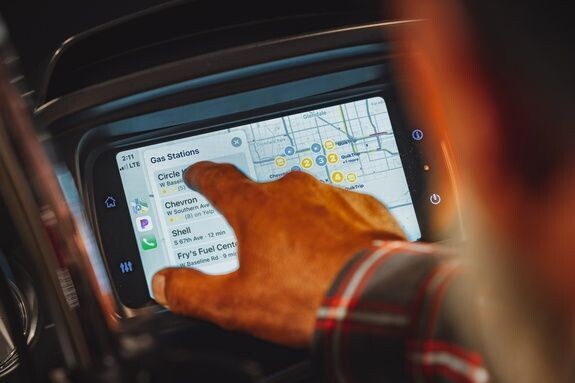

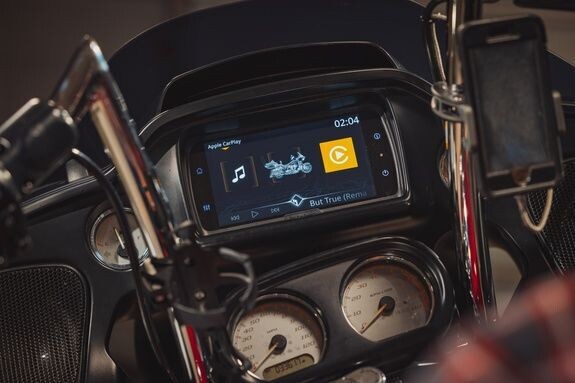

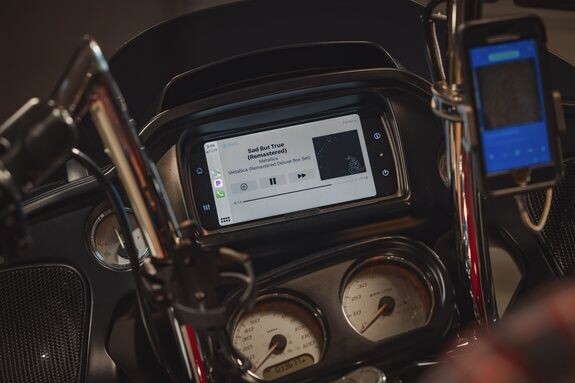

- Apple CarPlay® built in
- Street Party Mode™ can broadcast audio up to 100 feet to 8 additional PMX-HD14
- SiriusXM® Ready (requires SiriusXM® SXV300 tuner)

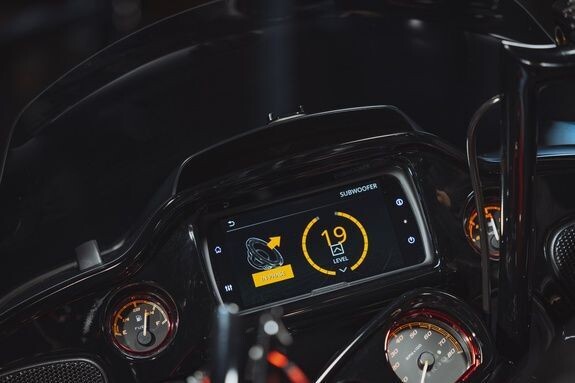

- Built in DSP with Subwoofer control
- Optimized DSP presets for all 2014+ Rockford Fosgate H-D stage kits
- Digital AM/FM/WB tuner with presets

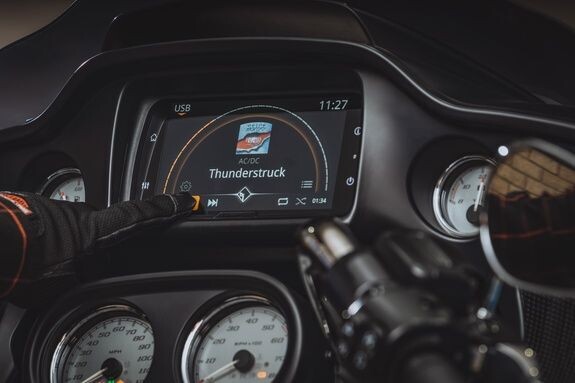

- USB Input with 1.5A USB Charging
- Software updatable via USB
- AUX Input
- 14 band graphic EQ
- Multi-region radio frequencies
- 2-Year Warranty
- *Antenna not included
Technologies
Element Ready™ | Motorcycle
All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.
Made for iPhone
Made for iPhone means this product has been designed to connect specifically to iPhone and has been certified by the developer to meet Apple performance standards.
7" TFT
A Thin-Film Transistor (TFT) is a field-effect transistor (FET) where the transistor is grown directly on a glass substrate versus traditional TFTs in liquid-crystal displays (LCDs).
Bluetooth™ Audio Streaming
Wirelessly stream audio to your unit with any compatible Bluetooth™ device.
SiriusXM Ready™
This radio is ready to accept SiriusXM programming.
USB Playback
This source unit supports playback from a USB device.
MP3 Playback
This source unit supports MP3 file format playback.
IPX6 Water Intrusion Rating
Water projected in powerful jets from any direction shall have no harmful effects.
Specifications
- Display Size
- 7"
- Display Type
- Color TFT
- Output Power
- CEA-2006 Power Rating
- 25W x 4 @ 4Ω RMS
- 50W x 4 @ 2Ω MAX
- ≤1.0% THD+N
- Output Power
- Frequency Response
- 20 Hz - 20 kHz
- Output Impedance
- < 500Ω
- Source Zones
- 1.0
- Audio Zones
- 1.0
- EQ Type
- Graphic
- EQ Bands
- 14
- Pre-Amp Outputs
- 6 (Left/Right)
- Pre-Amp Output Voltage
- 4.0 VRMS Front
- 4.0 VRMS Rear
- iPhone via USB
- Yes
- Android via USB
- Charge Only
- USB Type
- Type A
- USB Charging Current
- 1.5 A
- USB Max Folders/Files
- 999
- USB Max Capacity
- 32 GB
- AUX Inputs
- 1 (left/right)
- AUX Input Sensitivity
- 800 mV - 4 V
- AM/FM Tuner
- Yes
- Bluetooth
- 5.0
- SiriusXM®
- Yes (SXV300)
- Made for iPhone
- Yes
- Apple CarPlay
- Yes
- Android Auto
- No
- Clock
- Yes
- SD Card Input
- No
- Street Party Mode
- Broadcast: 100 ft. max
- Receiving: 8 radios max
- Playback: MP3
- Yes
- Playback: FLAC
- Yes
- Playback: WMA
- Yes
- Playback: AAC
- No
- Playback: LC3
- No
- Playback: DRM
- Yes
- Playback: USB
- Yes

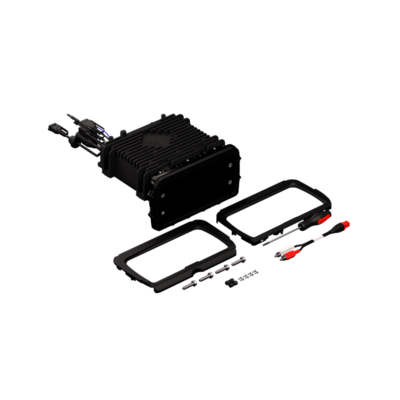

- Included In The Box
- (1) Road Glide trim bezel
- (1) Street Glide trim bezel
- (8) Trim Panel Screws
- (1) Mini Phillips screwdriver for trim bezel
- (4) Radio Chassis Mount screws
- (8) Rubber sleeves for radio chassis screws
- Operating Voltage
- 9 - 16 VDC
Compatibility
YES Model IS compatible |
NO Model NOT compatible |
NOT AVAILABLE Model not produced this year |
|---|
 YES H-D® CB |
YES SiriusXM™ SXV300 |
NO H-D® SiriusXM™ |
COMPATIBLE Boom!™ Audio1 |
NO Boom!™ Stage I2 |
NO Boom!™ Stage II2 |
COMPATIBLE H-D® by RF® Stage IRF2 |
COMPATIBLE H-D® by RF® Stage IIRF2 |
|---|
| MODEL |
CHASSIS | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 | 2021 | 2022 | 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Electra Glide® Revival |
FLH | — | — | — | — | — | — | — | ✔ | — | ✔ |
 Electra Glide® Standard NR |
FLHT | — | — | — | — | — | XNR | XNR | XNR | XNR | — |
 Road Glide® |
FLTRX | — | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
 Road Glide® ST |
FLTRXST | — | — | — | — | — | — | — | — | ✔ | ✔ |
 Road Glide® Special |
FLTRXS | — | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
 Road Glide® Special 120th Anniversary |
FLTRXSANV | — | — | — | — | — | — | — | — | — | ✔ |
 Street Glide® |
FLHX | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
 Street Glide® ST |
FLHXST | — | — | — | — | — | — | — | — | ✔ | ✔ |
 Street Glide® 115th Anniversary |
FLHXANV | — | — | — | — | ✔ | — | — | — | — | — |
 Street Glide® Special |
FLHXS | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
 Street Glide® Special 115th Anniversary |
FLHXSANV | — | — | — | — | ✔ | — | — | — | — | — |
 Street Glide® Special 120th Anniversary |
FLHXSANV | — | — | — | — | — | — | — | — | — | ✔ |
| MODEL |
CHASSIS | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 | 2021 | 2022 | 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|
 CVO Road King® |
FLHRSE | X | — | — | — | — | — | — | — | — | — |
 CVO Softail Deluxe |
FLSTNSE | X | X | — | — | — | — | — | — | — | — |
 Electra Glide Highway King |
FLHFB | — | — | — | — | — | — | — | — | — | X |
 Road King® |
FLHR | — | X | X | X | X | X | X | X | X | — |
 Road King® Classic |
FLHRC | X | X | X | X | X | X | — | — | — | — |
 Road King® Special |
FLHRXS | — | — | — | X | X | X | X | X | X | X |
| MODEL |
CHASSIS | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 | 2021 | 2022 | 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Road Glide® LimitedPTT |
FLTRK | — | — | — | — | — | — | ✔ | ✔ | ✔ | ✔ |
 Road Glide® UltraPTT |
FLTRU | — | — | ✔ | ✔ | ✔ | ✔ | — | — | — | — |
 Electra Glide® Ultra Classic®PTT |
FLHTCU | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | — | — | — | — |
| Electra Glide® Ultra Classic® Twin-CooledPTT |
FLHTCU | ✔ | ✔ | ✔ | — | — | — | — | — | — | — |
 Electra Glide® Ultra Classic® LowPTT |
FLHTCUL | — | ✔ | ✔ | — | — | — | — | — | — | — |
| Electra Glide® Ultra Classic® Low Twin-CooledPTT |
FLHTCUL | — | ✔ | ✔ | — | — | — | — | — | — | — |
 Ultra LimitedPTT |
FLHTK | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
 Ultra Limited 115th AnniversaryPTT |
FLHTKANV | — | — | — | — | ✔ | — | — | — | — | — |
 Ultra Limited 120th AnniversaryPTT |
FLHTKANV | — | — | — | — | — | — | — | — | — | ✔ |
 Ultra Limited LowPTT |
FLHTKL | — | ✔ | ✔ | ✔ | ✔ | ✔ | — | — | — | — |
 Ultra Limited Shrine EditionPTT |
FLHTK | — | — | — | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| MODEL |
CHASSIS | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 | 2021 | 2022 | 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|
 CVO Ultra Limited |
FLHTKSE | X | X | X | X | X | X | X | X | — | — |
 CVO Limited 115th Anniversary |
FLHTKSEANV | — | — | — | — | X | — | — | — | — | — |
 CVO Pro Street Breakout |
FXSE | — | — | X | X | — | — | — | — | — | — |
 CVO Road Glide® |
FLTRXSE | — | — | — | — | X | X | X | ✔RF2 | ✔RF2 | XRF2G2 |
 CVO Road Glide® Limited |
FLTRKSE | — | — | — | — | — | — | — | — | ✔RF1 | — |
 CVO Road Glide® Limited 120th Anniversary |
FLTRKSEANV | — | — | — | — | — | — | — | — | — | ✔RF1 |
 CVO Road Glide® Ultra |
FLTRUSE | — | X | X | — | — | — | — | — | — | — |
 CVO Softail Breakout |
FXSBSE | X | — | — | — | — | — | — | — | — | — |
 CVO Street Glide® |
FLHXSE | — | X | X | X | X | X | X | ✔RF2 | ✔RF2 | XRF2G2 |
| MODEL |
CHASSIS | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 | 2021 | 2022 | 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Freewheeler®NR |
FLRT | — | X | X | X | X | X | X | X | X | X |
 Road Glide 3 |
FLTRT | — | — | — | — | — | — | — | — | — | ✔ |
 Tri Glide® Ultra Classic®PTT |
FLHTCUTG | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
 Tri Glide® Ultra 115th AnniversaryPTT |
FLHTCUTGANV | — | — | — | — | ✔ | — | — | — | — | — |
| Tri Glide® Ultra 120th AnniversaryPTT |
FLHTCUTGANV | — | — | — | — | — | — | — | — | — | ✔ |
 CVO Tri Glide® |
FLHTCUTGSE | — | — | — | — | — | — | X | X | ✔RF1 | — |
GRAY TEXT
indicates nomenclature used on some early models and later inherited.
1 Boom! Audio
un-amplified systems are compatible.
2 Boom! Audio Stage I & Stage II
systems with external amplifier(s) are not compatible.
NR No Radio
equipped from factory. Make compatible with (2) Harley-Davidson #69200247
Fairing Speaker Harnesses, PMX-HD14
source unit, and TMS65
speakers.
PTT PTT Button
required on Ultra and Trike to use wired headsets. Make compatible with (1) Harley-Davidson #71500130C
Right Switchpack Assembly.
RF1 RF Stage I:
Upgradable radio only. Factory equipped with "Harley-Davidson Audio Powered by Rockford Fosgate"
2-way speakers and saddlebag amplifier.
RF2 RF Stage II:
Upgradable radio only. Factory equipped with "Harley-Davidson Audio Powered by Rockford Fosgate"
3-way speakers and saddlebag amplifier.
RF1G2 RF Stage I Gen-2:
Not upgradable. Factory equipped with "Harley-Davidson Audio Powered by Rockford Fosgate"
2-way speakers and saddlebag amplifier.
RF2G2 RF Stage II Gen-2:
Not upgradable. Factory equipped with "Harley-Davidson Audio Powered by Rockford Fosgate"
3-way speakers and saddlebag amplifier.
— Boom!™ is a Trademark of Harley-Davidson USA, Inc.
— Harley-Davidson®, H-D®, Road King®, Road Glide®, Street Glide®, Ultra Classic®, Tri Glide®, Freewheeler®, and Tour-Pak® are Registered Trademark of Harley-Davidson USA, Inc.
— SiriusXM® is a Registered Trademark of Sirius XM Radio Inc.
