Product Details

MMR-20-BE

  • Round, wired, non-display remote controller for use with MediaMaster®

PLEASE CALL FOR PRICING.

General Features

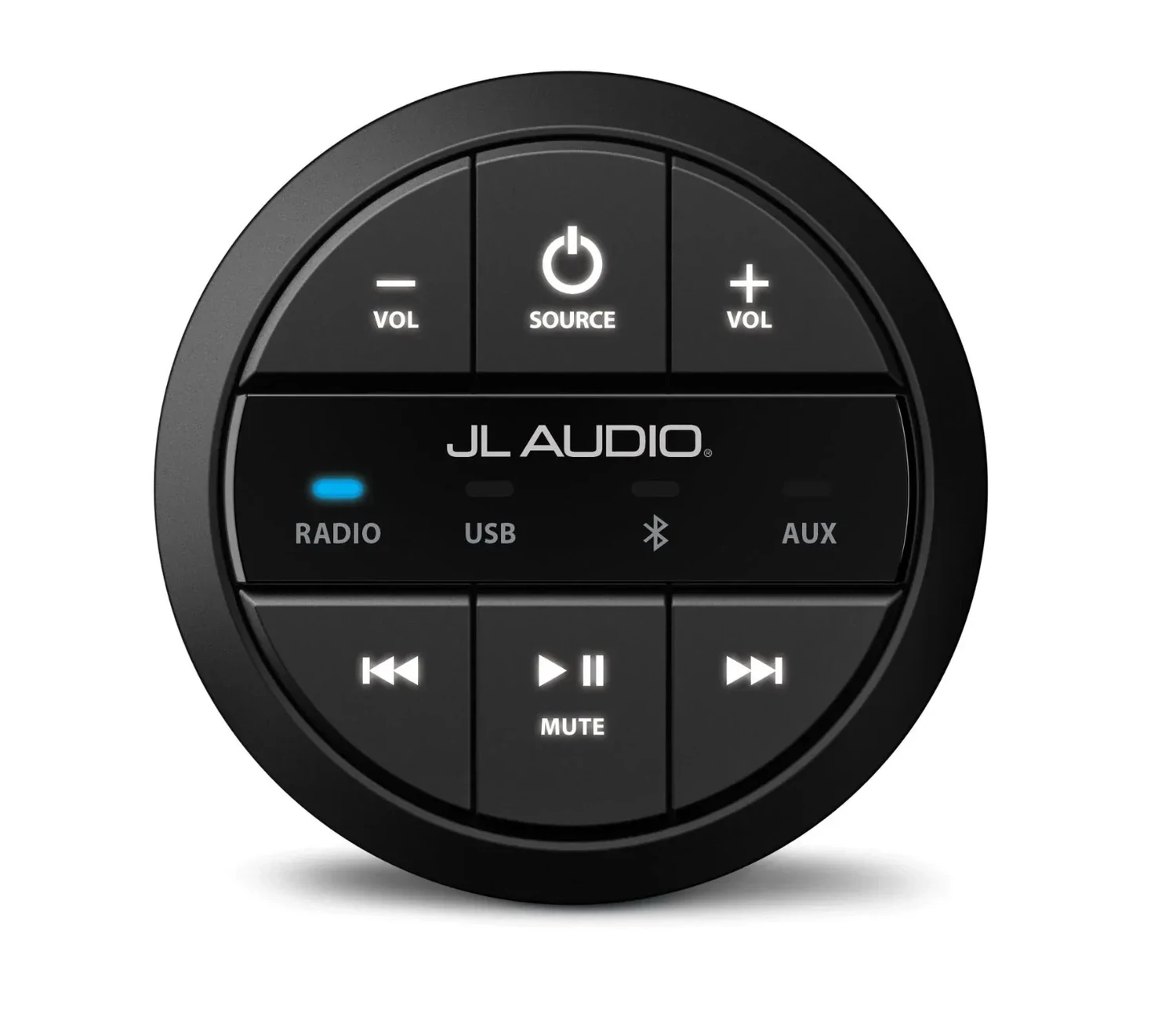

Round, wired, non-display remote controller for use with MediaMaster®

The MMR-20-BE is a wired remote controller engineered to add auxiliary control functionality to MediaMaster® source units.

Built for marine and off-road applications, its weatherproof (IP67 rated) design places frequently used functions of your MediaMaster® source unit in a simple, intuitive design that’s easy-to-use. Its large, backlit controls and LED source indicators are easily identifiable, day or night, with brightness settings that can be adjusted using your MediaMaster® source unit.

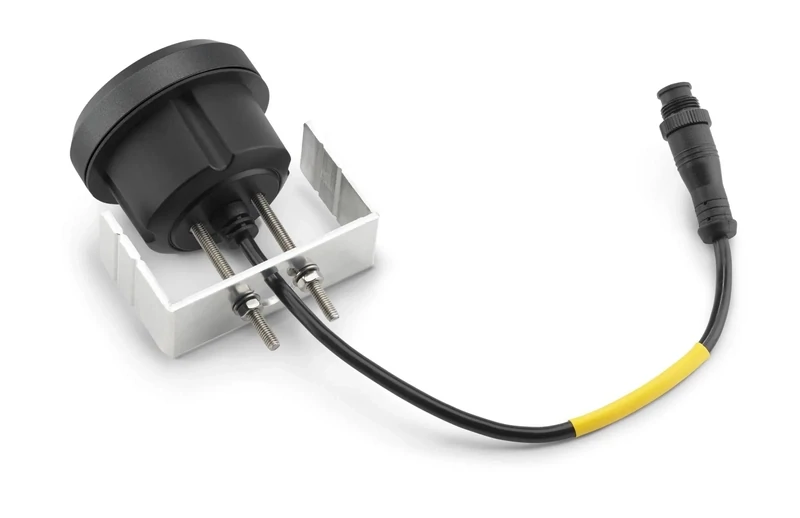

A small footprint and simple, one-hole design means the MMR-20-BE can be installed in even the tightest of spaces. Depending on your system layout, you may add up to three MMR-20-BE remote controllers to a single MediaMaster® source unit. Each MMR-20 can be connected up to 75 ft. (22.8 m) away from its source unit.

MediaMaster® remote control capabilities include:

  • Power On/Off
  • Source Select
  • Volume Up/Down
  • Track Up/Down (USB & BT)
  • Track Fast-Forward/Fast-Rewind (USB)
  • Favorite Up/Down (Radio)
  • Play/Pause (USB & BT)
  • Mute/Unmute (Radio & Aux)

The MMR-20-BE is compatible with these MediaMaster® source units:

  • MM105
  • MM100s-BE
  • MM100s
  • MM50

Note: Requires MMC Connection Cables (sold separately). Connection cables are available in several lengths to fit your specific application. Y-splitters are also available to connect up to three remotes to a MediaMaster® source unit.

Need additional information on making MediaMaster® connections?
View the Help Center Article.

Specifications

Physical Specifications

Lineart Front-View and Side-View of MMR-20 Remote with Height (H), Width (W), Depth (D), and Mounting Depth (A) dimension labels
Maximum Mounting Panel Thickness 1.5 in / 38 mm
Mounting Hole Diameter 2 in / 50 mm
Rear Depth (A)* 1.16 in / 29 mm
Width (W) 2.36 in / 60 mm
Height (H) 2.36 in / 60 mm
Depth (D) 0.59 in / 15 mm

*Total mounting depth is greater (and varies by installation) with mounting bracket.
Support

Download MMR-20-BE Product Manual

USA Limited Warranty: Two (2) years from the original date of purchase Warranty Details
