MMR-11W-N2K
MMR-11W-N2K
- Wireless, NMEA 2000® Remote Controller System for use with MediaMaster® (connects to your NMEA 2000® network only)
PLEASE CALL FOR PRICING.
General Features
Wireless, NMEA 2000® Remote Controller System for use with MediaMaster®
(Note: This product is designed to connect directly to your vessel's NMEA 2000® network only.)

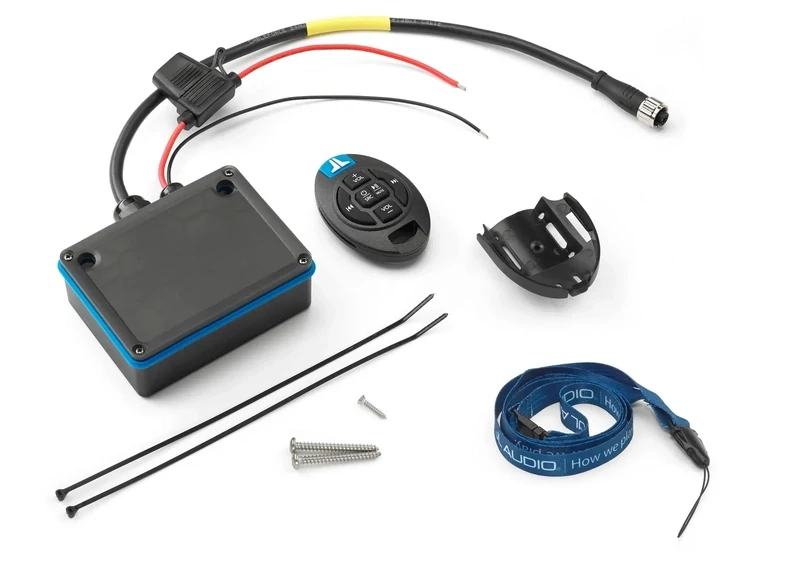

Utilizing state-of-the-art, wireless technology, the MMR-11W-N2K NMEA 2000® Remote Controller System delivers the ultimate in handheld control functionality for your MediaMaster®.
Operating at an ultra-high frequency of 2.4 GHz, the MMR-11W-N2K’s key-fob style transmitter and receiver module permit long-range, wireless control of your NMEA 2000® equipped MediaMaster® source unit, from up to 150 ft. (45 m) away. The MMR-11W-N2K transmitter features a sealed, water-resistant (IP67 rated) design, that floats and large, raised buttons for easy, on-the-move access. A verification LED is also integrated within the transmitter to provide real-time, visual confirmation (2-way) of broadcasted signals. The hideaway receiver module connects directly to your vessel's NMEA 2000® network and is programmable, with the ability to add additional (up to twenty) MMR-11W-Remote transmitters (sold separately).

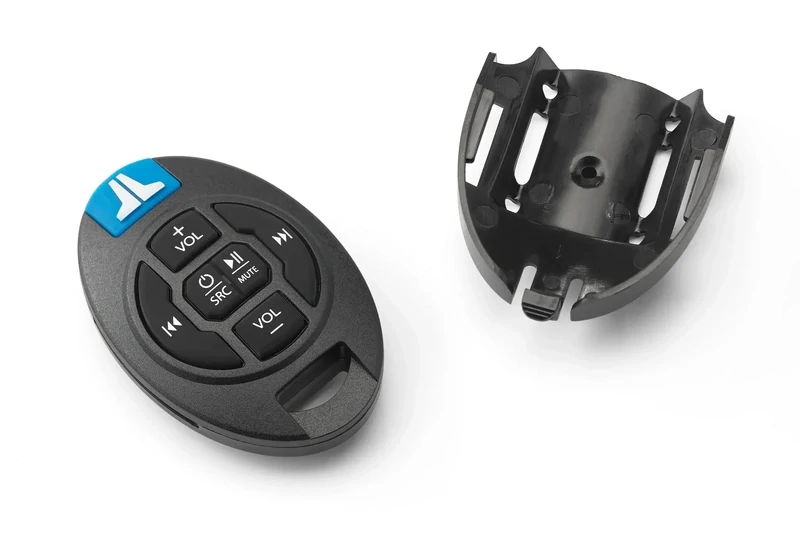

Both transmitter and receiver module are constructed using UV and salt-water rated materials and built to withstand the outdoor elements. For added convenience, a quick-release lanyard and mounting cradle are also included. The cradle’s versatile design permits installation to any flat surface or a tubular structure, such as a pipe/rail or steering wheel. MMR-11W-N2K’s transmitter includes replaceable CR2032 battery.
MediaMaster® remote control functions include:
- Power On/Off
- Source Select
- Volume Up/Down
- Track Up/Down (USB & BT)
- Track Fast-Forward/Fast-Rewind (USB)
- Favorite Up/Down (Tuner)
- Play/Pause (USB & BT)
- Mute/Unmute (Tuner & Aux)

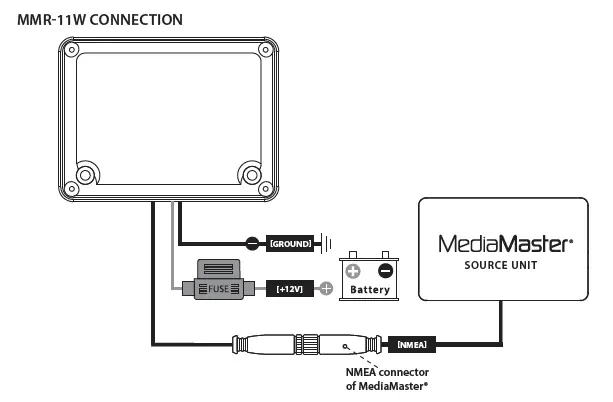

Need additional information on making MediaMaster® connections?
View the Help Center Article.
Specifications
System Specifications
| Operating Frequency | 2.4 GHz |
| Operating Range* | Up to 150 ft. (45 m) |
| Operating Temperature | -4 to 167 °F / -20 to 75 °C |
| * Maximum operating range will vary based on installation specifics and transmitter battery level. |
|
| IP Rating | IP67 |
| Battery | CR2032 (replaceable) |
| Height (H) | 2.99 in / 76 mm |
| Width (W) | 2.0 in / 50.8 mm |
| Depth (D) | 1.07 in / 27.2 mm |
Receiver Specifications
| IP Rating | IP65 |
| Height (H) | 3.01 in / 76.5 mm |
| Width (W) | 4.02 in / 102.1 mm |
| Depth (D) | 1.42 in / 36.1 mm |
Support
Download MMR-11W Product Manual
USA Limited Warranty: Two (2) years from the original date of purchase Warranty Details
