MM50
PLEASE CALL FOR PRICING.

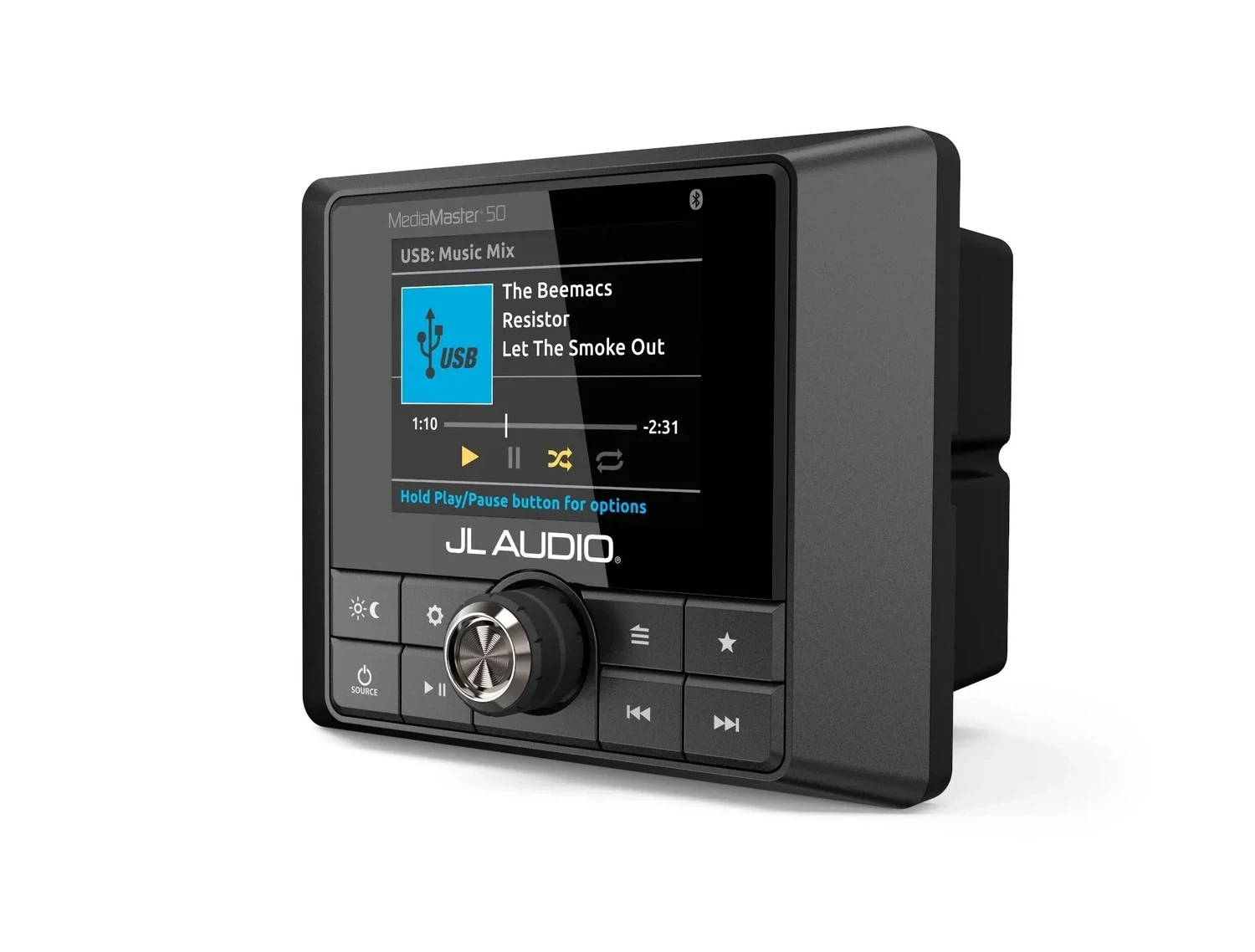

MediaMaster® - Full-featured, weatherproof marine source unit with full color LCD display - 25 Watts x 4 @ 4 Ω
The MediaMaster® 50 is a high-performance, single-chassis, powered source unit, engineered to deliver outstanding fidelity and advanced audio features on your boat, UTV and many other outdoor applications.
Equipped with a variety of mechless audio source options, the MM50 includes a Digital AM/FM Tuner, Bluetooth® connectivity, a USB connection for a USB drive or iPhone® and an Analog AUX input, all designed to ensure non-stop playback of your favorite soundtracks, no matter how bumpy the ride. A rugged, weatherproof (IP66 rated) chassis houses a 2.8-inch full-color LCD display, with separate Day/Night lighting themes for visibility, even in bright sunshine. When in motion, you will also appreciate the clean, uncluttered user interface with big text and large backlit controls.
Audio output options include a rock-solid, onboard amplifier, capable of powering your speakers with 100 watts (25W RMS x 4 @ 4 ohms) of break-through sound, as well as six channels of audiophile-quality preamp outputs from two independent main zones, plus a dedicated subwoofer zone. Each zone has its own flexible audio options and is controlled by a configurable master volume knob for quick, on-the-fly level adjustments, giving you complete command of volume levels in different areas of your boat.
With certified NMEA-2000® connectivity, the MM50 is also an ideal partner to your Garmin
, Lowrance
, Raymarine
or Simrad
Multifunction Display! (MFD)
Need additional information on making MediaMaster® connections?
View the MediaMaster® Remote Compatibility
Help Center Article.
General Specifications
Input Operating Voltage | 10 - 16 VDC |
Standby Current Draw | 100 mA |
Operating Current Draw | 15 A |
Recommended Fuse Value | 15 A |
Remote Turn-on Capacity | 500 mA (max) |
Operating Temperature Range | -4 F to +158 F (-20 C to +70 C) |
Display Size / Type | 2.8-inch / TFT LCD backlighted |
Display Resolution | 320 x 240 |
Output Channels | Zones 1&2: Two stereo pairs of RCA plugs (4V RMS) Sub: One mono pair of RCA plugs (4V RMS) |
Output Zones | Zones 1&2: Variable, Fixed or Off Sub: 500 Hz Low-Pass only |
Maximum Output Voltage | 4V RMS (Variable), Selectable 4V/2V/1V RMS (Fixed) |
Connectivity
Tuner | |
FM Tuner with RDS | 87.5 MHz to 107.9 MHz (0.2 MHz step) |
AM Tuner | 530 kHz to 1710 kHz (10 kHz step) |
Favorites | 18 presets across all tuners |
Bluetooth® | |
Profile | A2DP v1.2, AVRCP v1.4 |
Core Specification | Version 2.1 + EDR |
Codec | SBC |
Connection Range | Up to 35 ft / 11 m |
USB | |
Interface | USB 2.0 host |
Maximum Current Output | 2.1 A |
Supported Audio Formats | MP3, WAV |
Apple Compatibility | iPhone 5 or beyond (functionality contingent upon compatible iOS release) |
Physical Specifications
Height (H) | 3.74 in / 95 mm |
Width (W) | 4.65 in / 118 mm |
Depth (D1) | 2.36 in / 60 mm |
Depth (D2) | 3.67 in / 93 mm |
Mounting Hole Height (A) | 3.12 in / 80 mm |
Mounting Hole Width (B) | 3.74 in / 95 mm |
Net Weight |
Download MM50 Product Manual
USA Limited Warranty: Two (2) years from the original date of purchase Warranty Details
