M2D2-12IB
M2D2-12IB

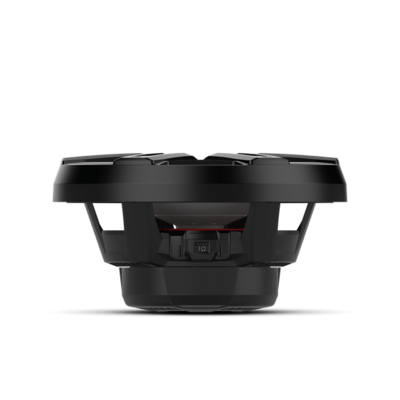

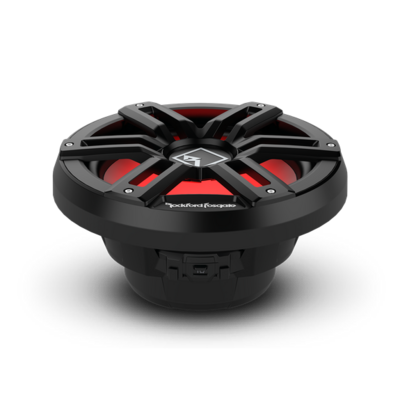

- M2 12" DVC 2Ω Color Optix™ Infinite Baffle Marine Subwoofer - Black
- The M2 series of Element Ready™ subwoofers are designed to pair with the Rockford Fosgate Color Optix™ Controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the basket. This combined with their IP67 certification make these speakers Element Ready™ and truly purpose built for marine applications. To compliment the plug and play connectivity and streamline installation, M2 subwoofers are equipped with a VersaSwitch™ to make changing impedance between 1 and 4 ohms as easy as flipping a switch. This subwoofer is optimized for Infinite Baffle installations, where an enclosure is not required. A mounting baffle is required to isolate any interaction between the front and rear wavelengths to prevent cancellation.
PLEASE CALL FOR PRICING.
General Features
- Adjust color experience to suit your taste with Rockford Fosgate® Color Optix™ controller (optional)

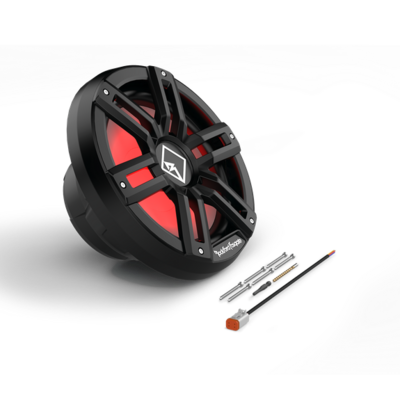

- Integrated Deutsch™/Amphenol™ connectors make wiring connections simple and error proof
- Bright, wide-angle LEDs provide rich, reliable illumination
- Element Ready™ design protects lighting from exposure
- Deutsch DT connectors incorporate front/rear silicone seals to protect against environmental ingress

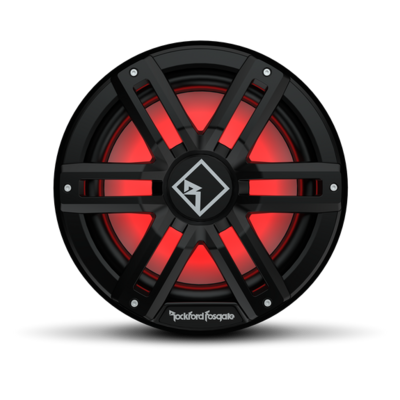

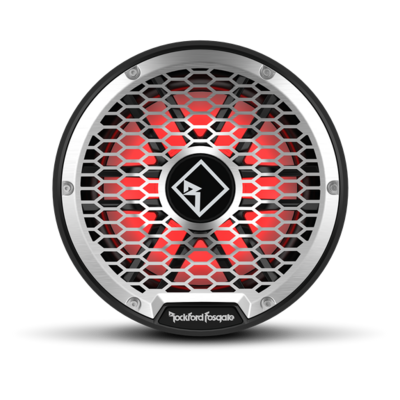

- 2-piece grille allows for interchangeable stainless-steel or "sport" option
- Optimized for infinite baffle applications when an enclosure is not an option
- VERSA impedance switch quickly allows series or parallel configuration without additional wiring
- Industry’s first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
- 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
- Gold plated marine grade brass terminals provide a corrosion resistant connection
- Provides superb low and midrange frequency reproduction with smooth high frequency roll-off
- Injection molded mineral filled polypropylene cone body with UV inhibitors
- 2-Year Warranty
- IPX6 Water Intrusion Rated
- VAST vertical attach surround technique increases effective radiating cone area up to 25%
- Klippel Verified certification program delivers the best possible loudspeakers
Technologies
Color Optix™ Control
Adjust your own bright, wide, and limitless lighting experience with the Rockford Fosgate Color Optix™ plug-and-play controller and App (sold separately.)
Element Ready™ | Subwoofers
All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.
True Marine Ecosystem
Dual Integrated Deutsch™ and Amphenol™ connections provide industry leading marine plug-and-play connectivity and flexible install options

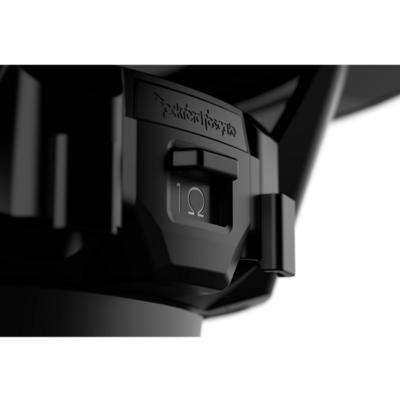

VERSA Switch
Allows you to easily switch Dual Voice Coils into a Series or Parallel configuration.
VAST Surround - Marine
The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%.
Klippel Verified
Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.
IPX6 Water Intrusion Rated
Water projected in powerful jets from any direction shall have no harmful effects.
CE Compliant
This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).
ASTM B117 Testing
ASTM B117 500Hr Salt/Fog Testing Standards
ASTM G154 Testing
ASTM G154 500Hr Accelerated UV testing
ISO60068-2-64 Vibration testing standards ensure the product is durable and can withstand vibrations found on watercraft and motorsport applications.
Specifications
- Size
- 12"
- Voice Coil Type
- Dual Voice Coil
- Nominal Impedance (Ohms)
- 1-Ohm or 4-Ohm Switchable
- Power Handling (Watts RMS)
- 400 Watts RMS
- 1,600 Watts PEAK
- Voice Coil Diameter
- 1.95" (49.53 mm)
- Magnet Weight (oz)
- 61.09 oz. (1.7 Kg)
- Frequency Response (Hz)
- 20 Hz - 750 Hz
- Fs (Hz)
- 38
- Re (Ohms)
- 3.3
- Le (mH)
- 3.43
- Sd (cm2)
- 539
- Qms
- 4.7
- Qes
- 1.04
- Qts
- 0.85
- Vas
- 64
- SPL (dB @ 1w/1m)
- 88
- SPL (dB @ 2.8v)
- 90
- Xmax (mm)
- 15
- Woofer Displacement
- 0.121 (3.43 Liters)
- Speaker Connector
- 2-pin Deutsch™ and 1/8" Spade
- Cutout Diameter
- 11” (279.4 mm)
- Mounting Depth
- 5.13" (130.4 mm)
- Shipping Weight
- 14.26 Lbs. (6.47 Kg)
Support
Knowledge Base Articles
- Color Optix speaker & subwoofer pin-outs - product advisory
- 2019, 2020, 2022 M0, M1, M2 Marine Speakers & Subs - owner's manual
Show all Knowledge Base topics
Ask Our Experts
Return Authorization
Contact the Authorized Rockford Fosgate Dealer you purchased this product from. If you need further assistance, call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.
Wiring Wizard
Available Wiring Diagrams
Please consult your amplifier owner's manual for lowest recommended impedance.
Wiring Diagram #1
Wiring Diagram #2
Wiring Diagram #3
Wiring Diagram #4
Wiring Diagram #5
Wiring Diagram #6
Wiring Diagram #7
Wiring Diagram #8
Wiring Diagram #9
Speaker Polarity
Your woofer may use one of the following to identify (+/-) terminals.
Positive +
Red Post
Purple (4Ω)
Red (8Ω)
Negative -
Black Post
No Dot
No Dot
