M2-10HB
M2-10HB
- M2 10" Color Optix™ 2-Way Horn Loaded Speaker (pr) - Black

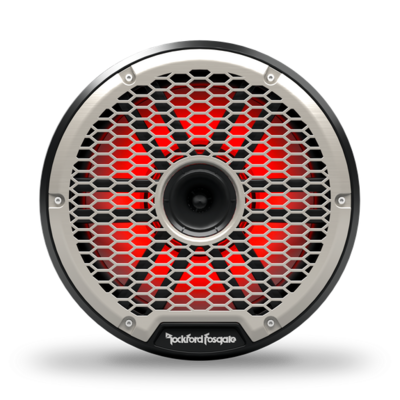

- The M2WL-10H and M2WL-10HB models are marine grade 10" full-range horn-loaded drivers engineered specifically to be BIG and LOUD! We're not kidding ... our very own product development brief states: "Rockford Fosgate developed the 10-inch horn loaded drivers to be the loudest marine driver on the market."The frequency response is uniquely tuned for "open-air" environments, so you hear the detail in your music the way it was intended to be heard. This makes the 10-inch horn loaded drivers perfect for use in salt or fresh watercraft as well as some UTV installations.Due to the long-range projection capability of the horn-loaded design, these drivers can be used where the listener will be at a distance from the speaker. Includes both Sport and Stainless Steel grille inserts.
-
PLEASE CALL FOR PRICING.
General Features
- Integrated 1” (25 mm) high efficiency horn tweeter
- 1" (25mm) High Temp Kapton™ Woofer Voice Coil Former
- Ultra-high temperature PA66 with 30% glass fill injection-molded frame with UV inhibitors
- 100% UV Stable Centrex plastic grill
- Proprietary Dual Function Input Terminals
- Gold plated marine grade brass terminals provide a corrosion resistant connection
- Integrated Deutsch RGB and Speaker receptacles
- Fully insulated flex lead wire stitched under spider
- UV and Salt-Fog resistant TPE (Thermo-Plastic Elastomer) surround
- Vented motor design with water-repelling nano coated mesh screen
- Moisture, tear and fatigue resistant Aramid fiber spider
- 12dB/Octave Crossover network
- VAST vertical attach surround technique increases effective radiating cone area up to 25%
- Injection molded mineral filled polypropylene cone body with UV inhibitors
- Co-molded surround and cone body
- Fully sealed integrated concealed crossover (ICC) network
- Optically clear UV stable Encapsulated LED PCB
- Multiplexed RGB Input
- Metallized Polyester Film Capacitors
- 2-Year Warranty
- Sold in pairs (2 each)
- Ultra-Bright, Wide Angle Tri-Color Surface Mount LED's with Flat Mold Lenses
Technologies
CEA-2031
Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.
Klippel Verified
Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.
Vast + Co-Molded Surround
The vertically attached surround is co-molded to the cone to provide an incredibly strong bond at the mounting point.
ICC Crossover
The Integrated Concealed Crossover hides the crossover inside the basket, creating a cleaner look and easier installation.
This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).
Specifications
- Speaker Type
- 2-Way
- Speaker Model
- Tweeter Size
- 1” (25.4 mm) High Efficiency Horn Tweeter
- Tweeter Mounting Depth
- N/A
- Midrange Size (Nominal Diameter)
- 10"
- Midrange Mounting Depth
- 4.66 in (118.4 mm)
- Crossover
- 12dB/Octave
- Frequency Response
- 20 Hz - 25 kHz
- Power Handling (RMS)
- 300 Watts RMS
- 1200 Watts PEAK
- Nominal Impedance (Ohms)
- 4-Ohm
- Sensitivity (dB @ 1w/1m)
- 94
- Sensitivity (dB @ 2.83V)
- 97

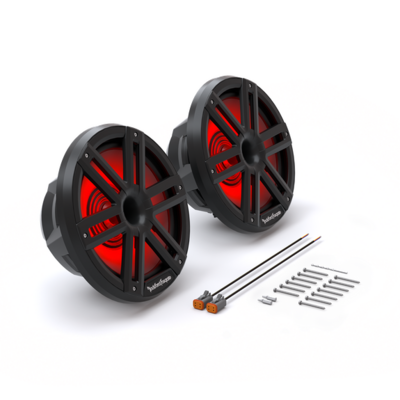

- In The Box
- 2) 4-pin Deutsch harness ( 1130-74637-01 )
- 2) Stainless grills
- 2) Black sport grills
- 2) Driver bits
- 1) Drill bit
- 12) Mounting screws
- Mounting Hardware
- Yes
- Grille/Trim Ring Included
- Yes
- Shipping Weight
- 10.2 Lbs. (4.6 Kg.)
Support
Return Authorization
Contact the Authorized Rockford Fosgate Dealer you purchased this product from. If you need further assistance, call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.
