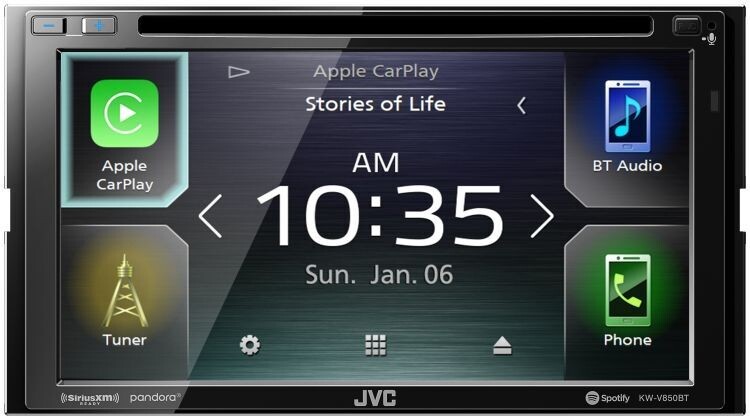

KW-V850BT
KW-V850BT
- Multimedia Receiver featuring 6.8" Clear Resistive Touch Monitor / Apple CarPlay / Android Auto / High-Resolution Audio / iDatalink Maestro Ready / Bluetooth® / 13-Band EQ
Specifications
Monitor
| Screen Size | 6.8" Wide VGA |
| Touch Panel | Clear Resistive |
| Gesture Touch Control | Yes |
| Customizable GUI | Yes |
| Key Illumination Color | Blue |
| Dimmer | Yes |
| Multilingual Display | Yes[4] |
| Wallpaper Capture | Yes |
| Live Wallpaper | Yes |
| MP3 Compatible with Tag | CD / DVD / USB |
| WMA Compatible with Tag | CD / DVD / USB |
| WAV Compatible with Tag | CD / DVD / USB |
| AAC Compatible with Tag | CD / DVD / USB |
| FLAC Compatible with Tag | CD / DVD / USB( Up to192kHz/24bit ) |
| H.264 Compatible | CD / DVD / USB |
| WMV Compatible | CD / DVD / USB |
| MPEG 1/2 Compatible | CD / DVD / USB |
| MPEG 4 Compatible | CD / DVD / USB |
| AVI/MKV Compatible | CD / DVD / USB |
| JPEG File Playback | CD / DVD / USB |
| PNG File Playback | CD / DVD / USB |
| BMP File Playback | CD / DVD / USB |
| CD-R/RW Compatible | Yes |
DVD Player
| DVD-R/-RW, +R/+RW Compatible | Yes |
| Video CD Playback | Yes |
| Built-in Bluetooth[1] | Yes (Version 5.0, Wired-Mic included) |
| Hands Free Call | Yes (HFP1.7 Wideband Speech) |
| 2 Phones Full-Time Connection | Yes |
| Audio Streaming & Control (A2DP, AVRCP) | Yes |
| 5 BT-Audio Connection | Yes |
| Voice Dialing (voice recognition compatible mobile phone required) | Yes |
| Phone Book Access Profile (PBAP) | Yes |
| Alphabetical Search for Phone Book | Yes |
| Auto Pairing for iPhone/Android | Yes |

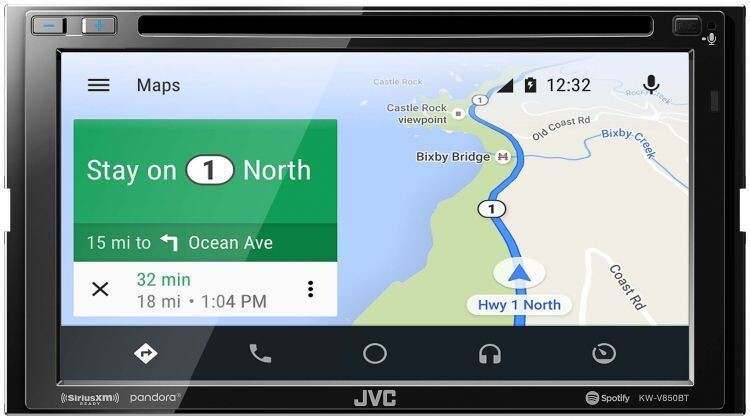

| Android Auto[2] | Yes (via Wi-Fi or USB) |
| Android Music Playback | Yes (via Bluetooth(R)) |

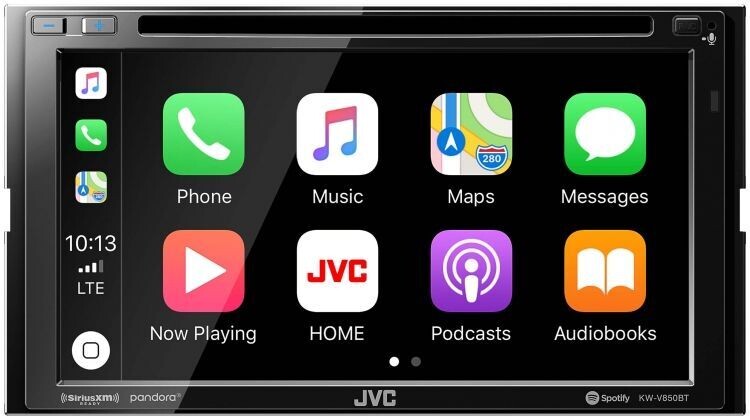

| CarPlay[3] | Yes (via USB) |
| iPod/iPhone Music Playback | Yes (via USB or Bluetooth(R)) |
USB
| USB Port | x 1 (High Speed) |
| Position | Rear |
| USB Power Supply | Yes (1.5A High Current Charging) |
| Drive Change Mode for Mass Storage Class (selectable from internal/external memory) | Yes |
| SiriusXM Ready | Yes |
| Radio Broadcast Data System (RBDS) | Yes |
| Preset Stations | 20(FM:15ch, AM:5ch) |
| Auto Memory Entry | Yes |
| Frequency Range | 87.9 - 107.9MHz |
| Frequency Range | 530-1,700kHz |
Audio
| Maximum Power Output (Front & Rear) | 50Wx4 |
| Full Bandwidth Power (Front & Rear) | 22W x 4 (Full Bandwidth Power, at less than 1% THD) |
| EQ | Yes (13-Band Graphic EQ) |
| Preset EQ | Yes (8Preset + 4user) |
| Bass Boost | Yes |
| High-Pass Filter/Low-Pass Filter | Yes/Yes |
| 3-Way X'over | Yes |
| High-Resolution Audio | Yes |
| K2 Technology | Yes |
| Space Enhancement | Yes |
| Sound Response | Yes |
| Sound Lift | Yes |
| Volume Link EQ | Yes |
| Time Alignment | Yes |
| Dual-Zone Function | Yes |

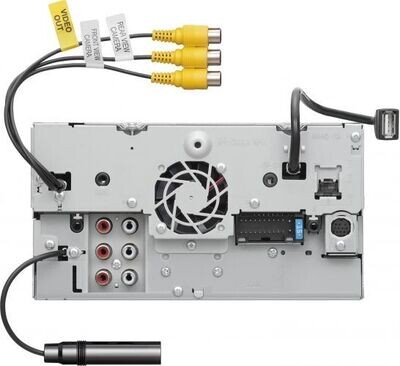

Inputs and Outputs
| AV Input | mini jack |
| Video Out | RCA |
| Rear view camera Input | Yes |
| Front view camera Input | Yes |
| Line Output Terminals | 3 Pairs (Front + Rear + Subwoofer) |
| Pre-output Level/Impedance | 4.0V / 10k ohms |
| Subwoofer Output with Level/Frequency Control | Yes |
General
| iDatalink Maestro Ready | Yes |
| Remote Control Application | Yes |
| Back Up Memory | Yes |
| Viewing Angle Adjustment | Yes (0 - 20 degree, default : 0 degree) 4 steps |
| Wireless Remote Control | Ready (RM-RK258 required) |
| Steering Remote Control Ready | Yes |
| Installation Size | 7" x 3-15/16" x 6-2/16" (178 x 100 x 155 mm) |
| Weight | 4.63 lbs. (2.1kg) |
| Unit weight in individual package | 6.17 lbs. (2.8kg) |
