KW-M865BW
+3

KW-M865BW

00227
C$945.99
In stock
1
Product Details

KW-M865BW

  • Digital Media Receiver featuring 6.8" Clear Resistive Touch Monitor / Wireless Apple CarPlay / Wireless Android Auto / 4-Cam Input / High-Resolution Audio / iDatalink Maestro Ready / Bluetooth® / 13-Band EQ

KW-Z1000W

  • Digital Media Receiver featuring 10.1" HD Screen / Wireless Apple CarPlay / Wireless Android Auto / HDMI Input / 4-Cam Input / High-Resolution Audio / iDatalink Maestro Ready / Bluetooth® / 13-Band EQ
Specifications

Monitor

Screen Size 6.8"W VGA Screen
Touch Panel Clear Resistive
Gesture Touch Control Yes
Customizable GUI Yes
Key Illumination Color Blue
Dimmer Yes
Multilingual Display Yes[4]
Wallpaper Capture Yes
Live Wallpaper Yes

Media Playback
MP3 Compatible with Tag USB
WMA Compatible with Tag USB
WAV Compatible with Tag USB
AAC Compatible with Tag USB
FLAC Compatible with Tag USB( Up to192kHz/24bit )
H.264 Compatible USB
WMV Compatible USB
MPEG 1/2 Compatible USB
MPEG 4 Compatible USB
AVI/MKV Compatible USB
JPEG File Playback USB
PNG File Playback USB
BMP File Playback USB

Bluetooth Control
Built-in Bluetooth[1] Yes (Version 5.0, Wired-Mic included)
Hands Free Call Yes (HFP1.7 Wideband Speech)
2 Phones Full-Time Connection Yes
Audio Streaming & Control (A2DP, AVRCP) Yes
Supported Audio Formats AAC / SBC
5 BT-Audio Connection Yes
Voice Dialing (voice recognition compatible mobile phone required) Yes
Phone Book Access Profile (PBAP) Yes
Alphabetical Search for Phone Book Yes
Auto Pairing for iPhone/Android Yes

Wi-Fi Control
Built-in Wi-Fi Yes

Android Control
Android Auto[2] Yes (via Wi-Fi or USB)
Mirroring for Android Yes (via Wi-Fi or USB*) *via USB : Need mirroring App
Android Music Playback Yes (via Bluetooth(R))

iPod/iPhone Control
CarPlay[3] Yes (via Wi-Fi or USB)
Mirroring for iPhone Yes (via USB) *Need mirroring App
iPod/iPhone Music Playback Yes (via USB or Bluetooth(R))

USB

USB Port x 2 (High Speed)
Position Rear
USB Power Supply Yes (1.5A High Current Charging)
Drive Change Mode for Mass Storage Class (selectable from internal/external memory) Yes

Radio Tuner
SiriusXM Ready Yes
Radio Broadcast Data System (RBDS) Yes
Preset Stations 20(FM:15ch, AM:5ch)
Auto Memory Entry Yes
FM
Frequency Range 87.9 - 107.9MHz
AM
Frequency Range 530-1,700kHz

Audio

Maximum Power Output (Front & Rear) 50Wx4
Full Bandwidth Power (Front & Rear) 22W x 4 (Full Bandwidth Power, at less than 1% THD)
EQ Yes (13-Band Graphic EQ)
Preset EQ Yes (8Preset + 4user)
Bass Boost Yes
High-Pass Filter/Low-Pass Filter Yes/Yes
3-Way X'over Yes
High-Resolution Audio Yes
K2 Technology Yes
Space Enhancement Yes
Sound Response Yes
Sound Lift Yes
Volume Link EQ Yes
Time Alignment Yes
Dual-Zone Function Yes

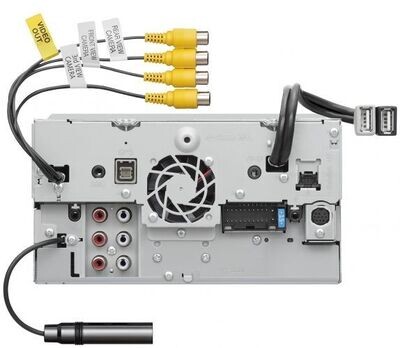

Inputs and Outputs

AV Input mini jack (AV-IN or CAM4 switchable)
Video Out RCA
HDMI Terminal Yes
Rear view camera Input Yes
Front view camera Input Yes
3rd Camera Input Yes
Line Output Terminals 3 Pairs (Front + Rear + Subwoofer)
Pre-output Level/Impedance 5.0V / 10k ohms
Subwoofer Output with Level/Frequency Control Yes


General

iDatalink Maestro Ready Yes
Remote Control Application Yes
Back Up Memory Yes
Face Type
Viewing Angle Adjustment Yes (0 - 20 degree, default : 0 degree) 4 steps
Wireless Remote Control Ready (RM-RK258 required)
Steering Remote Control Ready Yes
Dimensions (W x H x D)
Installation Size 7" x 3-15/16" x 6-2/16" (178 x 100 x 155 mm)
Weight 3.75 lbs. (1.7kg)
Unit weight in individual package 2.5kg
