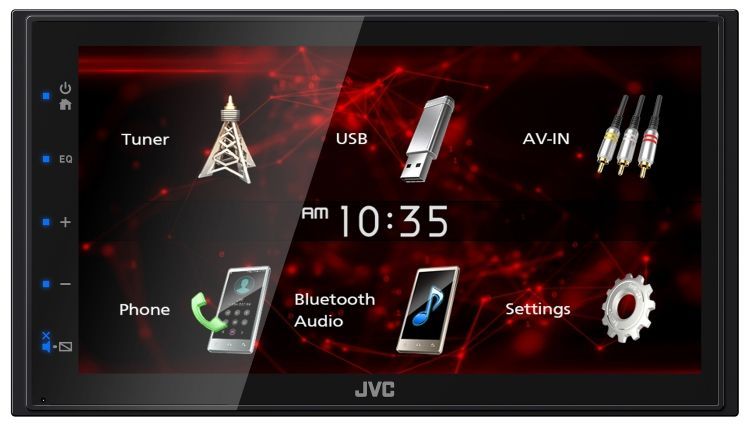

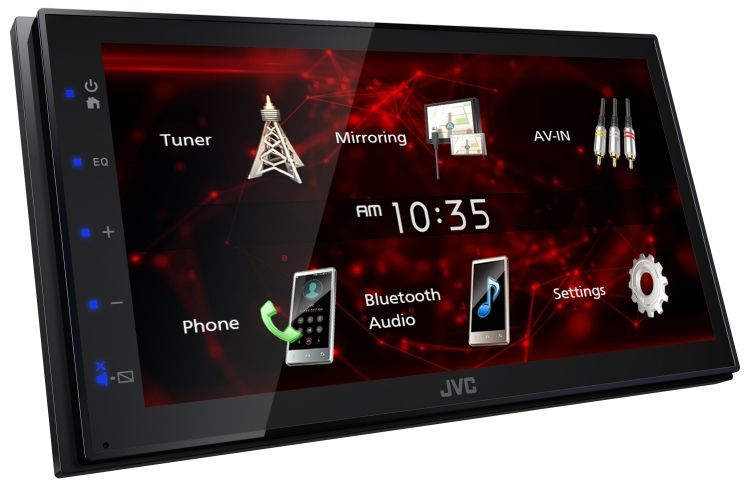

KW-M780BT
KW-M780BT
- Digital Media Receiver featuring 6.8-inch Capacitive Touch Control Monitor (6.8" WVGA) / Apple CarPlay / Android Auto / USB Mirroring for Android Phones/ iDatalink Maestro Ready / HDMI Input / Bluetooth® / 13-Band EQ / Short Chassis
Features
SMARTPHONE
INTEGRATION
JVC multimedia receivers interface your smartphone with your car to enrich your driving experience. Enjoy your favorite apps and view content on a big screen, in comfort and safety.
Apple CarPlay® – Connect via USB
A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.
Some features, applications, and services are not available in all areas.
For details, see: www.apple.com/ios/feature-availability//#applecarplay-applecarplay
Android Auto™ – Connect via USB
Android Auto was designed with safety in mind. With larger touch targets, a simplified interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.
*To use Android Auto on your car display, youʼll need an Android phone running Android 6 or higher, an active data plan, and the Android Auto app.
*Some Features, applications, and services are not available in all areas. For details, see:
www.android.com/auto
Mirroring for Android Phone – Connect via USB
By installing the “Mirroring OA for JVC” app, your Android phone is seamlessly displayed on the receiver's screen via USB. You can enjoy a variety of apps such as Waze, YouTube, and Instagram. Touch control is possible from both screen and smartphone.
HDMI™ Mirroring for Smartphones
Display your smartphone screen on the receiverʼs display via an HDMI cable and third party adapter.
* KS-U70
, optional HDMI cable and smartphone specific third party adapter are required (sold separately).
Specifications
-
Monitor
- Screen Size
- 6.8"W VGA Screen
- Touch Panel
- Capacitive
- Gesture Touch Control
- Yes
- Customizable GUI
- Yes
- Key Illumination Color
- Variable
- Dimmer
- Yes
- Multilingual Display
- Yes[4]
- Wallpaper Capture
- Yes
Media Playback
- MP3 Compatible with Tag
- USB
- WMA Compatible with Tag
- USB
- WAV Compatible with Tag
- USB
- AAC Compatible with Tag
- USB
- FLAC Compatible with Tag
- USB
- H.264 Compatible
- USB
- WMV Compatible
- USB
- MPEG 1/2 Compatible
- USB
- MPEG 4 Compatible
- USB
- MKV Compatible
- USB
Bluetooth Control
- Built-in Bluetooth[1]
- Yes (Wired-Mic included)
- Hands Free Call
- Yes (HFP1.8 Wideband Speech)
- 2 Phones Full-Time Connection
- Yes
- Audio Streaming & Control (A2DP, AVRCP)
- Yes
- Supported Audio Formats
- AAC / SBC
- 5 BT-Audio Connection
- Yes
- Voice Dialing (voice recognition compatible mobile phone required)
- Yes
- Phone Book Access Profile (PBAP)
- Yes
- Alphabetical Search for Phone Book
- Yes
- Auto Pairing for iPhone/Android
- Yes (Android only)
Android Control
- Android Auto[2]
- Yes (via USB)
- Mirroring for Android
- Yes (via USB) *Need mirroring App
- Android Music Playback
- Yes (via Bluetooth(R))
iPod/iPhone Control
- CarPlay[3]
- Yes (via USB)
- iPhone Music Playback
- Yes (via USB(CarPlay) or Bluetooth(AVRCP))
USB
- USB Port
- x 1 (High speed)
- Position
- Rear
- USB Power Supply
- Yes (1.5A High Current Charging)
- Drive Change Mode for Mass Storage Class (selectable from internal/external memory)
- Yes
Radio Tuner
- SiriusXM Ready
- Yes
- Radio Broadcast Data System (RBDS)
- Yes
- Preset Stations
- 20(FM:15ch, AM:5ch)
- FM
- Frequency Range
- 87.9 - 107.9MHz
- AM
- Frequency Range
- 530-1,700kHz
Audio
- Maximum Power Output (Front & Rear)
- 50Wx4
- Full Bandwidth Power (Front & Rear)
- 22W x 4 (Full Bandwidth Power, at less than 1% THD)
- EQ
- Yes (13-Band Graphic EQ)
- Preset EQ
- Yes (8Preset + 4user)
- Bass Boost
- Yes
- High-Pass Filter/Low-Pass Filter
- Yes/Yes
- 3-Way X'over
- Yes
- Digital Track Expander
- Yes
- Space Enhancement
- Yes
- Sound Response
- Yes
- Sound Lift
- Yes
- Volume Link EQ
- Yes
- Time Alignment
- Yes

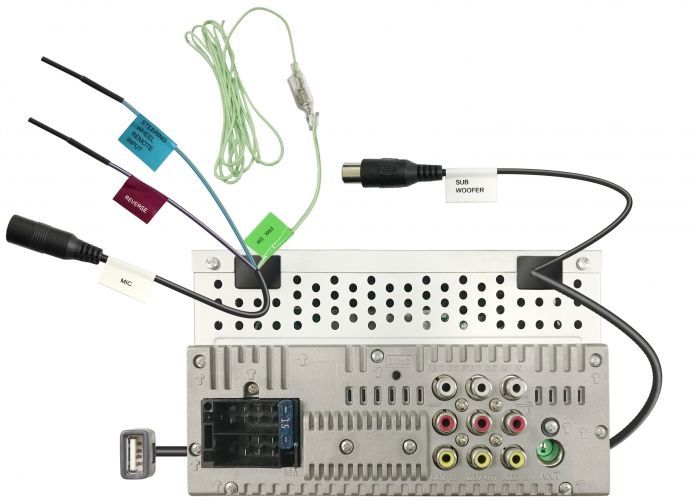

Inputs and Outputs
- AV Input
- mini jack (AV-IN or Camera-IN switchable) x 1
- Video Out
- RCA x 1
- HDMI Terminal
- Yes
- Rear view camera Input
- Yes
- Front view camera Input
- Yes
- Line Output Terminals
- 3 Pairs (Front + Rear + Subwoofer)
- Pre-output Level/Impedance
- 4.0V / 10k ohms
General
- iDatalink Maestro Ready
- Yes
- Back Up Memory
- Yes
- Face Type
- Viewing Angle Adjustment
- Yes (0 - 20 degree, default : 0 degree)
- Short Chassis
- Yes (2-15/16inch, 75mm)
- Wireless Remote Control
- Ready (RM-RK258 required)
- Steering Remote Control Ready
- Yes
- Dimensions (W x H x D)
- Installation Size
- 7-1/16" x 3-15/16" x 2-15/16" (180 x 100 x 75 mm)
- Weight
- 2.7 lbs. (1.2kg) Including Sleeve and Trim plate
- Unit weight in individual package
- 4.2 lbs. (1.9kg)
[1]Available functions depend on mobile phone.
[2]Compatible Android phone and compatible active data plan required.
[3]Supported on iPhone 6s, 6s Plus, 7, 7Plus, 8, 8Plus, X, XS, XS Max, XR, 11, 11Pro, 11Pro Max, SE(1st G), SE(2nd G),12, 12 mini, 12Pro, 12Pro Max, 13, 13 mini, 13Pro, 13Pro Max, 14, 14Plus, 14Pro, 14Pro Max, 15, 15Plus, 15Pro, 15ProMax. The service may not be available in certain countries.
[4]Multilingual (English / Spanish / French)
