KW-M180BT
KW-M180BT

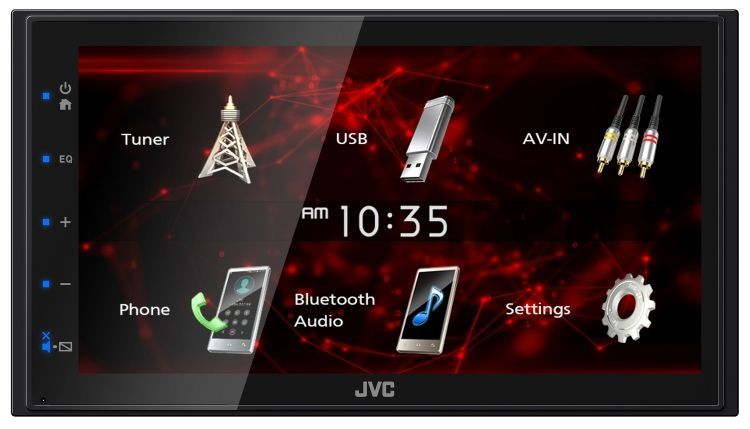

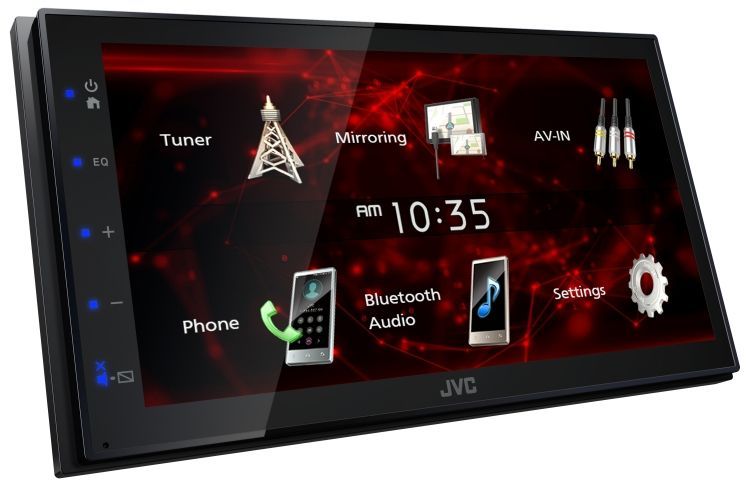

- Digital Media Receiver featuring 6.8" WVGA Capacitive Monitor / USB Mirroring for Android™ / Bluetooth® / 13-Band EQ / Short Chassis / Fast Bootup
Features
USB Mirroring for Android™
Seamlessly display your Android phone on the JVC screen via USB. Touch control is supported from both screen and smartphone.
How to USE
Step-1 : Simply download the free Mirroring for JVC app.
Step-2 : Connect your smartphone via Bluetooth and USB.
Mirroring OB for JVC AppBluetooth® Wireless Technology
Bluetooth Voice Recognition
Improved Sound Quality with HFP 1.6 Wideband Speech
Improved sound quality thanks to HD Voice contributes to a higher level of voice recognition accuracy.
Bluetooth AVRCP1.5 for Versatile Song Selection
In addition to repeat and random playback of music files, you can also easily search for songs using the browsing function. Just look for and choose the song you want to hear from the folder name and song name lists.
Sound Optimization
Time Alignment
By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.
13-Band Equalizer
Use the 13-Band Equalizer to manually adjust the sound to your taste.
General
Fast Bootup
Thanks to the new fast bootup feature, the Receiver is ready to use shortly after powering on.
Capacitive Touchscreen
Capacitive touch screen has high clarity and allows for easier functioning with lighter contact and greater accuracy.
Various Formats Compatible
Supports a variety of file formats for audio and video playback.
Short Chassis
The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.
Rear View Camera Ready
The Rear View Camera input allows you to connect an optional rear view camera (sold separately).
Rear view cameras allow you to safely back up your vehicle, monitor towing, and more.
- Waterproof design
- 1/4" color CMOS sensor with effective 380,000 pixels
- Flexible mounting bracket included
- Camera dimensions (WxHxD): 23.4mm x 23.4mm x 23.9mm
- Weight: 21g (Camera only)
Steering Wheel Remote Control Ready
Factory steering wheel control functions can be retained with a third-party adapter (sold separately).
Remote Control (Optional)
Remote control (RM-RK258) is optionally available.
Specifications
-
KW-M180BT
Monitor
- Screen Size
- 6.8"Wide VGA
- Touch Panel
- Capacitive
- Key Illumination Color
- Blue
- Dimmer
- Yes
- Multilingual Display
- Yes[2]
Media Playback
- MP3 Compatible with Tag
- USB
- WMA Compatible with Tag
- USB
- WAV Compatible with Tag
- USB
- AAC Compatible with Tag
- USB
- FLAC Compatible with Tag
- USB
- H.264 Compatible
- USB
- MPEG 1/2 Compatible
- USB
- MPEG 4 Compatible
- USB
- MKV Compatible
- USB
Bluetooth Control
- Built-in Bluetooth[1]
- Yes (Wired-Mic included)
- Hands Free Call
- Yes (HFP1.6 Wideband Speech)
- Audio Streaming & Control (A2DP, AVRCP)
- Yes
- Supported Audio Formats
- AAC / SBC
- Voice Dialing (voice recognition compatible mobile phone required)
- Yes
- Phone Book Access Profile (PBAP)
- Yes
Android Control
- Mirroring for Android
- Yes (via USB)
- Android Music Playback
- Yes (via Bluetooth(R))
iPod/iPhone Control
- iPhone Music Playback
- Yes (via USB or Bluetooth(R))
USB
- USB Port
- x 1 (High speed)
- Position
- Rear
- USB Power Supply
- Yes (1.5A)
Radio Tuner
- Radio Broadcast Data System (RBDS)
- Yes
- Preset Stations
- 30 (6ch x 5band)
- Auto Memory Entry
- Yes
- FM
- Frequency Range
- 87.9-107.9MHz
- AM
- Frequency Range
- 530-1,700kHz
Audio
- Maximum Power Output (Front & Rear)
- 45W x 4
- EQ
- Yes (13-Band Graphic EQ)
- Preset EQ
- Yes (7Preset + 3user)
- Bass Boost
- Yes
- High-Pass Filter/Low-Pass Filter
- Yes/Yes
- Time Alignment
- Yes

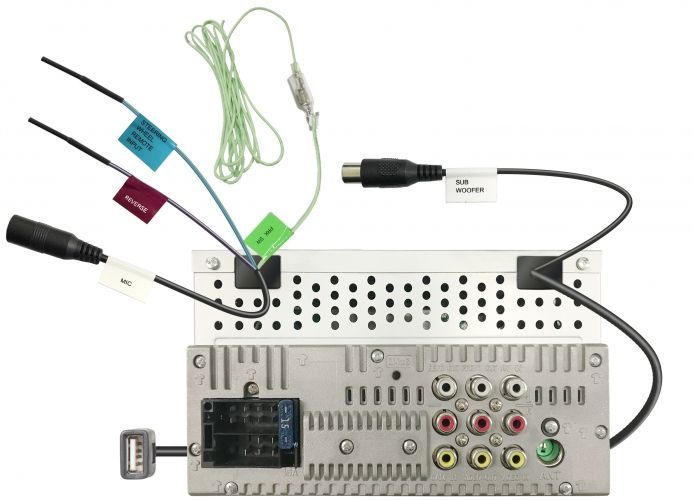

Inputs and Outputs
- AV Input
- RCA x 1
- Video Out
- RCA x 1
- Rear view camera Input
- Yes
- Line Output Terminals
- 3 Pairs (Front (L/ R), Rear (L/ R), Sub.W (Mono) x1)
- Pre-output Level/Impedance
- 2V / 10k ohms
- Subwoofer Output with Level/Frequency Control
- Yes
General
- Face Type
- Fixed
- Short Chassis
- Yes (75mm)
- Wireless Remote Control
- Ready (RM-RK258 required)
- Steering Remote Control Ready
- Yes
- ISO Connector
- Yes
[2]Multilingual (English / Spanish / French)
Product Support
KW-M180BT
Manual
Application & Firmware
- Smartphone Linkage
- Mirroring OB for JVC
- ---
- Firmware Updates
- AV Receiver Updates
- 2023/12/19
