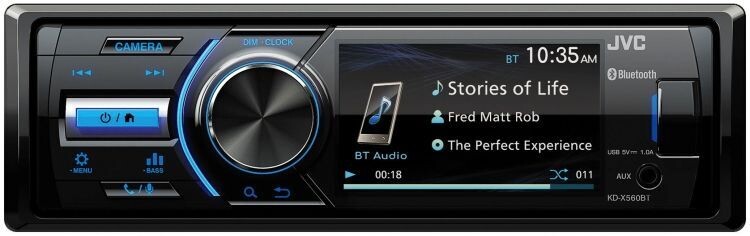

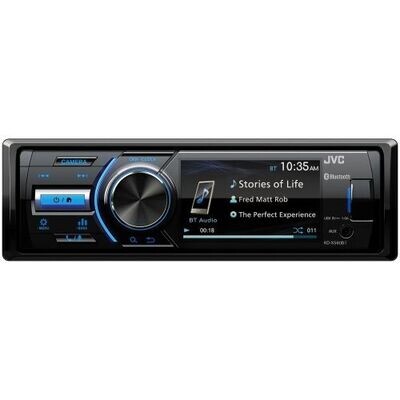

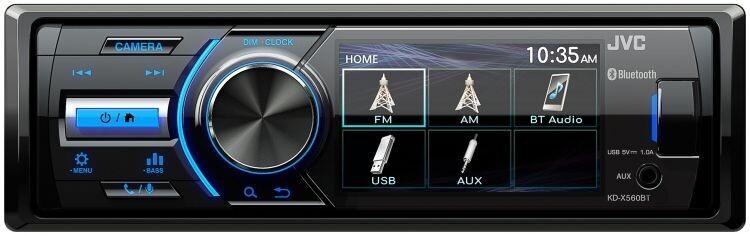

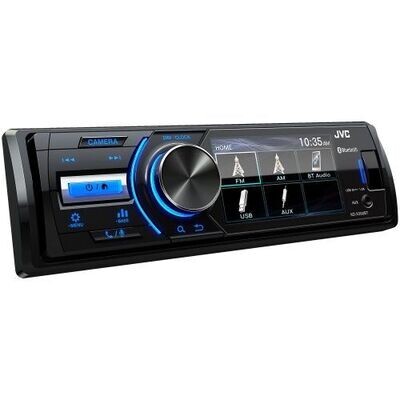

KD-X560BT
KD-X560BT
- Digital Media Receiver featuring Bluetooth / USB / 3" Color Display / Conformal Coated PCB / Camera-Input / 13-Band EQ
Specifications
Monitor
| Screen Size | 3.0" 16:9 QVGA |
| Key Illumination Color | Blue |
| Dimmer | Yes (1/2/Off) |
| Multilingual Display | Yes[2] |
| MP3 Compatible with Tag | Yes |
| WMA Compatible with Tag | Yes |
| WAV Compatible with Tag | Yes ( Up to 96kHz/24bit ) |
| AAC Compatible with Tag | Yes |
| FLAC Compatible with Tag | Yes (Up to 96kHz/16bit ) |
| H.264 Compatible | Yes |
| MPEG 1/2 Compatible | Yes |
| MPEG 4 Compatible | Yes |
| AVI/MKV Compatible | Yes |
| JPEG File Playback | Yes |
| PNG File Playback | Yes |
| BMP File Playback | Yes |
| Built-in Bluetooth[1] | Yes (Version 4.2, Wired-Mic included) |
| Hands Free Call | Yes (HFP1.5 Wideband Speech) |
| Audio Streaming & Control (A2DP, AVRCP) | Yes |
| Phone Book Access Profile (PBAP) | Yes |
| Android Music Playback | Yes (via Bluetooth(R)) |
| iPod/iPhone Music Playback | Yes (via USB or Bluetooth(R)) |
| USB Port | x 1 (High speed) |
| Position | Front |
| USB Power Supply | Yes (1.0A) |
| Radio Broadcast Data System (RBDS) | Yes |
| Preset Stations | 30 (FM:15,:AM:15) |
| Frequency Range | 87.9 - 107.9MHz |
| Maximum Power Output (Front & Rear) | 45W x 4 |
| Full Bandwidth Power (Front & Rear) | 16W x 4 |
| EQ | Yes (13-Band Graphic EQ) |
| Preset EQ | Yes (9-Preset) |
| Bass Boost | Yes |
| High-Pass Filter/Low-Pass Filter | Yes / Yes |
| Time Alignment | Yes |
| Front AUX Input | Yes |
| Rear view camera Input | Yes |
| Line Output Terminals | 3 Pairs (Front + Rear + Subwoofer) |
| Pre-output Level/Impedance | 2.0V / 10k ohms |
| Wireless Remote Control | Ready (RM-RK258 required) |
| Steering Remote Control Ready | Yes |
| ISO Connector | Yes |
| Installation Size | 7-3/16" x 2-1/16" x 4-5/8" (182 x 52 x 117 mm) |
| Weight | 1.65 lbs. (0.75kg) |
| Unit weight in individual package | 2.45 lbs. (1.11kg) |
Product Support
Manual
| Instruction Manual (America) | English | 0.92MB | View |
| Quick Start Guide (America) | English, French, Spanish | 1.38MB | View |
| Instruction Manual (America) | English | 0.94MB | View |
| Instruction Manual (America) | English | 0.95MB | View |
| Compatibility | iPod and iPhone Compatibility |
| Compatibility | Audio File Compatibility |
| Firmware Updates | CD Receiver/ Digital Media Receiver Updates (2019/12/13) |
