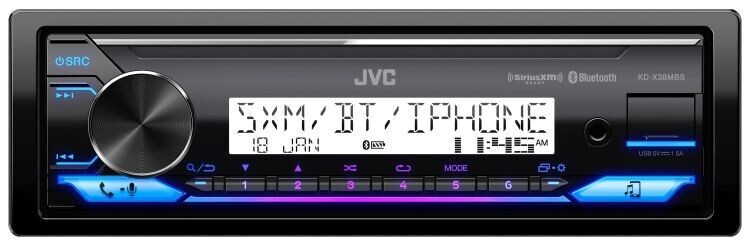

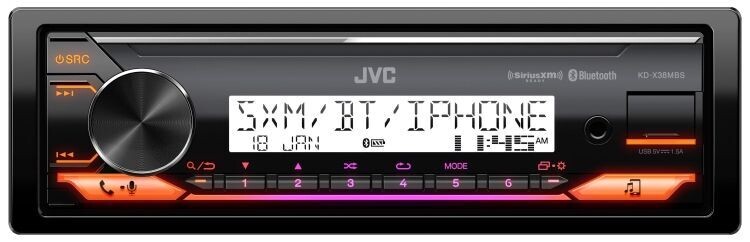

KD-X38MBS
KD-X38MBS
- Digital Media Receiver featuring Bluetooth® / USB / Backlit Display / Conformal Coated PCB / 13-Band EQ / Variable-Color Illumination / JVC Remote App Compatibility
Specifications
Display
| Display Type | 2-Line VA LCD Display |
| LCD Color | Black |
| Key Color | Variable Color |
| Music Sync. Effect | Yes |
| Spanish Text Display Compatible | Yes |
| French Text Display Compatible | Yes |
| Auto Dimmer | Yes |
| Brightness Control | Yes |
| MP3 Compatible with Tag | USB |
| WMA Compatible with Tag | USB |
| WAV Compatible with Tag | USB |
| AAC Compatible with Tag | USB |
| FLAC Compatible with Tag | USB |
| Built-in Bluetooth[1] | Yes (Ver 4.2, Wired-Mic included) |
| Hands Free Call | Yes (HFP 1.7.1) |
| 2 Phones Full-Time Connection | Yes |
| Audio Streaming & Control (A2DP, AVRCP) | Yes (AVRCP 1.6.1) |
| Supported Audio Formats | AAC / SBC |
| 5 BT-Audio Connection [JVC Streaming DJ] | Yes |
| Voice Dialing (voice recognition compatible mobile phone required) | Yes |
| Phone Book Access Profile (PBAP) | Yes |
| iPhone & Android Automatic Pairing | Yes (iPhone only) |
| Low Battery Information | Yes |
| Android Music Playback | Yes (via Bluetooth(R)) |
| iPod/iPhone Music Playback | Yes (via USB or Bluetooth(R)) |
| Position | Front |
| USB Power Supply | Yes (1.5A) |
| Drive Change Mode for Mass Storage Class | Yes |
| AUX Input | 1 (Front) |

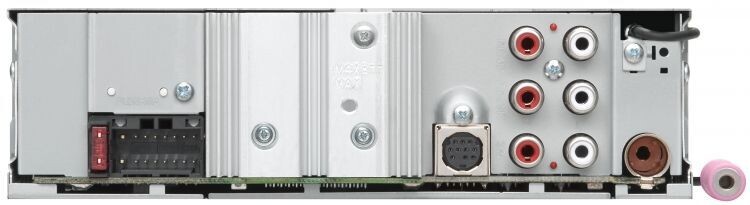

| Line Output Terminals (Pair) | 3 Pairs (Front + Rear + Subwoofer) |
| Pre-Output Level | 4.0V |
| Subwoofer Output with Level/Frequency Control | Yes (Level -50 to +10) |
| Subwoofer Output Level | 4.0V |
| SiriusXM Ready | Yes |
| Radio Data Broadcast System (RBDS) | Yes |
| Preset Stations | 18FM + 6AM |
| Strong Station Memory (for FM) | Yes |
| Radio Timer | Yes (once/Daily/Weekly) |
| Tuner Preset Memory (for power disconnection) | Yes |
| Frequency Range (Frequency Step) | 87.9 - 107.9MHz (200kHz) |
AM
| Frequency Range (Frequency Step) | 530 - 1,700kHz (10kHz) |
| Maximum Power Output | 50W x 4 / 50W x 2 +Subwoofer (4 ohms) 50W x 1 |
| Full Bandwidth Power (at less than 1%THD) | 22W x 4 |
| Subwoofer Direct Connection (Mono Lch) | Yes |
| EQ | Yes (13-Band Graphic EQ) |
| Preset EQ | Yes (11-Preset) |
| Bass Boost | Yes |
| Loudness Control | Yes |
| High-Pass Filter/Low-Pass Filter | Yes/Yes |
| K2 Technology | Yes |
| Time Alignment | Yes |
| Space Enhancement | Yes |
| Sound Response | Yes |
| Sound Lift | Yes |
| Volume Link EQ | Yes |
| Short Chassis | Yes |
| Back Up Memory | Yes |
| Detachable Face Panel | Yes |
| Wired Remote Control | Ready (RM-RK62M required) |
| Steering Remote Control Ready | Yes |
| Remote Control Application | Yes |
| Antirust-coating for Marine | Yes |
| Installation Size | 7-3/16" x 2-1/16" x 3-15/16" (182 x 53 x 100mm) |
| Weight | 1.3 lbs. (0.6kg) |
| Unit weight in individual package | 2.0 lbs. (0.9kg) |
Product Support
Manual
| Quick Start Guide (America) | English, French, Spanish | 0.58MB | View |
| Instruction Manual (America) | English, French, Spanish | 1.32MB | View |
| Compatibility | iPod and iPhone Compatibility |
| Smartphone Linkage | JVC Remote |
| Firmware Updates | CD Receiver/ Digital Media Receiver Updates
(2023/01/17) |
