DSR1
DSR1
- 8-Channel Interactive Signal Processor w/ Integrated iDatalink Maestro Module

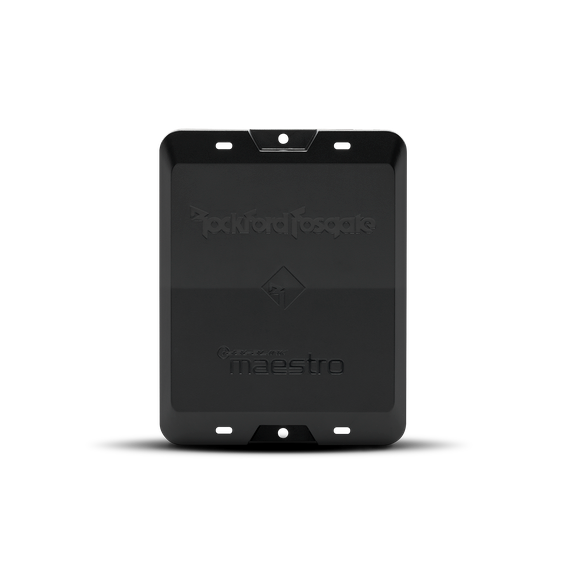

- The DSR1 is the first real solution for replacing the factory amplifier and speakers in Ford and Chrysler vehicles, as the DSR1 uses the full-range, flat audio signal from the factory source unit. After the built-in Maestro interface is flashed with the vehicle-specific firmware, the factory source unit CANbus messages are used to control the internal signal routing of the DSR1. The DSR1 still utilizes the power processor found in our patented 3Sixty.3, but adds an easy to use app for tuning from Apple and Android devices.
PLEASE CALL FOR PRICING.
General Features
- Four Channel Balanced Differential RCA Inputs
- Digital Signal Processing with Integrated Maestro CAN Interface
- 18 Pin Analog Input Harness
- Four Channel High Level Inputs with Signal Sense Turn On
- 245 Bands of Equalization for Aftermarket Tuning
- Adjustable crossovers with selectable slope
- Optional PLC2 Level Controller with Assignable Functions
- Designed for use with Select Maestro Vehicle T-Harnesses
- Micro USB Setup/Update Port
- 16 Pin Analog Output Harness
- Auxiliary RCA and SPDIF Coaxial Inputs
- CE and FCC Compliant
- 1 Year Warranty
- Bluetooth 4.0 Connectivity for convenient setup
- Interactive Tuning Interface Controlled via Android/ iOS APP
- Up 10msec of delay on each channel for Time Alignment
Technologies
CE Compliant
This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).
Tuning Connectivity via Bluetooth
Bluetooth connectivity allows connection to a mobile device for tuning (non audio streaming.)
iDatalink Maestro
The iDatalink Maestro technology is a flashable module that allows vehicle specific firmware to be downloaded to the unit, enabling integration into a factory installed system without the loss of factory equipped controls and features.
DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.
Specifications
- Processor Type
- Digital Processor
- Mounting
- Behind Dash
- Signal Input
- 4 Balanced Differential RCA Inputs
- 4 High-Level Inputs w/ Signal Sense
- 2 AUX RCA Inputs
- SPDIF Coaxial Input
- Operating Voltage
- 9 - 16 VDC
- Input Impedance
- 20k Ohms
- Frequency Response
- 20Hz - 20kHz +/- 0.5dB
- Signal Output
- 8 RCA Outputs
- Output Impedance
- 200 Ohms
- Input Voltage
- Low Level (RCA): up to 4V
- High Level: up to 12.5V
- High Level Turn-On: 4V - 16V
- AUX: up to 2V
- Output Voltage
- up to 4V RMS
- THD+N
- <1.0%
- Gain
- —
- Signal-to-Noise
- RCA: >100 dBA (A-weighted)
- AUX: >100 dBA (A-weighted)
- Digital Signal Processing (DSP)
- Speed: 147 MIPS
- Precision: 32-BIt
- Accumulators: 72-bit
- Digital to Analog (DAC)
- Precision: 24-Bit
- Dynamic Range: 108 dB
- THD+N: -98 dB
- Crossover Type
- High-Pass
- Low-Pass
- Band-Pass
- All-Pass
- Fixed Linkwitz-Riley
- Crossover Frequency
- Variable: 20 Hz to 10 kHz
- Analog to Digital (ADC)
- Precision: 24-Bit
- Dynamic Range: 105 dB
- THD+N: -98 dB
- Crossover Slope
- Selectable Slope:
- 6/12/18/24/30/36/48 dB/Octave
- EQ Frequency Centers
- Channels: Front/Spare/Rear/Sub
- Frequency Bands: 31 per channel
- Smartphone Compatibility
- APPLE: iOS 10.0 or later
- (iPhone, iPad, iPod touch)
- ANDROID: Oreo 8.0 or later
- (optimized for 5-inch screen or larger)
- Smartphone App
- EQ Frequency Controls
- Selectable Q: 0.01 to 10.0
- Shipping Weight
- 0.5 Lbs. (0.22 Kg)
- Dimensions (H x W x D)
- 1.26" x 4.04" x 5.12"
- (32 mm x 102.5 mm x 130 mm)
Support
Knowledge Base Articles
Return Authorization
Contact the Authorized Rockford Fosgate Dealer you purchased this product from. If you need further assistance, call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.
Compatibility
The DSR1 is flexible enough to be operated in Universal Mode or Maestro Mode:
• Universal Mode requires RCA or High-Level inputs and aftermarket amplifier(s).
• Maestro Mode requires vehicle specific T-harness (see below) and aftermarket amplifier(s).
OEM SYSTEM: WITH FACTORY AMP
| Harness | Vehicle Make(s) | Vehicle Coverage | Description |
|---|---|---|---|
| HRN-AR-FO2 | Ford | iDataLink Vehicle Coverage | Amplifier replacement T-harness for select Ford vehicles with 8-inch "My Ford Touch" radio and Sony Amplified system 2011 and up. |
| HRN-AR-FO3 | Ford | iDataLink Vehicle Coverage | Amplifier replacement T-harness for select Ford Mustang trims 2015 and up. |
| HRN-AR-CH2 | Chrysler Dodge Jeep RAM Volkswagen |
iDataLink Vehicle Coverage | Amplifier replacement T-harness for select Chrysler, Dodge, Fiat, Jeep, Ram and Volkswagen vehicles 2007 and up. |
| HRN-AR-CH3 | Chrysler Dodge Fiat Jeep |
iDataLink Vehicle Coverage | Amplifier replacement T-harness for select select Chrysler, Dodge, Fiat and Jeep 2012 and up. |
| HRN-AR-CH4 | Chrysler Dodge Jeep Maserati RAM |
iDataLink Vehicle Coverage | Amplifier replacement T-harness for select Chrysler, Dodge, Jeep, Maserati and Ram vehicles 2016 and up. |
| HRN-AR-TO1 | Lexus Toyota |
iDataLink Vehicle Coverage | Amplifier replacement T-harness for select Lexus and Toyota vehicles 2008 and up. |
| HRN-AR-TO2 | Lexus Subaru Toyota |
iDataLink Vehicle Coverage | Amplifier replacement T-harness for select Toyota, Lexus and Subaru vehicles 2012 and up. |
| HRN-AR-TO3 | Subaru Toyota |
iDataLink Vehicle Coverage | Amplifier replacement T-harness for select Toyota and Subaru vehicles 2005 and up. |
OEM SYSTEM: NO FACTORY AMP
| Harness | Vehicle Make(s) | Vehicle Coverage | Description |
|---|---|---|---|
| HRN-DSP-CH3 | Chrysler Dodge Fiat Jeep RAM |
iDataLink Vehicle Coverage | DSP installation T-harness for select Chrysler, Dodge, Fiat, Jeep and Ram vehicles 2013 and up without factory amplifiers. |
| HRN-DSP-NI1 | Chevrolet infiniti Nissan Subaru |
iDataLink Vehicle Coverage | DSP installation T-harness for select Inifiniti, Nissan and Subaru vehicles without factory amplifiers. |
| HRN-DSP-TO1 | Scion Subaru Toyota |
iDataLink Vehicle Coverage | T-Harness for select Scion, Subaru and Toyota vehicles without factory amplifiers. |
EXTENSION CABLES
| Harness | Vehicle Make(s) | Vehicle Coverage | Description |
|---|---|---|---|
| HRN-AR-EXT2 | Chrysler Dodge Ford Jeep Lexus Maserati RAM Subaru Toyota |
iDataLink Vehicle Coverage | 2-meter amplifier relocation extension harness. |
| HRN-AR-EXT4 | Chrysler Dodge Ford Jeep Lexus Maserati RAM Subaru Toyota |
iDataLink Vehicle Coverage | 4-meter amplifier relocation extension harness. |
Exceptional Sound Quality
