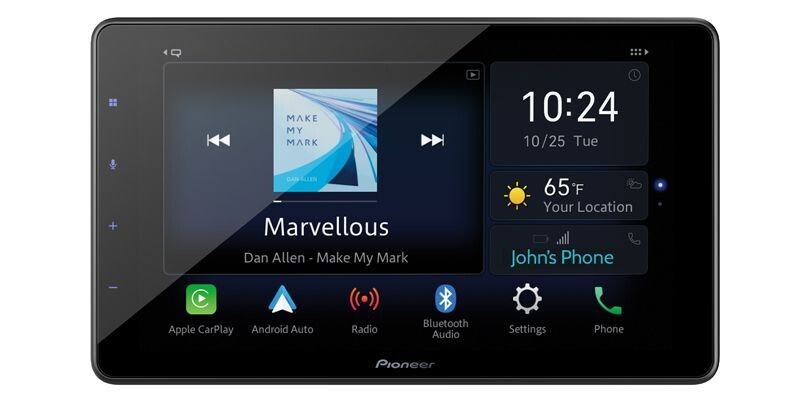

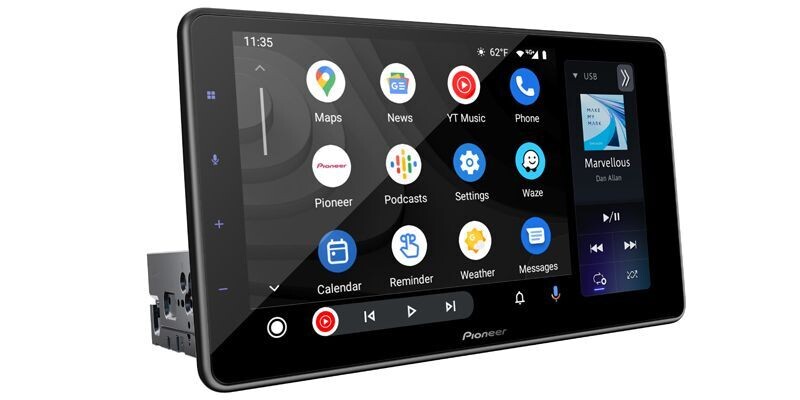

DMH-WT3800NEX
DMH-WT3800NEX
- 9" - Android Auto™, Apple CarPlay®, Bluetooth® - Multimedia Digital Media Receiver

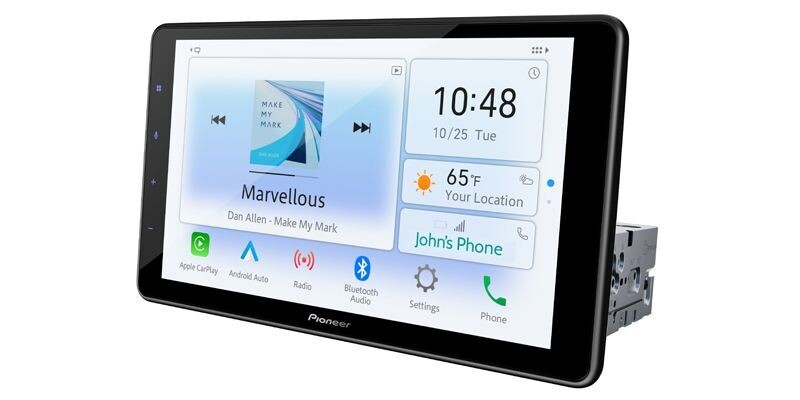

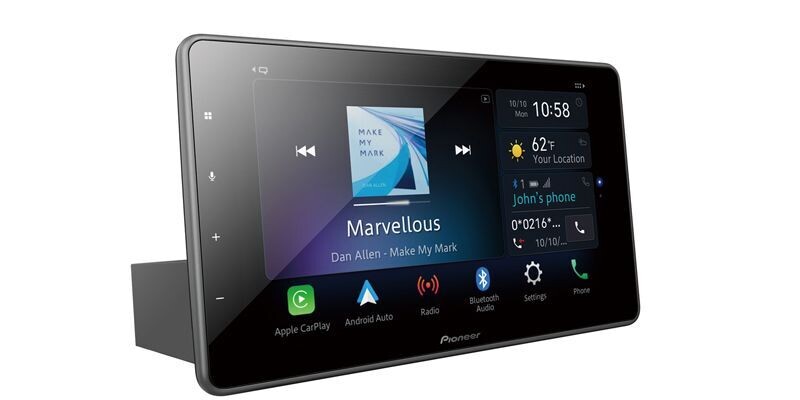

- 9" Floating Display

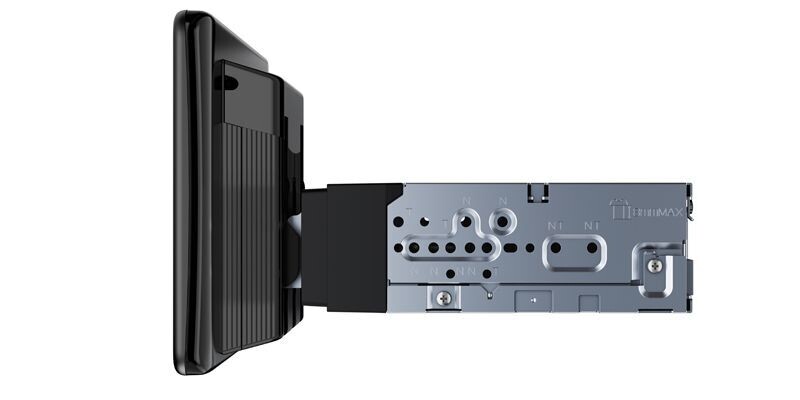

- 1-DIN Chassis

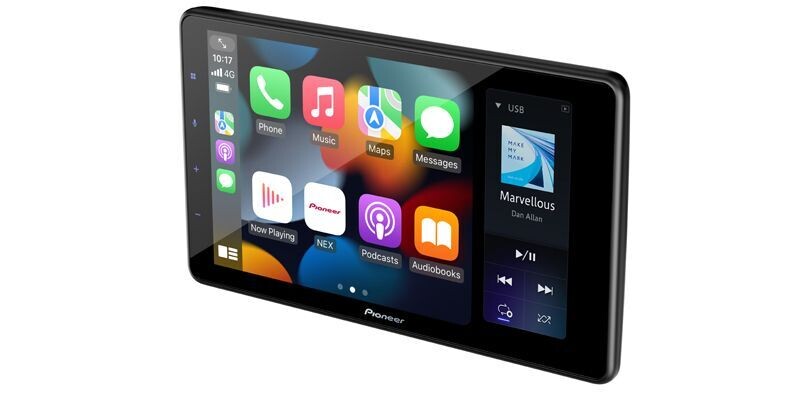

- Apple CarPlay® (Wireless, Wired)

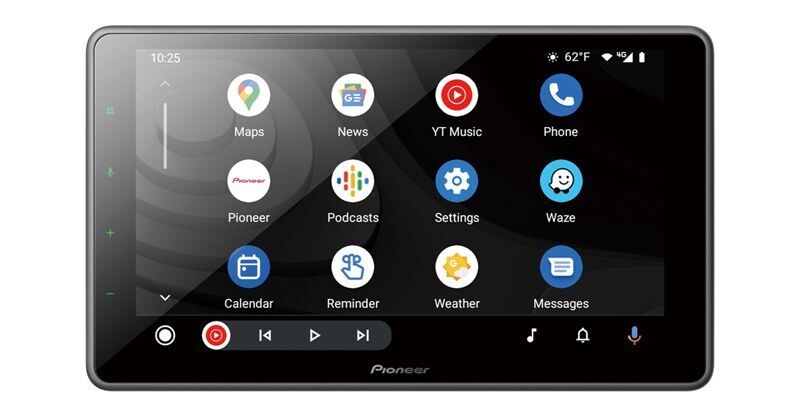

- Android Auto™ (Wireless, Wired)
What’s in the Box
- Touchscreen monitor (rear cover pre-installed)
- Source unit (10 A fuse)
- Wiring harness
- Input/output AV wire harness
- 58” USB-A extension cable
- Bluetooth Microphone w/ bracket 10’ cable 2.5 mm connector
- GPS Antenna (attached 11.5” cable)
- Self-adhesive square
- Self-adhesive clips (3)
- Monitor bracket
- Screen spacer
- Front bracket
- 28 various installation screws
- Quick start guide
- Warranty information
Specifications
STANDARDS
| CTA-2006 | Yes |
PERFORMANCE
| Continuous Power Output | 22 W x 4-Channel |
| Load Impedance Allowance | 4 Ohm (4 Ohm to 8 Ohm Allowable) |
| Max Power Output | 50 W x 4-ch 4 ohm |
| RCA Preamp Outputs | 6-Channel |
| RCA Pre-out | 2V |
| RMS Power Output (CTA-2006) | 14 W RMS x 4-ch 4 ohm |
DISPLAY
| Back Light | LED |
| Brightness Control | Yes |
| Color Customization | 5 display colors, 112 key colors |
| Device (Non-DIN/Modular Unit) | 1-DIN, Floating |
| Dimmer | Automatic with vehicle illumination, Timer Controlled, Manual |
| Display Off Mode | Yes |
| Home Screen Customization | Yes |
| Monitor Mechanism | Adjustable, Floating |
| Resolution | 1024x600 |
| Screen Size/Aspect Ratio | 9"/16:9 |
| Touch Screen | Capacitive |
NAVIGATION
| External GPS Antenna | Yes |
BLUETOOTH
| Advanced Audio Distribution Profile (A2DP) | Yes |
| AVRCP | 1.6 |
| Built-in Bluetooth® | Yes |
| Dual Phone Connection | Yes |
| Hands Free Version | 1.6 |
| Hands-Free | Yes |
| Microphone Included | Included |
| Phone Registration | 5-phone |
| Secure Simple Pairing (SSP) | Yes |
| Serial Port Profile (SPP) | Yes |
TUNER
| Best Station Memory | Yes |
| Hybrid Radio | Yes |
| Local Seek tuning | Yes |
| Presets | 18 FM, 6 AM |
| RDS | Yes |
| SiriusXM-Ready™ (Tuner Sold Separately) | Yes |
INTEGRATION
| Android Auto™ | Wireless Connection or Wired USB Connection |
| Apple® CarPlay | Wireless Connection or Wired USB Connection |
| Mobile Operating System | Android / Apple iOS |
| Music Playback (MTP) | Yes |
| Pandora® | With Apple CarPlay or Android Auto |
| Pioneer App Compatibility | CarAVAssist Android, CarAVAssist iPhone |
| Siri® Eyes Free (VR) (Internet Required) | iPhone Only |
| Spotify | With Apple CarPlay or Android Auto |
| Voice Control | Yes |
| Weblink | 2 |
| WiFi | Tethering, WiFi Hotspot |
DIGITAL MEDIA PLAYBACK
| Audio Playback via USB | MP3 Audio Playback, WMA Audio Playback, WAV Audio Playback (Hi-Res), AAC Audio Playback, FLAC Audio Playback (Hi-Res), DSD Audio Playback (Hi-Res) |
| Audio Video Playback via USB | .avi, .mpg/mpeg, .divx, .mp4, .3gp, .mkv, .flv, .wmv/.asf, .m4v, H.263, H.264, .ts/.m2ts/.mts |
| Image Display via USB | BMP, JPEG, PNG |
AUDIO
| Advanced Sound Retriever | Mode-1/Mode-2/Off |
| Bass Boost | Yes |
| Balance | Yes |
| Built-in Amplifier | MOSFET 50 W x 4 |
| Crossover Network Mode | HPF/Band Pass/LPF |
| Crossover Standard Mode | HPF/LPF |
| Customizable Graphic Equalizer | 13 Band |
| DA Converter | 24 Bit |
| Digital Signal Processor | Built In |
| Dynamic Bass Enhancer | Off/Low/High |
| Easy EQ (EEQ) Preset Equalizer | Yes |
| Fade | Yes |
| Listening Position Selector | Yes |
| Loudness | High/Mid/Low/Off |
| Speaker Output | 4-ch |
| Spectrum Analyzer | Yes |
| Subwoofer Control | Yes |
| Time Alignment | Manual |
EXPANDABILITY
| OEM Integration | iDatalink® Maestro™ - RR, iDatalink® Maestro™ - RR2, Metra Axxess |
| OTA Update Compatible | Yes |
| Parking Assist Lines | Yes |
| RCA Video Output | Yes |
| USB Direct Control for iPhone® | 5s and newer |
INPUTS
| Input 1 | Backup Camera Dedicated |
| Input 2 | AUX (Minijack) |
| Input 3 | A/V or 2nd Camera |
GENERAL
| Detachable Face Security | Fixed |
| Multi-Language Display | English, French, Spanish Portuguese, Chinese (Simplified) |
| Music Browser | USB |
| GPS Antenna | Yes |
| Remote Control | No |
| Steering Wheel Control Ready (Adapter Sold Separately) | Yes |
