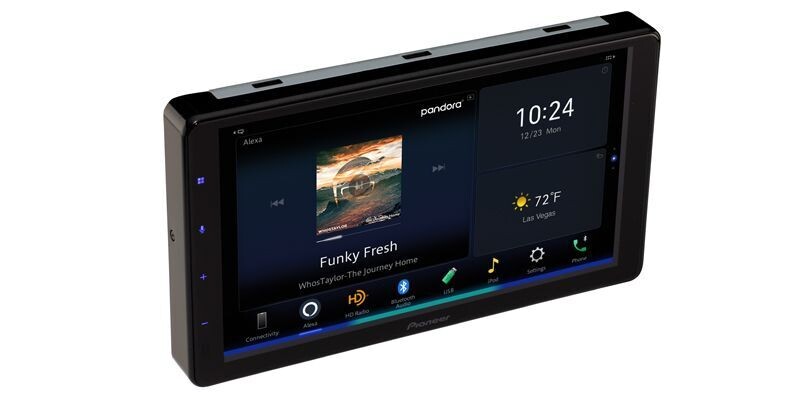

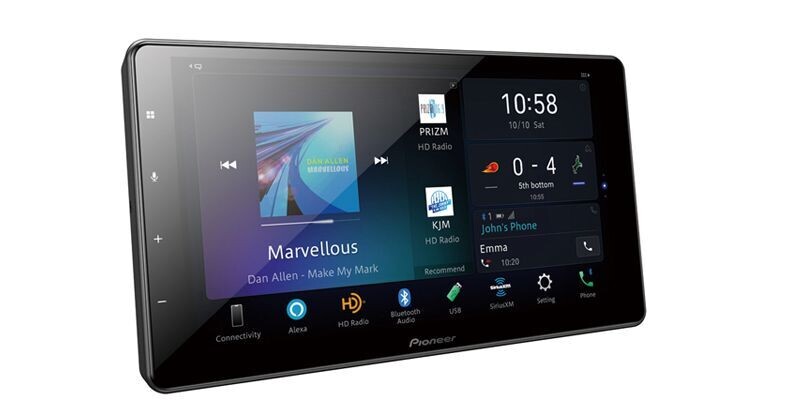

DMH-WC6600NEX
- 9" - Amazon Alexa, Android Auto™, Apple CarPlay™, Bluetooth® - Multimedia Digital Media Receiver
- 9" Modular Display
- 1-DIN Separate Installation Chassis (Hide-away)
- HD Screen
- Amazon Alexa Built-in

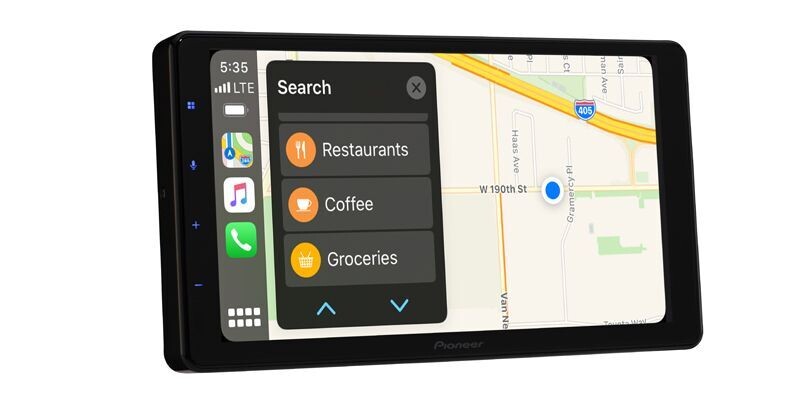

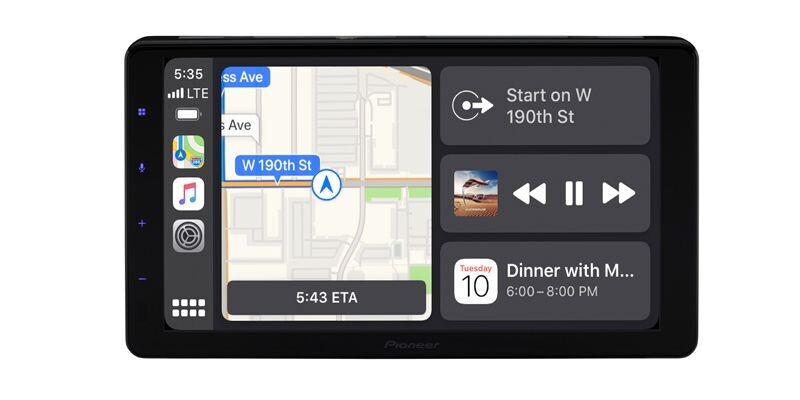

- Apple CarPlay™ (Wired, Wireless)

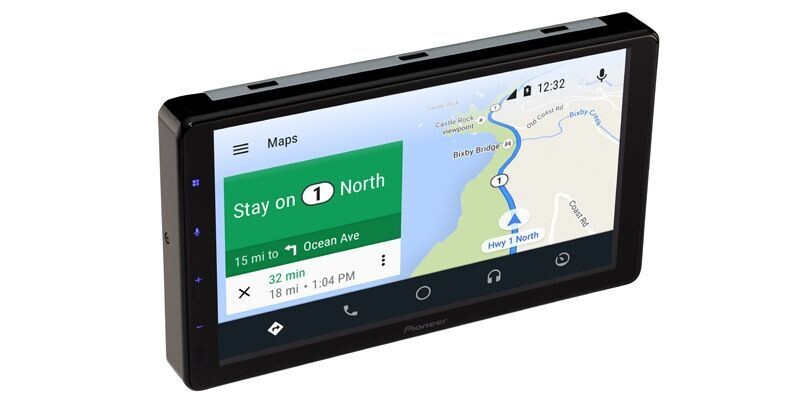

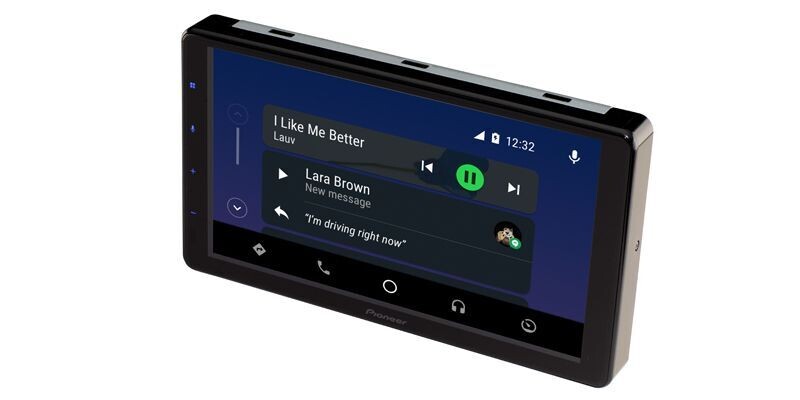

- Android Auto™ (Wired, Wireless)

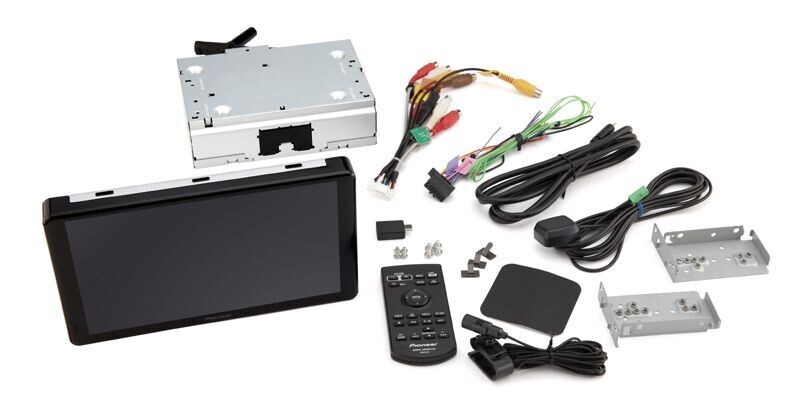

What’s in the Box
- Touchscreen monitor
- Source unit (10A fuse)
- Wiring harness
- Preout/AV harness
- 58" USB-C extension cable
- USB-C to USB-A adapter
- Remote control (CXE5116)
- CR2025 (3)V battery (pre-installed in remote)
- Microphone w/ bracket (attached 10' cable terminated by a right-angle 2.5mm connector)
- GPS antenna (attached 11.5' cable)
- Self-adhesive square
- (3) Self-adhesive clips
- Two-sided tape
- (2) Mounting brackets
- 20 Various Installation Screws
- Quick Start Guide
- Installation Manual
- "About Alexa Built-In" note
- Warranty Information
- "Caution" note
Specifications
STANDARDS
| CTA-2006 | Yes |
| Hi-Res Certified | Yes |
PERFORMANCE
| Continuous Power Output | 22 W x 4-Channel |
| Max Power Output | 50 W x 4-ch 4 ohm / 50 W x 2-ch 4 ohm 70 W X 1-ch (subwoofer) 2 Ohm |
| RCA Preamp Outputs | 6-Channel |
| RCA Pre-out | 4V |
| RMS Power Output (CTA-2006) | 14 W RMS x 4-ch 4 ohm |
DISPLAY
| Back Light | LED |
| Brightness Control | Yes |
| Color Customization | 5 display colors, 112 key colors |
| Device (Non-DIN/Modular Unit) | Modular, Non-DIN |
| Dimmer | Automatic with vehicle illumination, Timer Controlled, Manual |
| Display Off Mode | Yes |
| Home Screen Customization | Yes |
| Monitor Mechanism | Fixed |
| Resolution | HD (1280 x 720) |
| Screen Size/Aspect Ratio | 9"/16:9 |
| Touch Screen | Capacitive |
BLUETOOTH
| Advanced Audio Distribution Profile (A2DP) | Yes |
| AVRCP | 1.6 |
| Built-in Bluetooth® | Yes |
| Dual Phone Connection | Yes |
| Hands-Free | Yes |
| Microphone Included | Included |
| Secure Simple Pairing (SSP) | Yes |
| Serial Port Profile (SPP) | Yes |
TUNER
| Best Station Memory | Yes |
| HD Radio™ | Built In, Aritist experience, Multicasting |
| Hybrid Radio | Yes |
| Local Seek tuning | Yes |
| Presets | 18 FM, 6 AM |
| RDS | Yes |
| SiriusXM-Ready™ (Tuner Sold Separately) | Yes |
INTEGRATION
| Amazon Alexa | Built In |
| Android Auto™ | Wireless Connection or Wired USB Connection |
| Apple® CarPlay | Wireless Connection or Wired USB Connection |
| Gracenote Sports | Yes |
| Mobile Operating System | Android / Apple iOS |
| Music Playback (MTP) | Yes |
| Pandora® | With Apple CarPlay or Android Auto |
| Pioneer App Compatibility | CarAVAssist Android, CarAVAssist iPhone |
| Siri® Eyes Free (VR) (Internet Required) | iPhone Only |
| Spotify | With Apple CarPlay or Android Auto |
| Voice Control | Yes |
| WiFi | Tethering, WiFi Hotspot |
DIGITAL MEDIA PLAYBACK
| Audio Playback via USB | MP3 Audio Playback / WMA Audio Playback / WAV Audio Playback (Hi-Res) / AAC Audio Playback / FLAC Audio / Playback (Hi-Res) / DSD Audio Playback (Hi-Res) |
| Audio Video Playback via USB | .avi / .mpg/mpeg / .divx / .mp4 / .3gp / .mkv / .flv / .wmv/.asf / .m4v / H.263 / H.264 / .ts/.m2ts/.mts |
| Image Display via USB | BMP / JPEG / PNG |
AUDIO
| Bass Boost | Yes |
| Built-in Amplifier | MOSFET 50 W x 4 |
| Crossover Network Mode | HPF/Band Pass/LPF |
| Crossover Standard Mode | HPF/LPF |
| Customizable Graphic Equalizer | 13 Band |
| DA Converter | 24 Bit |
| Digital Signal Processor | Built In |
| Dynamic Bass Enhancer | Off/Low/High |
| Easy EQ (EEQ) Preset Equalizer | Yes |
| Listening Position Selector | Yes |
| Loudness | High/Mid/Low/Off |
| Speaker Output | 4-ch |
| Spectrum Analyzer | Yes |
| Subwoofer Control | Yes |
| Time Alignment | Manual |
EXPANDABILITY
| OEM Integration | iDatalink® Maestro™ - RR, iDatalink® Maestro™ - RR2, Metra Axxess |
| OTA Update Compatible | Yes |
| Parking Assist Lines | Yes |
| RCA Video Output | Yes |
| USB | Rear, Type-C (5 V, 3.0 Amp) |
| USB Direct Control for iPhone® | 5s and newer |
INPUTS
| Input 1 | Backup Camera Dedicated |
| Input 2 | AUX (Minijack) |
| Input 3 | A/V or 2nd Camera |
| Input 4 | HDMI Micro (Type D) |
GENERAL
| Detachable Face Security | Fixed |
| Multi-Language Display | English, French, Spanish Portuguese, Chinese (Simplified) |
| GPS Antenna | Yes |
| Remote Control | Included |
| Steering Wheel Control Ready (Adapter Sold Separately) | Yes |
