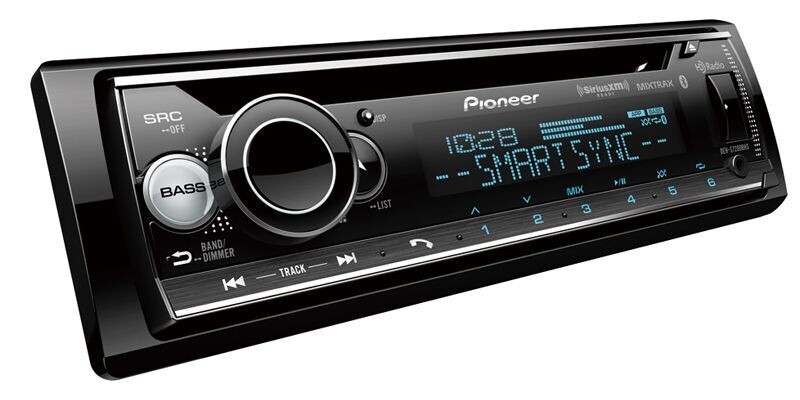

DEH-S7200BHS
DEH-S7200BHS
- In-dash - Amazon Alexa, Pioneer Smart Sync App, Bluetooth®, Android™, iPhone®, HD Radio™ - Audio CD Receiver
- Alexa Built-in When Paired with Pioneer Smart Sync App
- Built-In Bluetooth® for Hands-Free Calling and Wireless Audio Streaming
- Built-in HD Radio™
- Spotify®, Works with Pandora®, SiriusXM- Ready™
- 3 pairs of Hi-Volts Preouts
- Notice: Pioneer Smart Sync App v4.5 available now
- Notice: Connection to Spotify app on Android
PLEASE CALL FOR PRICING.
What’s in the Box
- CD receiver (10A fuse)
- Face (attached)
- Trim-ring (installed)
- Sleeve (installed)
- Wiring harness
- Microphone w/ bracket (attached 10' cable terminated by a right-angle 2.5mm connector)
- Face Locking Screw
- 10 Installation Screws
- 2 Removal tools
- Owner's Manual
- 1 Year Warranty Sheet
Specifications
STANDARDS
| CTA-2006 | Yes |
PERFORMANCE
| Continuous Power Output | 22 W x 4-Channel |
| Max Power Output | 50 W x 4-ch 4 ohm / 50 W x 2-ch 4 ohm 70 W X 1-ch (subwoofer) 2 Ohm |
| RCA Pre-out | 4V |
| Load Impedance Allowance | 4 Ohm (4 Ohm to 8 Ohm Allowable) |
| RCA Preamp Outputs | 6-ch |
|
|
14 W RMS x 4-ch 4 ohm |
DISPLAY
| Back Light | LED |
| Color Customization | 210000 Colors, dual zone |
|
|
VA LCD (2-Line) |
| Brightness Control | Yes |
| Device (Non-DIN/Modular Unit) | 1-DIN |
| Dimmer | Automatic with vehicle illumination, Timer Controlled, Manual |
BLUETOOTH
|
|
Yes |
|
|
Yes |
| Hands Free Version | 1.6 |
|
|
Included |
| Secure Simple Pairing (SSP) | Yes |
| Sound Retriever Air | Mode 1/Mode 2/Off |
| AVRCP | 1.6 |
| Dual Phone Connection | Yes |
| Hands-Free | Yes |
| Phone Registration | 5-phone |
|
|
Yes |
TUNER
| Best Station Memory | Yes |
| Local Seek tuning | Yes |
| RDS | Yes |
| HD Radio™ | Built In / Multicasting |
| Presets | 18 FM, 6 AM |
|
|
Yes |
INTEGRATION
| Amazon Alexa | Paired with Pioneer Smart Sync |
|
|
Source through iPhone/Android |
|
|
iPhone Only |
| Voice Control | Yes |
| Mobile Operating System | Android / Apple iOS |
| Pioneer App Compatibility | Pioneer Smart Sync Android, Pioneer Smart Sync iPhone |
| Spotify | Streaming audio through iPhone/Android via Bluetooth or AUX input |
DIGITAL MEDIA PLAYBACK
| Audio Playback via CD | AAC Audio Playback / MP3 Audio Playback / WAV Audio Playback / WMA Audio Playback |
| Audio Playback via USB | MP3 Audio Playback / WMA Audio Playback / AAC Audio Playback / FLAC Audio Playback (Hi-Res) / WAV Audio Playback (Hi-Res) |
AUDIO
| Advanced Sound Retriever | Mode-1/Mode-2/Off |
| Balance | Yes |
| Crossover Network Mode | HPF/Band Pass/LPF |
| Customizable Graphic Equalizer | 13 Band, 31 Band with Pioneer Smart Sync app |
|
|
Built In |
| Easy EQ (EEQ) Preset Equalizer | Yes |
|
|
Yes |
| MIXTRAX® | Yes |
| Speaker Output | 4-ch |
| Subwoofer Control | Yes |
| Auto EQ (CD-MC20 Microphone sold separately) | Yes |
| Built-in Amplifier | MOSFET 50 W x 4 |
| Crossover Standard Mode | HPF/LPF |
| DA Converter | 24 Bit |
| Dynamic Bass Enhancer | Off/Low/High |
| Fade | Yes |
| Loudness | High/Mid/Low/Off |
|
|
Yes |
| Spectrum Analyzer | Yes |
| Time Alignment | Manual |
EXPANDABILITY
| USB | Front Type-A (5V, 1-1/2 A) |
| USB Direct Control for iPhone® | 5s and newer |
INPUTS
| Input 1 | AUX (Minijack) |
GENERAL
| Detachable Face Security | Full |
| Music Browser | USB / With Smart Sync App |
| Rotary Volume Control | Yes |
| Multi-Language Display | English, French, Spanish |
| Remote Control | Optional |
|
|
Yes |
