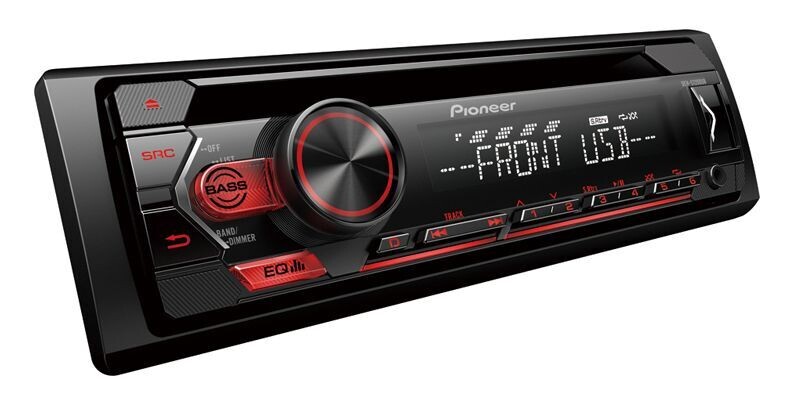

DEH-S1200UB
DEH-S1200UB
- In-dash - Pioneer ARC App, USB Control - Audio CD Receiver
- Android™ Compatibility
- Smartphone Control (Android)
- MOSFET 50W x 4
- MIXTRAX®
PLEASE CALL FOR PRICING.
What’s in the Box
- CD receiver (10A fuse)
- Face (attached)
- Sleeve (installed)
- Trim ring (installed)
- Wiring harness
- Wireless remote control (CXE9606)
- CR2025 Lithium battery (installed)
- 2 Removal tools
- 8 Variouse Installation Screws
- Quick Start Guide
- 1 Year Warranty Sheet
Specifications
STANDARDS
CTA-2006 | Yes |
PERFORMANCE
Continuous Power Output | 22 W x 4-Channel |
Load Impedance Allowance | 4 Ohm (4 Ohm to 8 Ohm Allowable) |
Max Power Output | 50 W x 4-ch 4 ohm / 50 W x 2-ch 4 ohm 70 W X 1-ch (subwoofer) 2 Ohm |
RCA Preamp Outputs | 2-ch |
RCA Pre-out | 2V |
RMS Power Output (CTA-2006) | 14 W RMS x 4-ch 4 ohm |
DISPLAY
Back Light | LED |
Color Customization | Fixed |
|
VA LCD (2-Line) |
Brightness Control | Yes |
Device (Non-DIN/Modular Unit) | 1-DIN |
Dimmer | Timer Controlled, Manual |
TUNER
Best Station Memory | Yes |
Presets | 18 FM, 6 AM |
Local Seek tuning | Yes |
RDS | Yes |
INTEGRATION
Mobile Operating System | Android - Wired |
Pioneer App Compatibility | ARC Android OS version 4.1 to 7.1.2 |
Music Playback (MTP) | Yes |
DIGITAL MEDIA PLAYBACK
Audio Playback via CD | MP3 Audio Playback / WAV Audio Playback / WMA Audio Playback |
Audio Playback via USB | MP3 Audio Playback / WMA Audio Playback / FLAC Audio Playback (Hi-Res) / WAV Audio Playback (Hi-Res) |
AUDIO
Advanced Sound Retriever | Mode-1/Mode-2/Off |
Balance | Yes |
Crossover Standard Mode | HPF/LPF |
DA Converter | 24 Bit |
Easy EQ (EEQ) Preset Equalizer | Yes |
Loudness | High/Mid/Low/Off |
Subwoofer Control | Yes |
Bass Boost | Yes |
Built-in Amplifier | MOSFET 50 W x 4 |
Customizable Graphic Equalizer | 5 Band |
Digital Signal Processor | Built In |
Fade | Yes |
Speaker Output | 4-ch |
EXPANDABILITY
USB | Front Type-A (5V, 1-1/2 A) |
INPUTS
Input 1 | AUX (Minijack) |
GENERAL
Detachable Face Security | Full |
Music Browser | USB |
Rotary Volume Control | Yes |
Multi-Language Display | English, French, Spanish |
Remote Control | Included |
How To - Pioneer DEH-S1200UB - Initial and System Setup |
How To - Pioneer DEH-S1200UB - Wireless Remote Control |
How To - Pioneer DEH-S1200UB - Detachable Face Security |
How To - Pioneer DEH-S1200UB - Turn Off Demo Mode |
How To - Pioneer DEH-S1200UB - Dimmer and Illumination |
How To - Pioneer DEH-S1200UB - Subwoofer Settings |
How To - Pioneer DEH-S1200UB - Audio Settings |
How To - Pioneer DEH-S1200UB - AUX Input |
How To - Pioneer DEH-S1200UB - AM/FM Radio Tuner |
How To - Pioneer DEH-S1200UB - MP3 and FLAC Music from USB |
How To - Pioneer DEH-S1200UB - Set the Clock |
Pioneer DEH-S1200UB - Whats in the Box |
How To - Pioneer DEH-S1200UB - Equalizer Settings |
How To - ARC App for Android Phone |
Understanding Pioneer Wire Harness Color Codes |
MANUALS / WARRANTY
