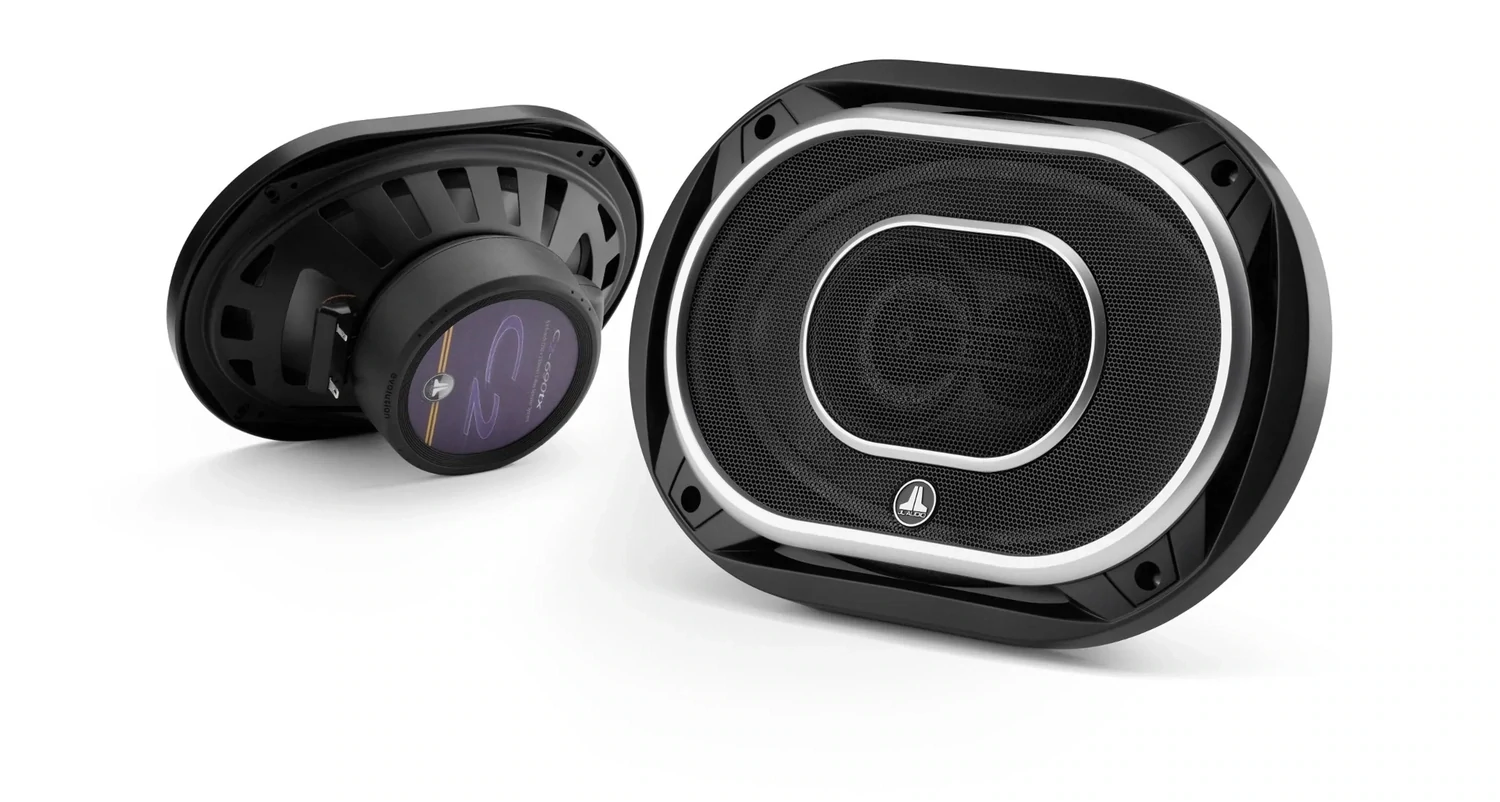

C2-690TX
C2-690TX
- 6 x 9-inch (150 x 230 mm) 3-Way Coaxial Speaker System
PLEASE CALL FOR PRICING.
General Features
The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.
The C2-690tx system features 6 x 9-inch (150 x 230 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The 6 x 9-inch (150 x 230 mm) format is a direct fit in many vehicles.
The Mid-Range driver is ferrofluid-cooled, with a 2-inch Mylar® cone diaphragm to smoothly bridge the gap between the woofer and the dome tweeter.
Tweeters are mounted next to the mid-range driver and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.
Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Dynamic
Sold as a pair.
Specifications
| Continuous Power Handling (RMS) | 70 W |
| Recommended Amplifier Power (RMS) | 15 - 125 W / Ch. |
| System Efficiency | 93 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 53 Hz - 22 KHz ± 3 dB |
| Frame Outer Diameter* (A) | 6.40 x 9.33 in / 163 x 237 mm |
| Grille Tray Outer Diameter (B) | 6.75 x 9.63 in / 172 x 245 mm |
| Motor Outer Diameter (C) | 3.94 in / 100 mm |
| Frontal Coaxial Tweeter Protrusion** (D) | 0.75 in / 19 mm |
| Frontal Grille Protrusion*** (E) | 0.98 in / 25 mm |
| Mounting Hole Diameter (F) | N/A |
| Mounting Depth (G) | 3.06 in / 78 mm |
| *Does not take into account mounting tabs |
|
Technology
Silk Dome Tweeter
Summary:
Light, fast moving silk dome material promotes high-frequency accuracy.
Detailed Information:
Silk is a natural material with inherently good characteristics as a tweeter diaphragm. In addition to being very light in weight, silk exhibits excellent damping properties, which reduces ringing and resonances in the tweeter’s passband, leading to a smooth, pleasing high-frequency character free from unnatural sibilance or exaggerated brightness. Compared to a harder material dome, a silk tweeter does not exhibit as much ultra-high frequency extension, but is preferred by many audiophiles for its overall balance.
Support
Download C2-690tx Product Manual
USA Limited Warranty: One (1) year from the original date of purchase Warranty Details
