Product Details

C2-650

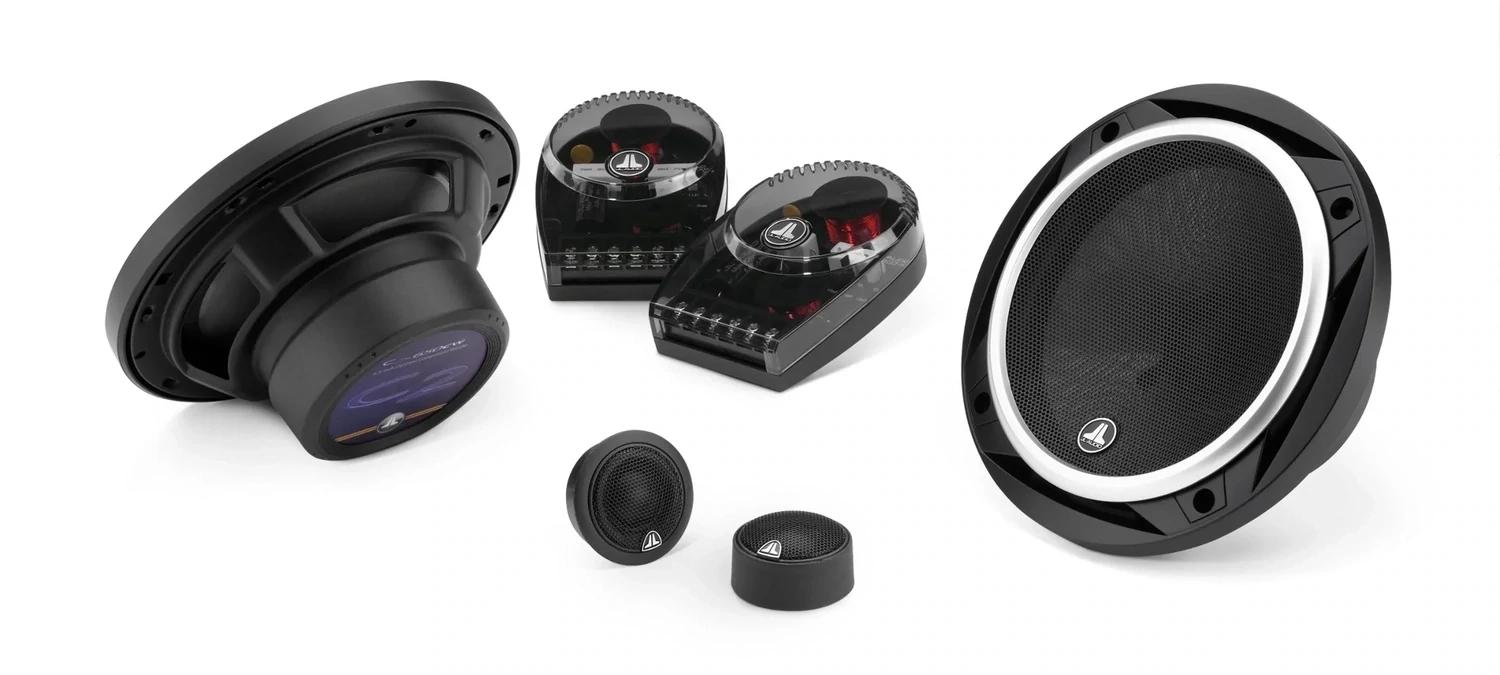

  • 6.5-inch (165 mm) Convertible Component/Coaxial Speaker System

PLEASE CALL FOR PRICING.

General Features
The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and long linear excursion woofer designs.
The C2-650 system features 6.5-inch (165 mm) component woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The 6.5-inch (165 mm) format is a direct fit in many vehicles. Multiple mounting patterns are provided on the woofer frame for easy installation into most vehicles that accept a 6.5-inch (165 mm) speaker.
The C2 component tweeters are built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs.
C2 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Three levels of tweeter attenuation are provided, as well as a tweeter protector.
Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Dynamic
Sold as a pair.
Specifications
Continuous Power Handling (RMS) 60 W
Recommended Amplifier Power (RMS) 15 - 100 W / Ch.
System Efficiency 91.0 dB @ 1 W / 1 m
System Nominal Impedance 4 Ω
System Frequency Response 59 Hz - 22 KHz ± 3 dB
Crossover Physical Specifications
Lineart Top-View and Side-View of C2-XO Coaxial Speaker with Height (H), Width (W) and Depth (D) dimension labels
Width (W) 3.36 in / 85 mm
Height (H) 1.44 in / 37 mm
Depth (D) 4.72 in / 120 mm
Tweeter Physical Specifications
Lineart Side-View of flush mounting and surface mounting options for C2-075ct Tweeter with physical specification dimension labels
Flush Mount Fixture Diameter (A1) 1.87 in / 48 mm
Surface Mount Fixture Diameter (A2) 1.69 in / 43 mm
Flush Mount Mounting Hole Diameter (B) 1.625 in / 41 mm
Flush Mount Mounting Depth (C) 0.76 in / 19 mm
Flush Mount Tweeter Frontal Protrusion (D1) 0.29 in / 7 mm
Surface Mount Tweeter Frontal Protrusion (D2) 0.92 in / 23 mm
Woofer Physical Specifications
Lineart Bottom-View and Side-View of C2-650 Component Speaker with dimension labels A-G
Frame Outer Diameter* (A) 6.5 in / 165 mm
Grille Tray Outer Diameter (B) 6.84 in / 174 mm
Motor Outer Diameter (C) 3.15 in / 80 mm
Frontal Coaxial Tweeter Protrusion (D) N/A
Frontal Grille Protrusion** (E) 0.85 in / 22 mm
Mounting Hole Diameter (F) 5.56 in / 141 mm
Mounting Depth (G) 2.44 in / 62 mm

*Does not take into account mounting tabs
**Frontal grille protrusion measured from mounting surface
Technology

Silk Dome Tweeter

Summary:
Light, fast moving silk dome material promotes high-frequency accuracy.

Detailed Information:
Silk is a natural material with inherently good characteristics as a tweeter diaphragm. In addition to being very light in weight, silk exhibits excellent damping properties, which reduces ringing and resonances in the tweeter’s passband, leading to a smooth, pleasing high-frequency character free from unnatural sibilance or exaggerated brightness. Compared to a harder material dome, a silk tweeter does not exhibit as much ultra-high frequency extension, but is preferred by many audiophiles for its overall balance.

Support

Download C2-650 Product Manual

USA Limited Warranty: One (1) year from the original date of purchase Warranty Details
