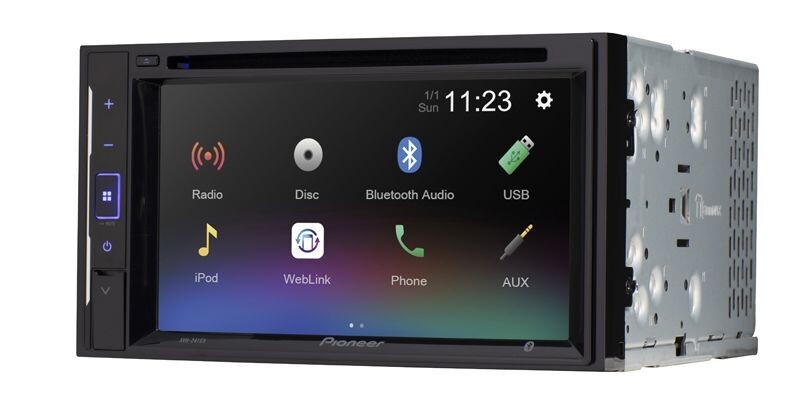

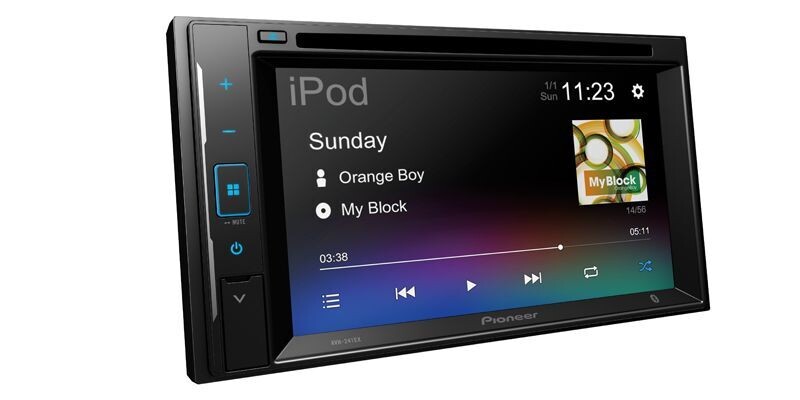

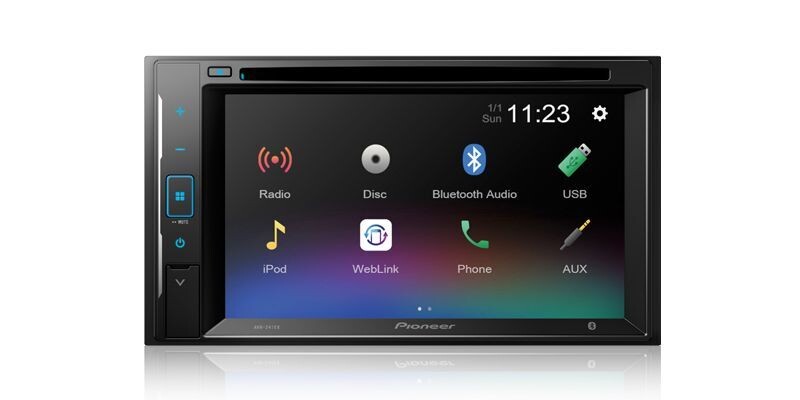

AVH-241EX
AVH-241EX
- 6.2"- Resistive Touchscreen, Amazon Alexa Built-in when Paired with Pioneer Vozsis App, Bluetooth® Back Up Camera Ready - DVD Receiver
- 6.2" WVGA Resistive Touchscreen
- Amazon Alexa Built-in when Paired with Pioneer Vozsis App
- Smartphone Compatible
- Built-in Bluetooth®
- Back-up Camera Ready

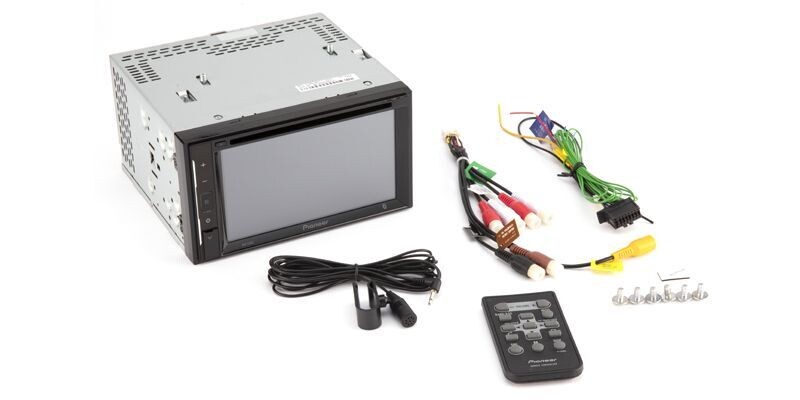

What’s in the Box
- DVD Receiver
- Wiring harness
- Remote control
- Wired Microphone for Bluetooth Hands-Free Phone Calls
- (6) Flat-head ISO-mount screws
- (6) Pan-head ISO-mount screws
- Installation Manual
- Quick Start Guide
- 1 Year Warranty Sheet
Specifications
STANDARDS
| CTA-2006 | Yes |
PERFORMANCE
| Continuous Power Output | 22 W x 4-Channel |
| Max Power Output | 50 W x 4-ch 4 ohm |
| RCA Pre-out | 2V |
| Load Impedance Allowance | 4 Ohm (4 Ohm to 8 Ohm Allowable) |
|
|
5-ch |
| RMS Power Output (CTA-2006) | 14 W RMS x 4-ch 4 ohm |
DISPLAY
| Back Light | LED |
| Color Customization | 3 Preset Background Images / Fixed Color - Blue |
| Dimmer | Automatic with vehicle illumination, Manual |
| Monitor Mechanism | Fixed |
| Screen Size/Aspect Ratio | 6.2"/16:9 |
| Brightness Control | Yes |
|
|
2-DIN |
| Display Off Mode | Yes |
| Resolution | WVGA (800 x 480) |
| Touch Screen | Resistive |
BLUETOOTH
|
|
Yes |
|
|
Yes |
| Hands-Free | Yes |
| Phone Registration | 5-phone |
|
|
Yes |
| AVRCP | 1.6 |
| Hands Free Version | 1.6 |
| Microphone Included | Included |
|
|
Yes |
|
|
Yes |
TUNER
| Best Station Memory | Yes |
| Presets | 18FM 12AM |
| RDS | Yes |
| Local Seek tuning | Yes |
| PS (Preset Scan) | Hide or display radio station name |
INTEGRATION
| Amazon Alexa | Paired with Pioneer Vozsis |
| Pandora® | Bluetooth Audio Source |
|
|
iPhone Only |
| Voice Control | Yes |
| Mobile Operating System | Android / Apple iOS |
| Pioneer App Compatibility | Vozsis Android, Vozsis iPhone |
| Spotify | Bluetooth Audio Source |
| Weblink | 2.0 |
DIGITAL MEDIA PLAYBACK
| Audio Playback via USB | AAC Audio Playback / FLAC Audio Playback (Hi-Res) / MP3 Audio Playback / WAV Audio Playback (Hi-Res) / WMA Audio Playback |
| Audio Video Playback via USB | avi / .mpg/mpeg / .mp4 / .mkv / .mov / .flv / .m4v / .ts/.m2ts/.mts / H.263 / H.264 |
|
|
AVI Audio Video Playback / DVD Audio Video Playback / DivX Audio Video Playback |
AUDIO
| Balance | Yes |
|
|
HPF/LPF |
|
|
24 Bit |
|
|
Yes |
| Loudness | High/Mid/Low/Off |
| Subwoofer Control | Yes |
| Built-in Amplifier | MOSFET 50 W x 4 |
| Customizable Graphic Equalizer | 13 Band |
| Digital Signal Processor | Built In |
| Fade | Yes |
| Speaker Output | 4-ch |
EXPANDABILITY
| RCA Video Output | Yes |
|
|
5s and newer |
| USB | Single Rear Type-A (5V, 1-1/2 A) |

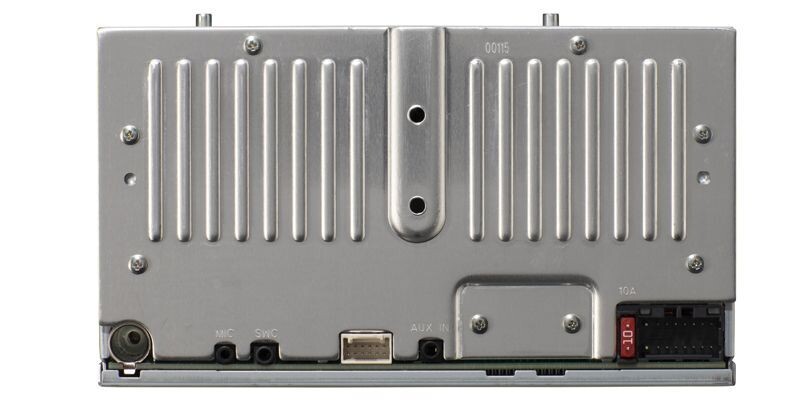

INPUTS
| Input 1 | Backup Camera Dedicated |
|
|
AUX (Minijack) |
GENERAL
| Detachable Face Security | Fixed |
| Music Browser | USB |
|
|
Yes |
| Multi-Language Display | English, French, Spanish Portuguese, Chinese (Simplified) |
|
|
Included |
KNOWLEDGEBASE
| How To - Display Off - Pioneer AVH-EX Video Receivers 2021 |
How To - Understanding Pioneer Wire Harness Color Codes AV |
| How To - Simple Microprocessor Reset - Pioneer AVH-EX Video |
How To - Set the Clock - Pioneer AVH-EX Video Receivers 2021 |
| How To - Dimmer Settings - Pioneer AVH-EX Video Receivers |
Pioneer ND-BC8 - What's in the Box |
| Pioneer AVH-241EX - Whats in the Box |
