Product Details

46CXA6605

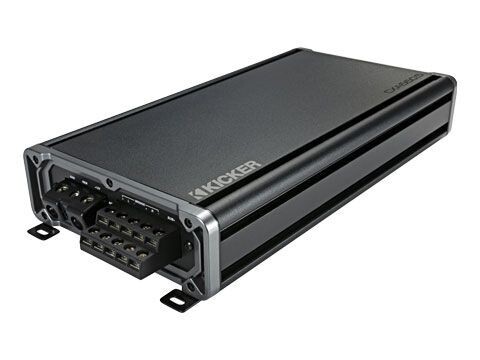

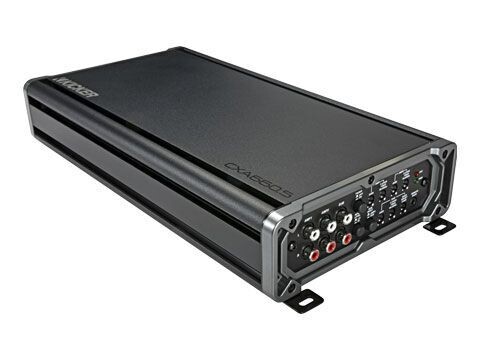

  • CX660.5 5-Channel Amplifier
    • The CXA660.5 Amplifier is built to be the complete package in one cool-looking amp. This CX amplifier uses powerful Class A/B technology to power four mid/high-range channels and an ultra-efficient Class D power plant for the bass channel. The amp also comes equipped with FIT+™ (Fail-safe Integration Technology-PLUS), giving you superior clarity and dependability. KickEQ™ variable bass boost gives you as much as a 6dB of extra bump. A powerful 12dB crossover and 24dB subsonic filter is also included, letting you quickly tune your entire system to taste. From your dash, a simple turn of the optional CXARC Remote Bass Controller (sold separately) increases your output to fit your choice of music. This CX amplifier delivers as much as 90 watts into four full-range channels or 180 watts into two-bridged channels, plus as much as 300 watts into one bass channel. See below for more details.

PLEASE CALL FOR PRICING.

General Features
  • Class A/B full-range channels
  • Class D bass channel included for one amp to run an entire system
  • Three-second turn-on/off delay to eliminate unwanted interference
  • Variable 12dB crossovers provides control to dial in perfect sound
  • KickEQ™ 6dB variable bass boost for those additional low frequencies
  • 24dB subsonic filter for protection from potentially damaging frequencies
  • FIT+™ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
  • Accepts up to 40-volt input signal
  • Small footprint for easier installation
  • Vertical mounting hardware included for another unique look
Specifications
MODEL
CXA660.5
Power (watts/ch) 4 Ohm Stereo
65x4
Power (watts/ch) 2 Ohm Stereo
90x4
Power (watts/ch) 4 Ohm Stereo
180x2
Power (watts/ch) 4 Ohm Mono Sub Ch
150x1
Power (watts/ch) 2 Ohm Mono Sub Ch
300x1
CXRC Remote Bass Capable (sold sep.)
yes
Dimensions (in, cm): (all models 2-3/8, 5.9H x 6-3/4, 17 W x ...L)
14-1/8, 35.7
Frequency Response (Hz):
10Hz-20kHz
Frequency Response (Hz – Sub Ch.):
25Hz-200Hz
Input Sensitivity:
125mV–5V (Low Level)
1V–40V (High Level)
Signal-to-Noise Ratio:
90dB
Active Crossover:
Amp 1-2: High Pass 10-200Hz @ 12dB/Octave
Sub Channel: Low Pass 50-200Hz @ 12dB/Octave
Subsonic Filter:
25Hz @24dB/Octave
KickEQ™ Boost
Variable 0-6dB @40Hz
Warranty
When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of TWO (2) YEARS from date of original purchase. - Complete warranty information here.
Support

Manuals

CXA660.5 | Multilingual | Download

Power Chart | Download
